Power Distribution Schematics

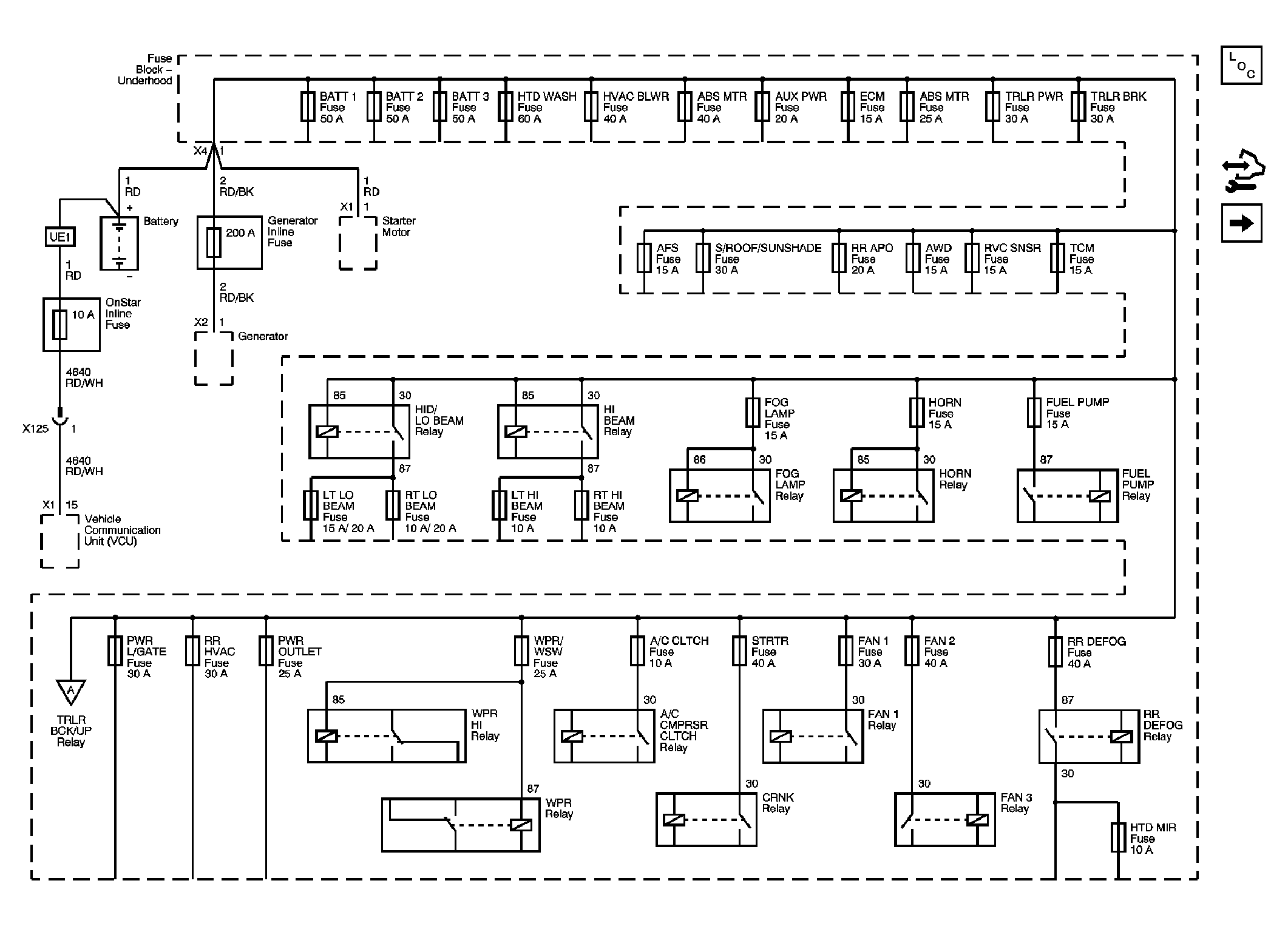

Fig 1: B+ Bus - Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

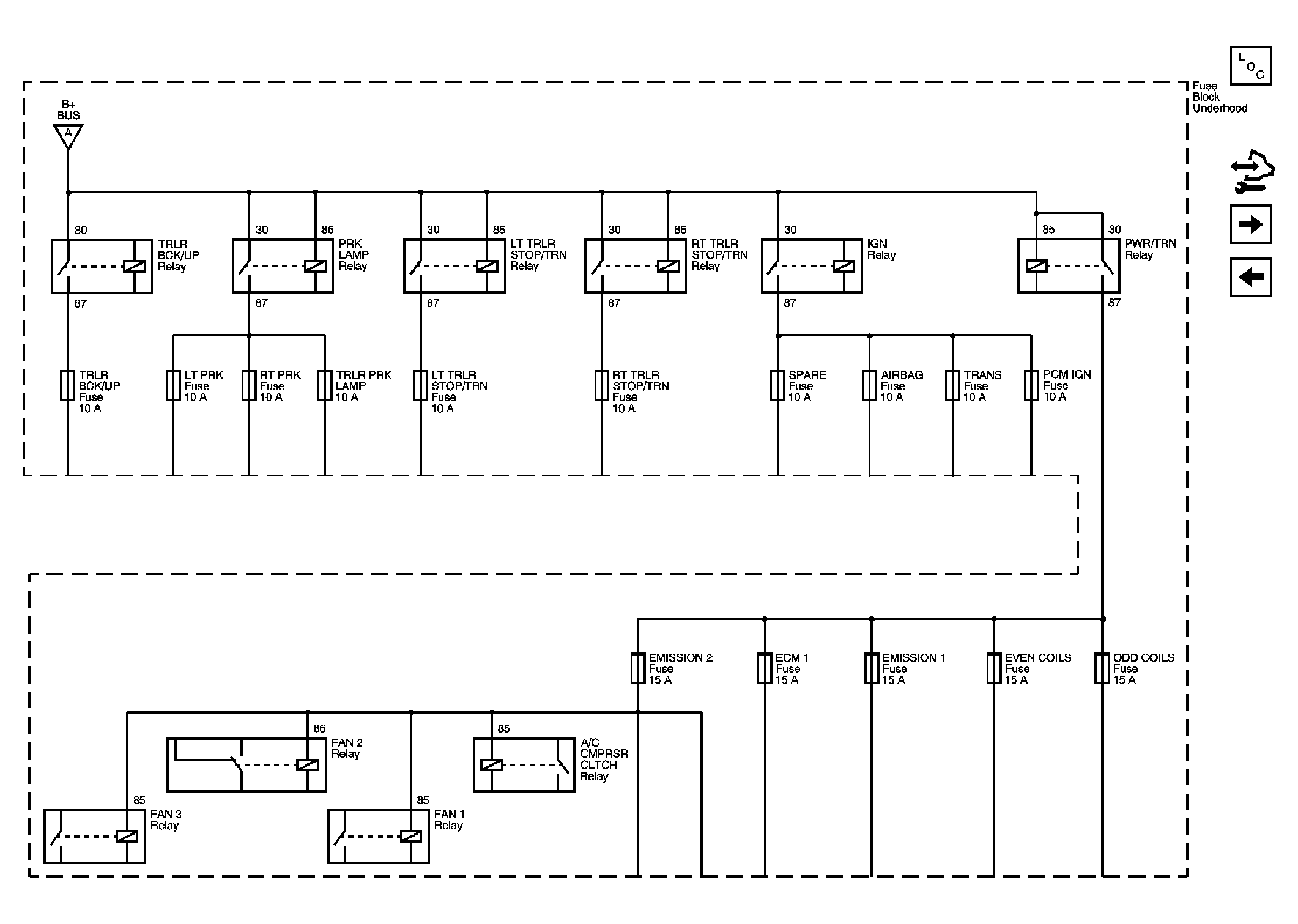

Fig 2: B+ Bus - Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.

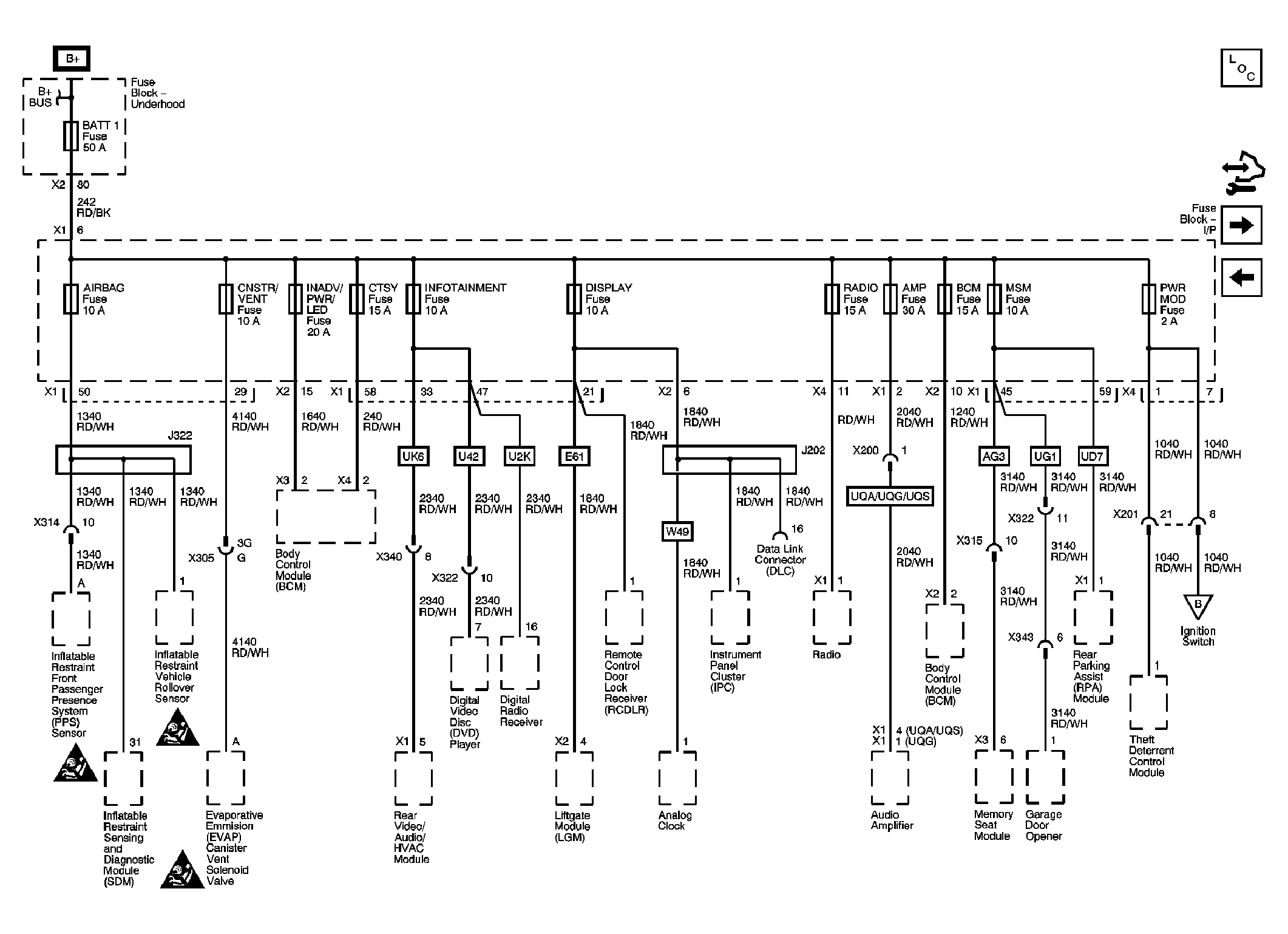

Fig 3: AIRBAG, AMP, BATT 1, BCM, CNSTR/VENT, CSTY, DISPLAY, INADV/PWR/LED, INFOTAINMENT, MSM, POWER MOD, And RADIO Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

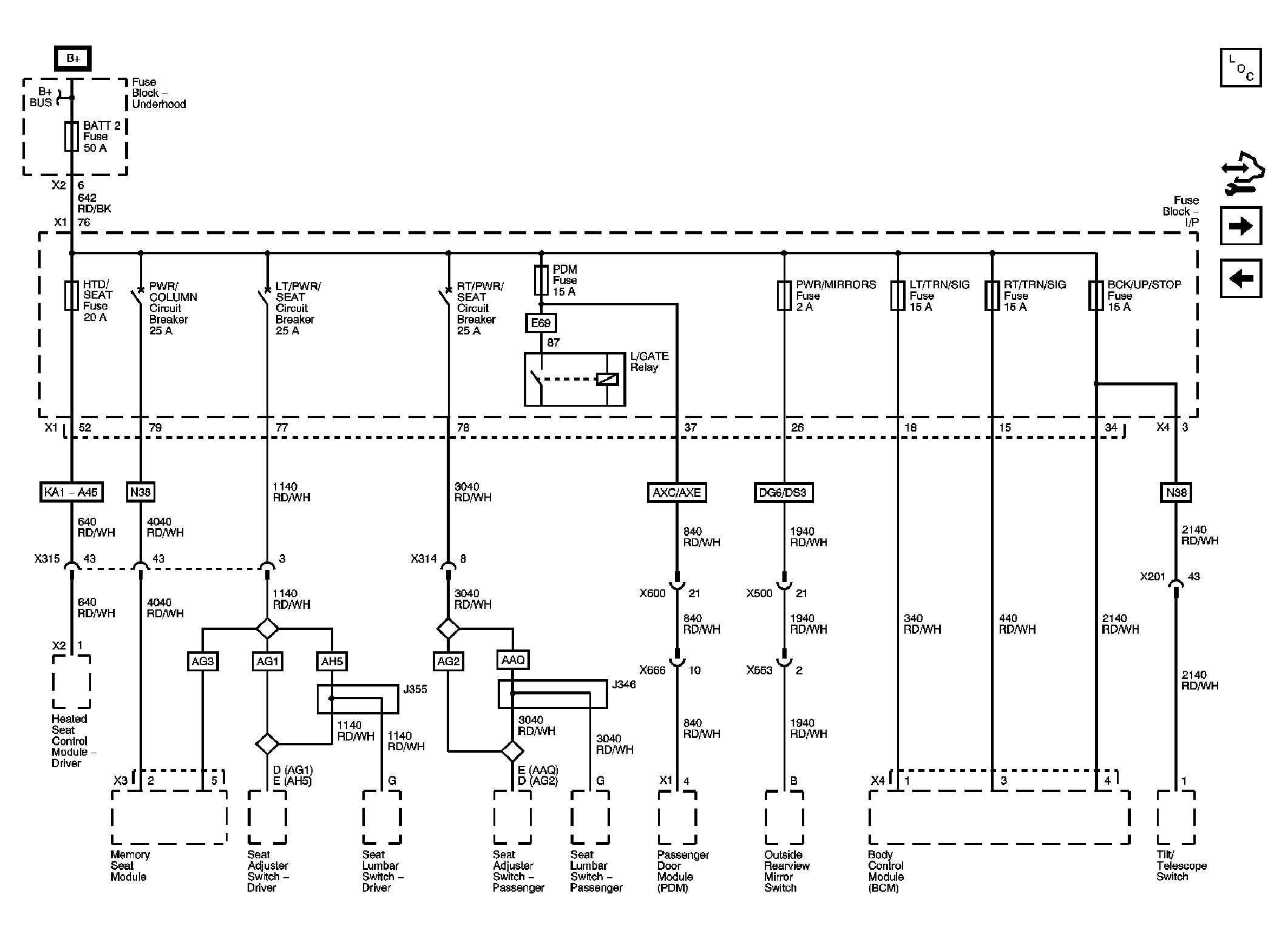

Fig 4: BATT 2, BCK/UP/STOP, HTD/SEAT, LT/TRN/SIG, PDM, PWR/MIRRORS, And RT/TRN/SIG Fuses, LT/PWR/SEAT, PWR/COLUMN, And RT/PWR/SEAT Circuit Breakers - Schematic

Courtesy of GENERAL MOTORS CORP.

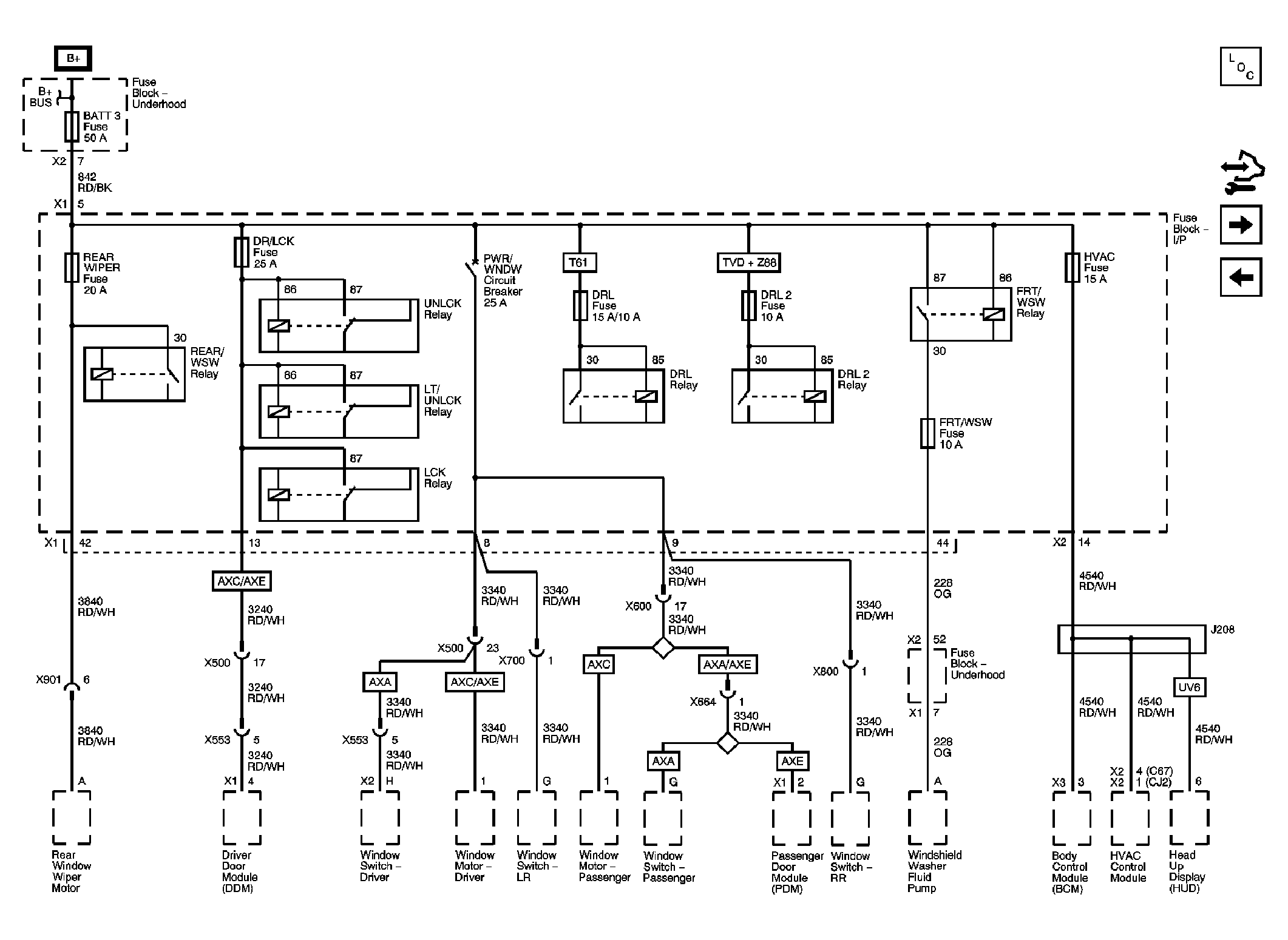

Fig 5: BATT 3, DRL, DRL 2, DR/LCK, FRT/WSW, HVAC, And REAR WIPER Fuses, PWR/WNDW Circuit Breaker - Schematic

Courtesy of GENERAL MOTORS CORP.

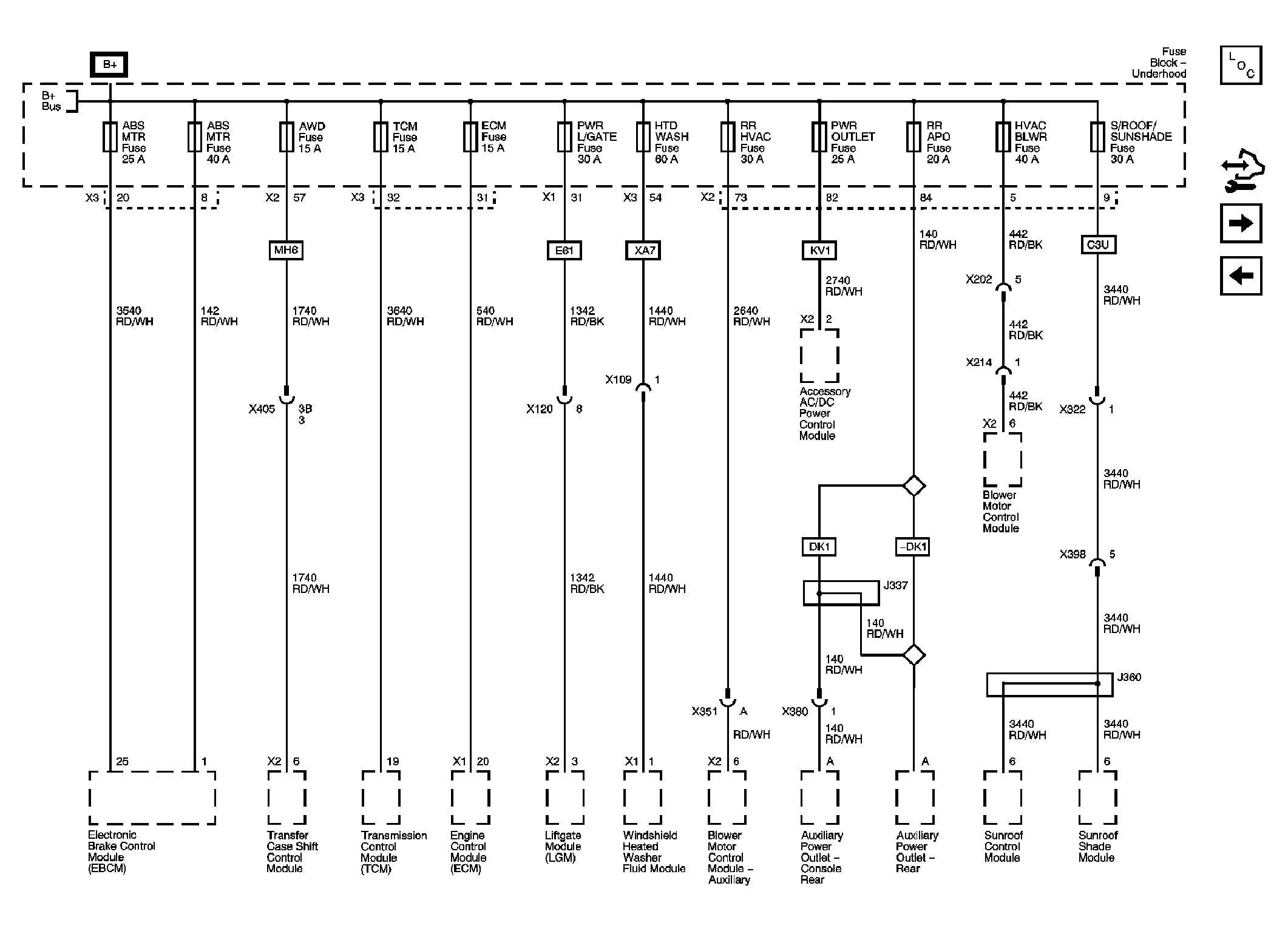

Fig 6: ABS MTR, ABS MTR, AWD, ECM, HTD WASH, HVAC BLWR, PWR L/GATE, PWR OUTLET, RR APO, RR HVAC, S/ROOF/SUNSHADE And TCM Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

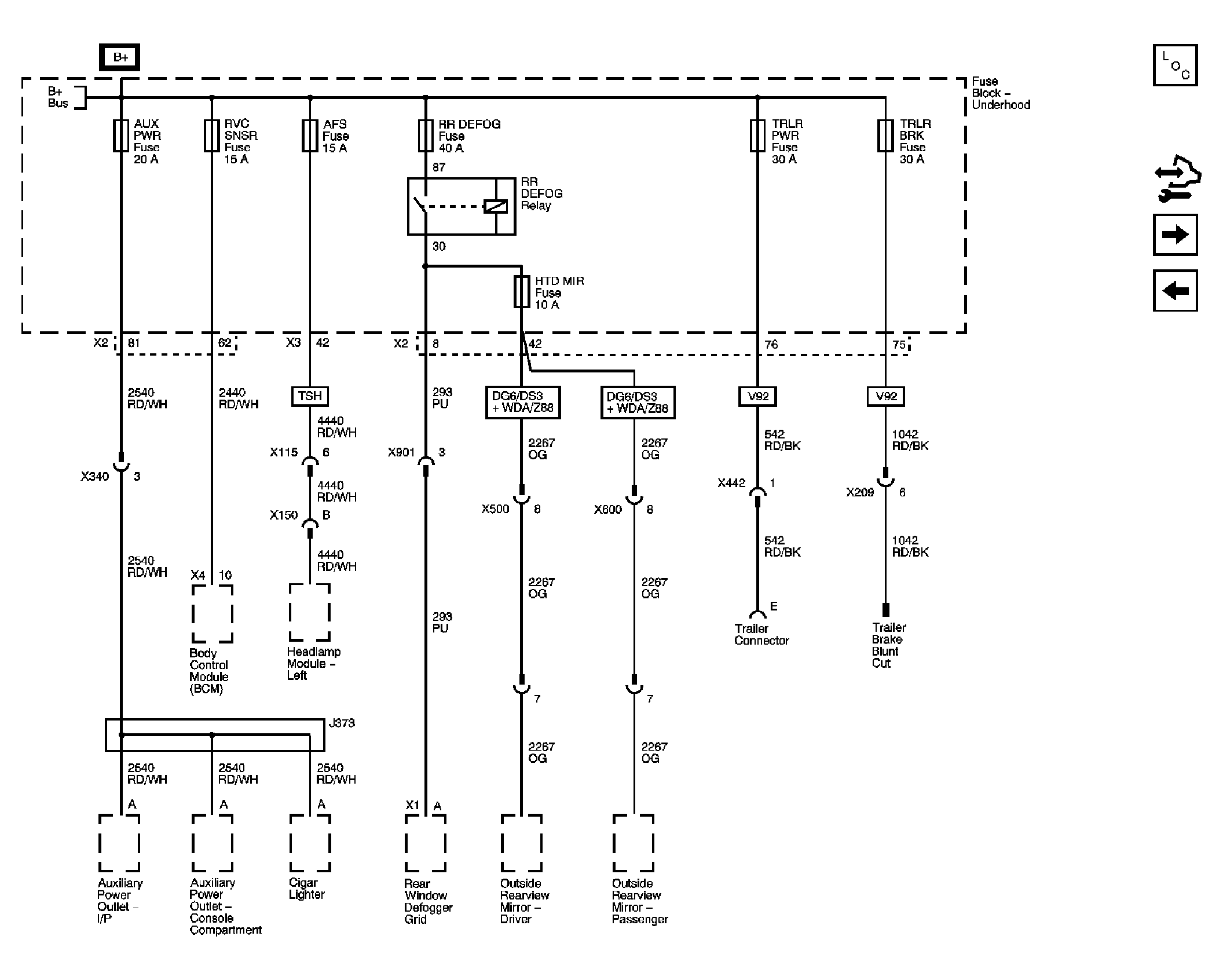

Fig 7: AFS, AUX PWR, HTD MIR, RR DEFOG, RVC SNSR, TRLR BRK And TRLR PWR Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

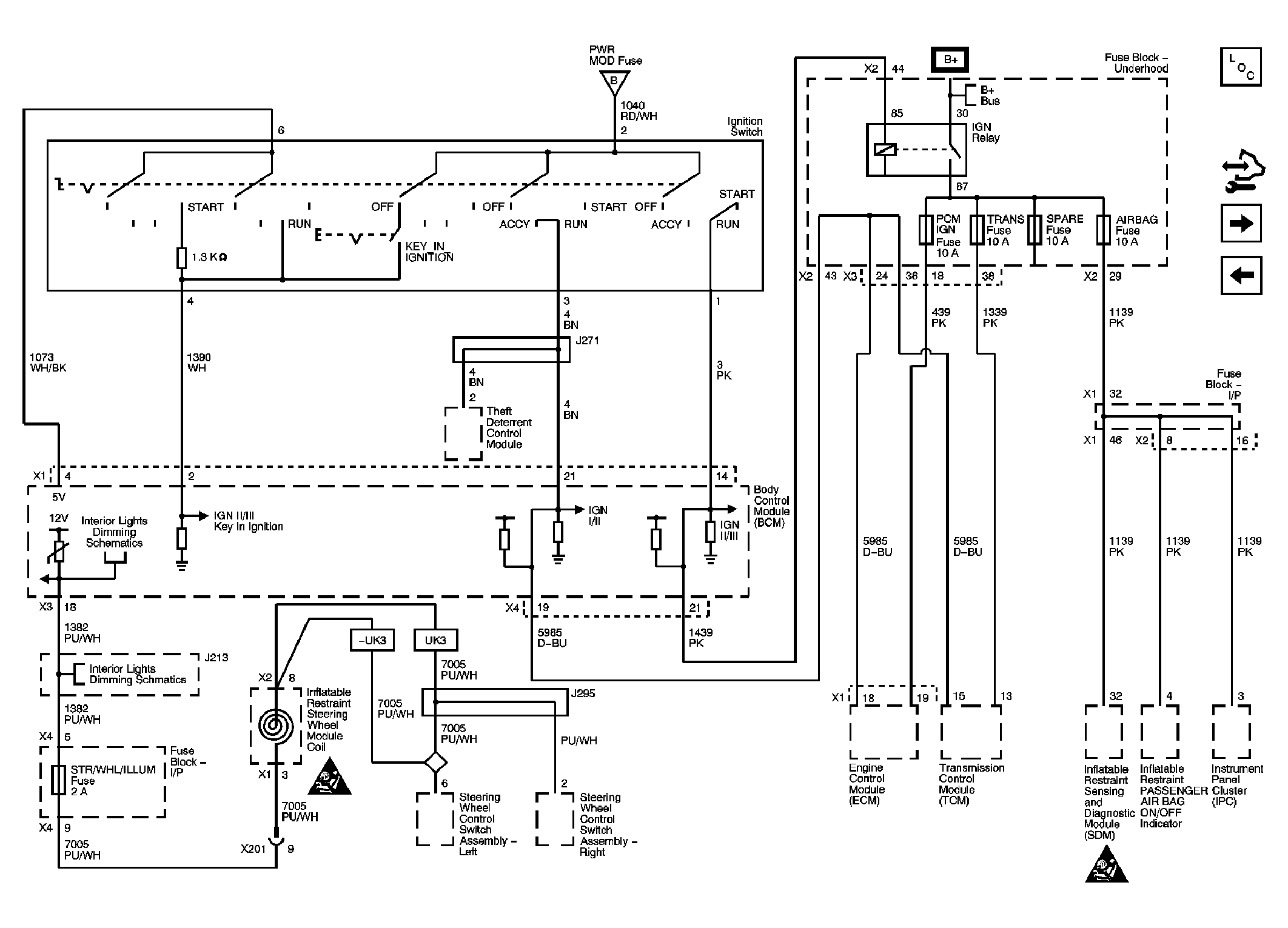

Fig 8: Ignition Switch And AIRBAG, PCM IGN, RR CAMERA, And TRANS Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

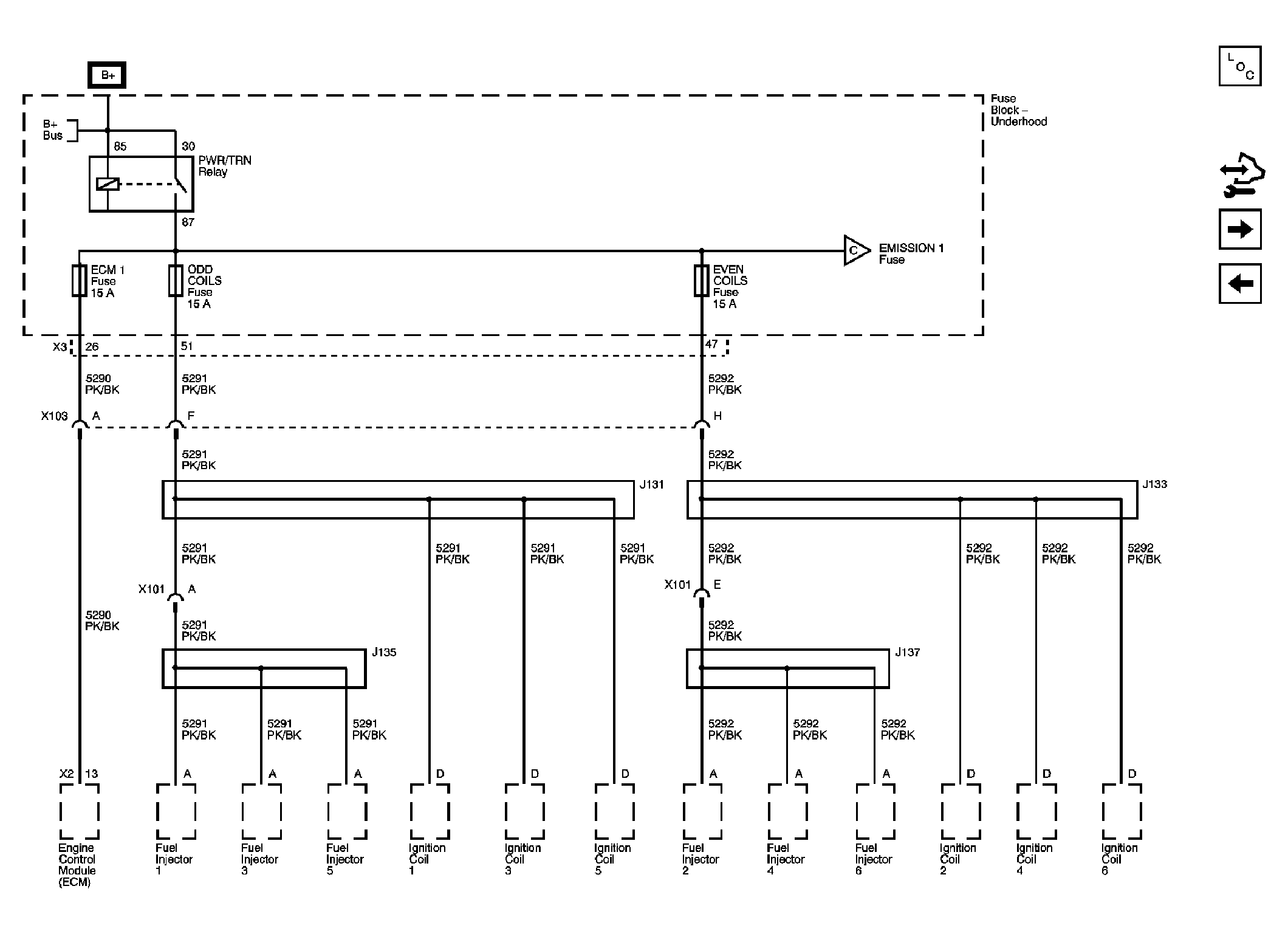

Fig 9: ECM 1, EVEN COILS, And ODD COILS Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

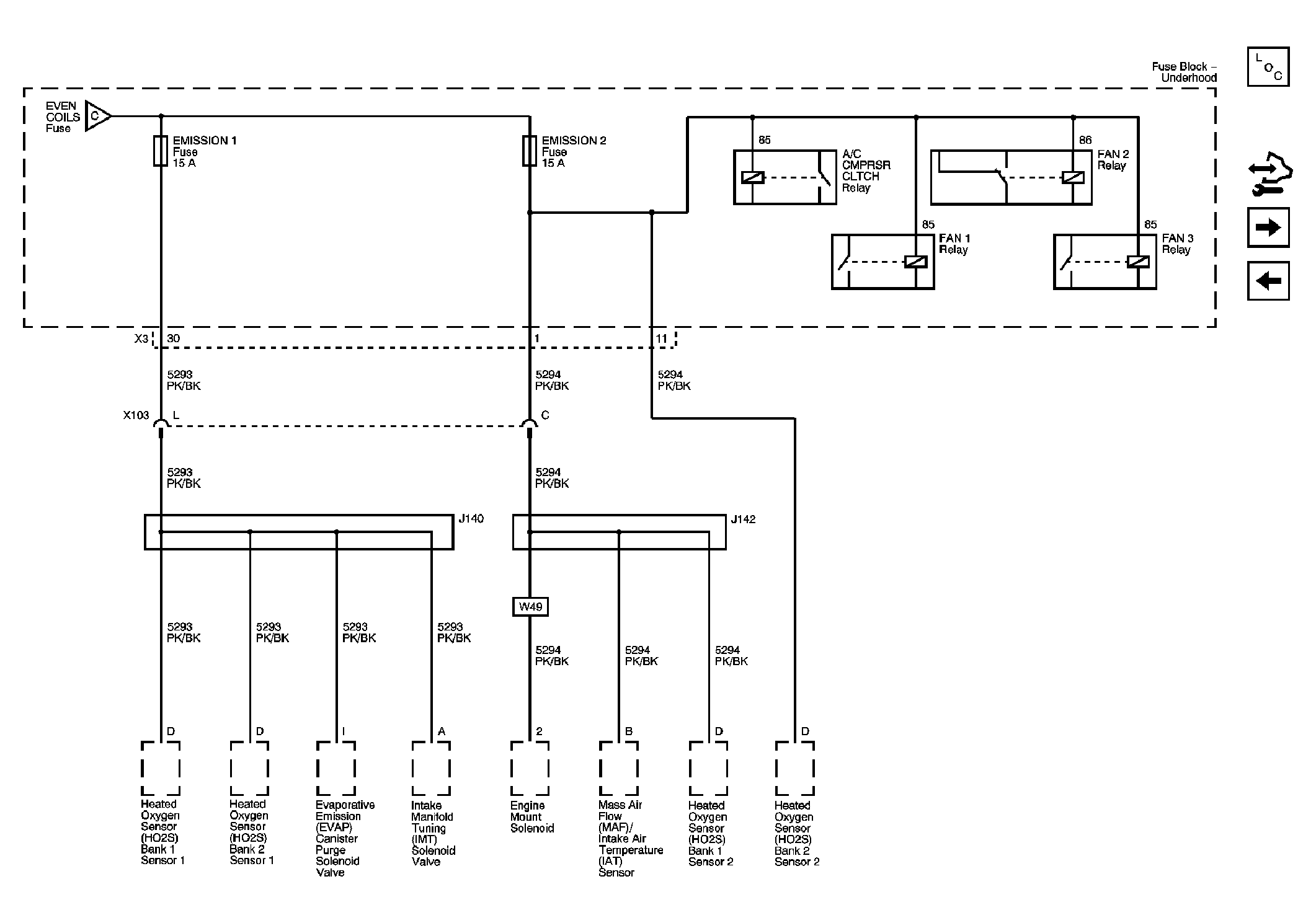

Fig 10: EMISSION 1 And EMISSION 2 Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

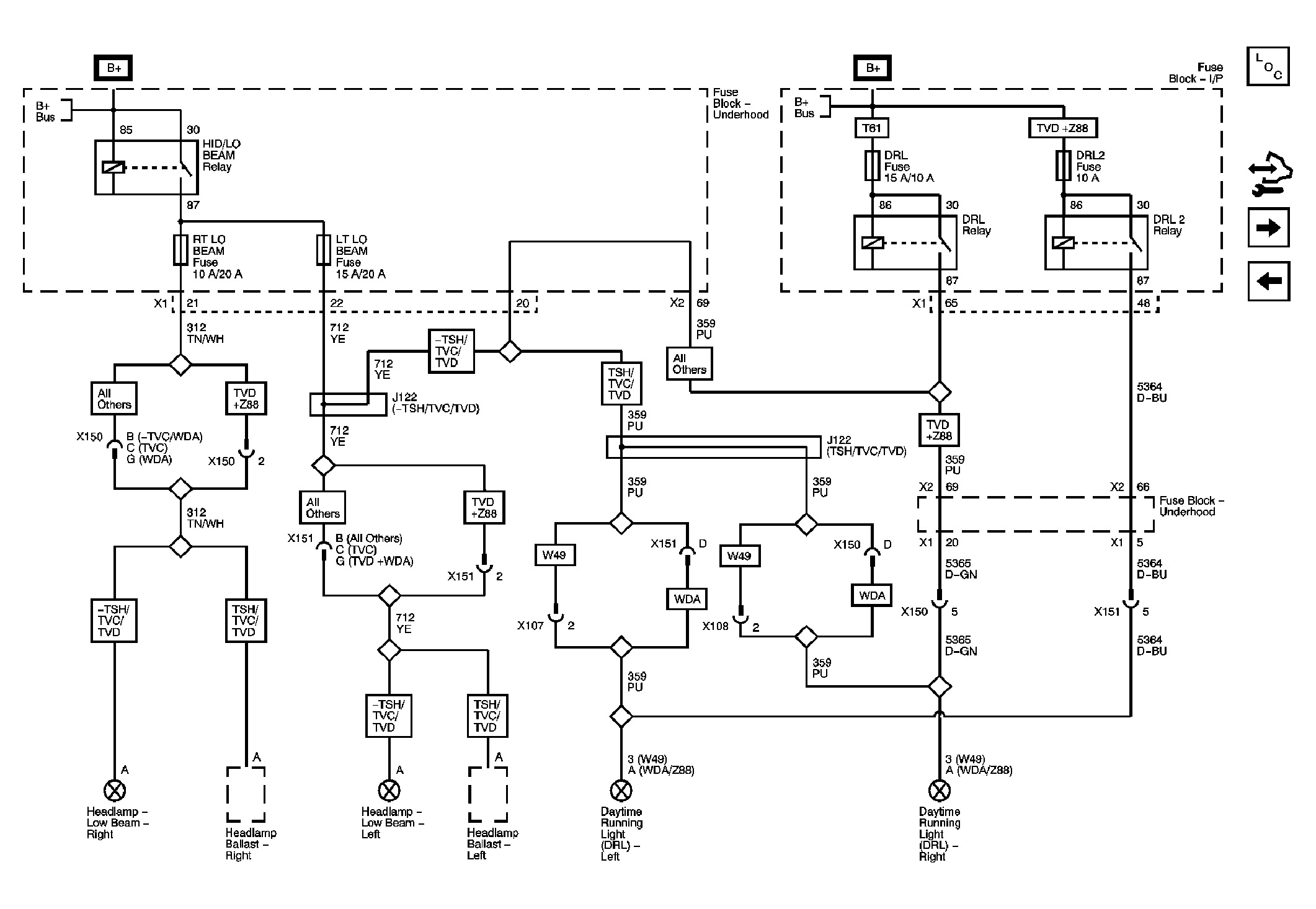

Fig 11: DRL, DRL 2, LT LO BEAM, And RT LO BEAM Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

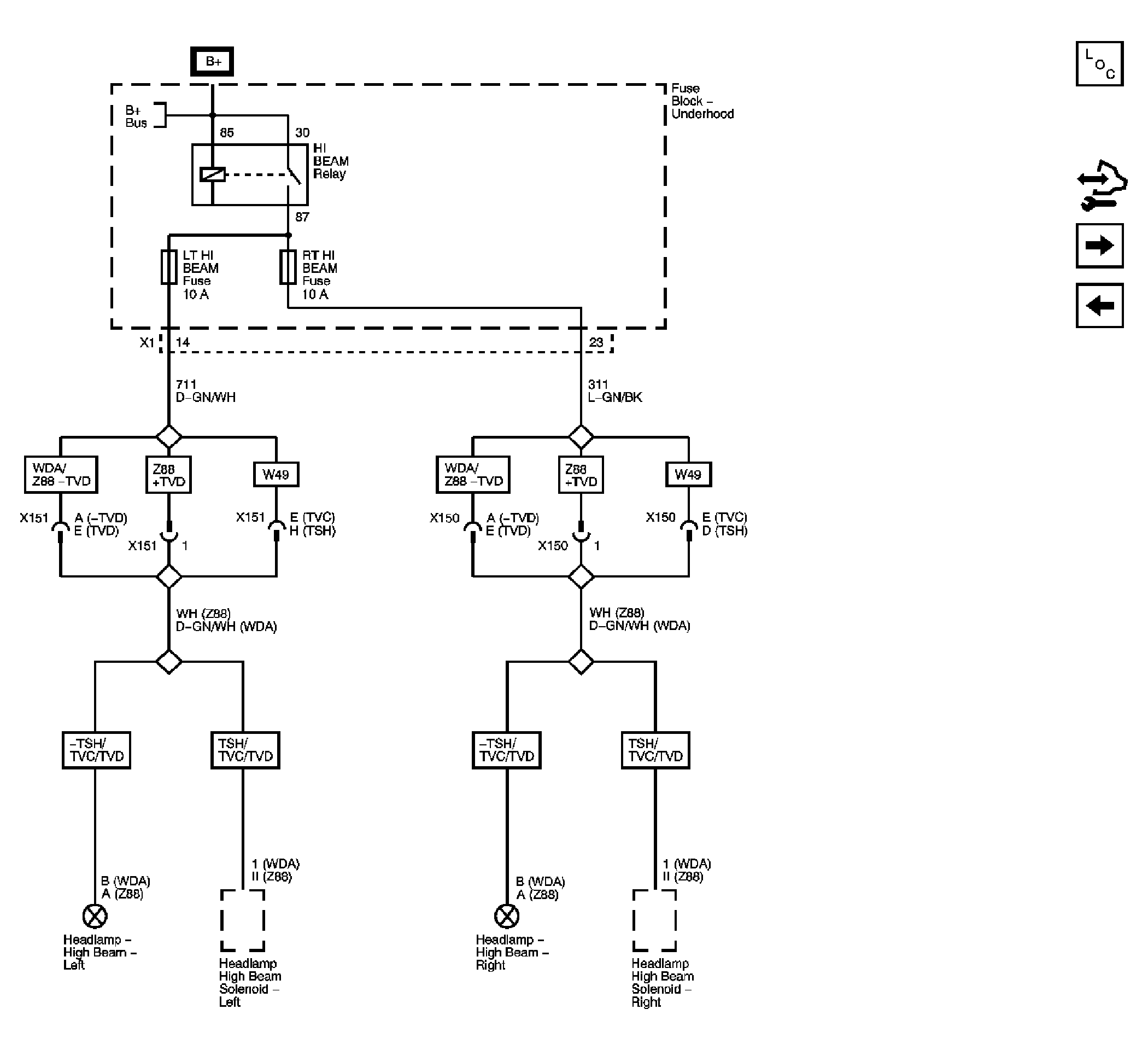

Fig 12: LT HI BEAM And RT HI BEAM Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

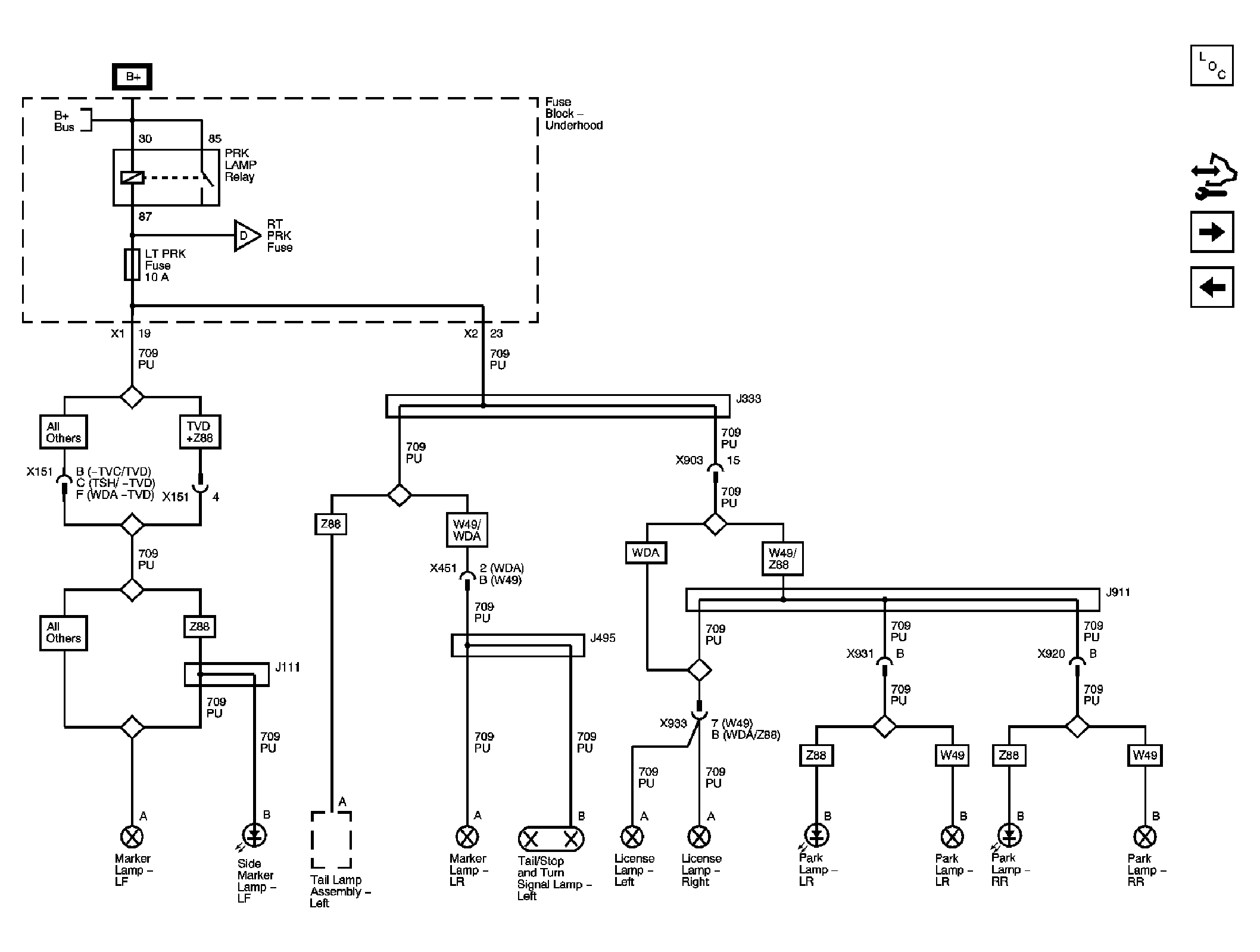

Fig 13: LT PRK Fuse - Schematic

Courtesy of GENERAL MOTORS CORP.

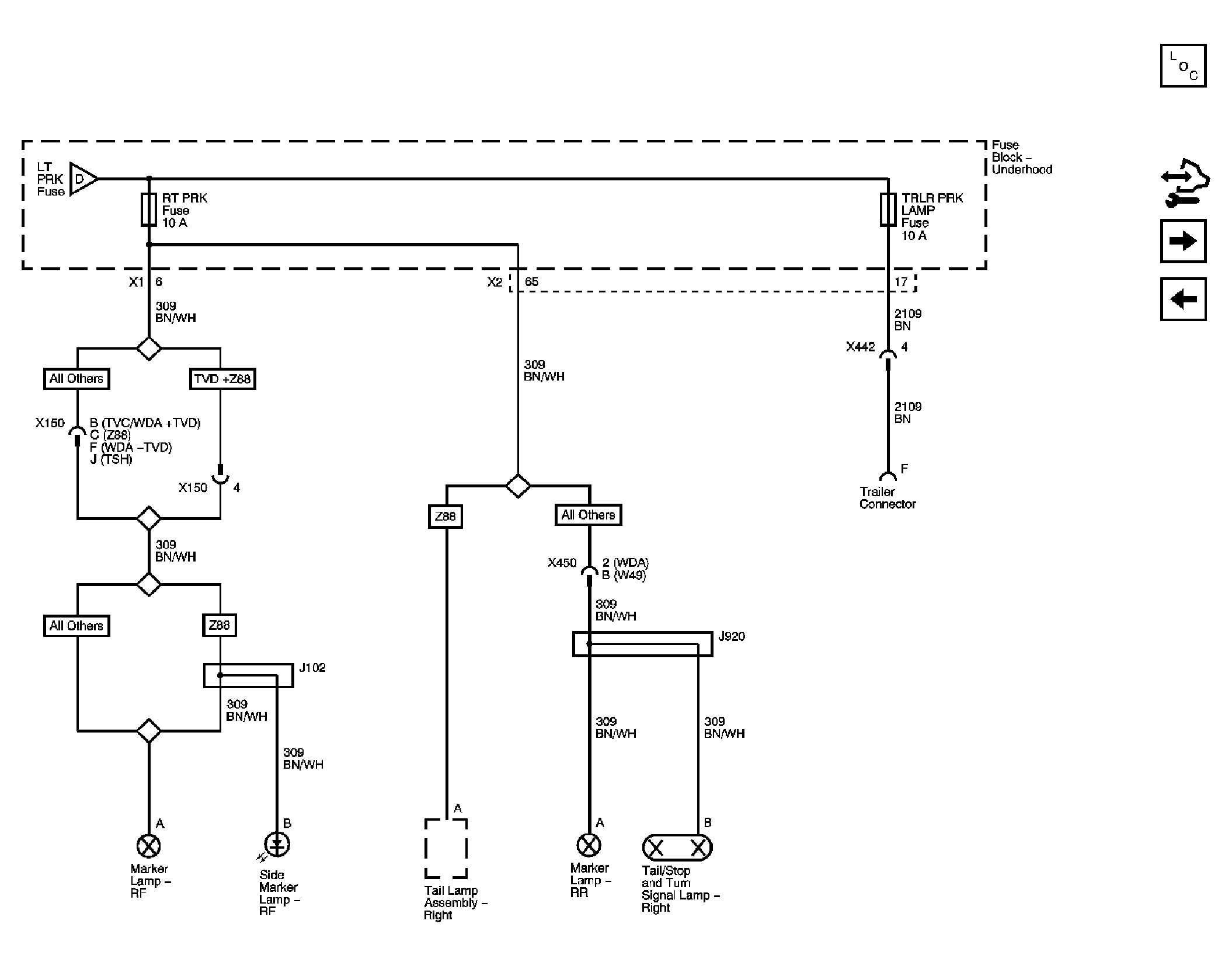

Fig 14: RT PRK And TRLR PRK LAMP Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 15: LT TRLR STOP/TRN, TRLR BCK/UP, And RT TRLR STOP/TRN Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.
