Steering Wheel Secondary/Configurable Control Schematics

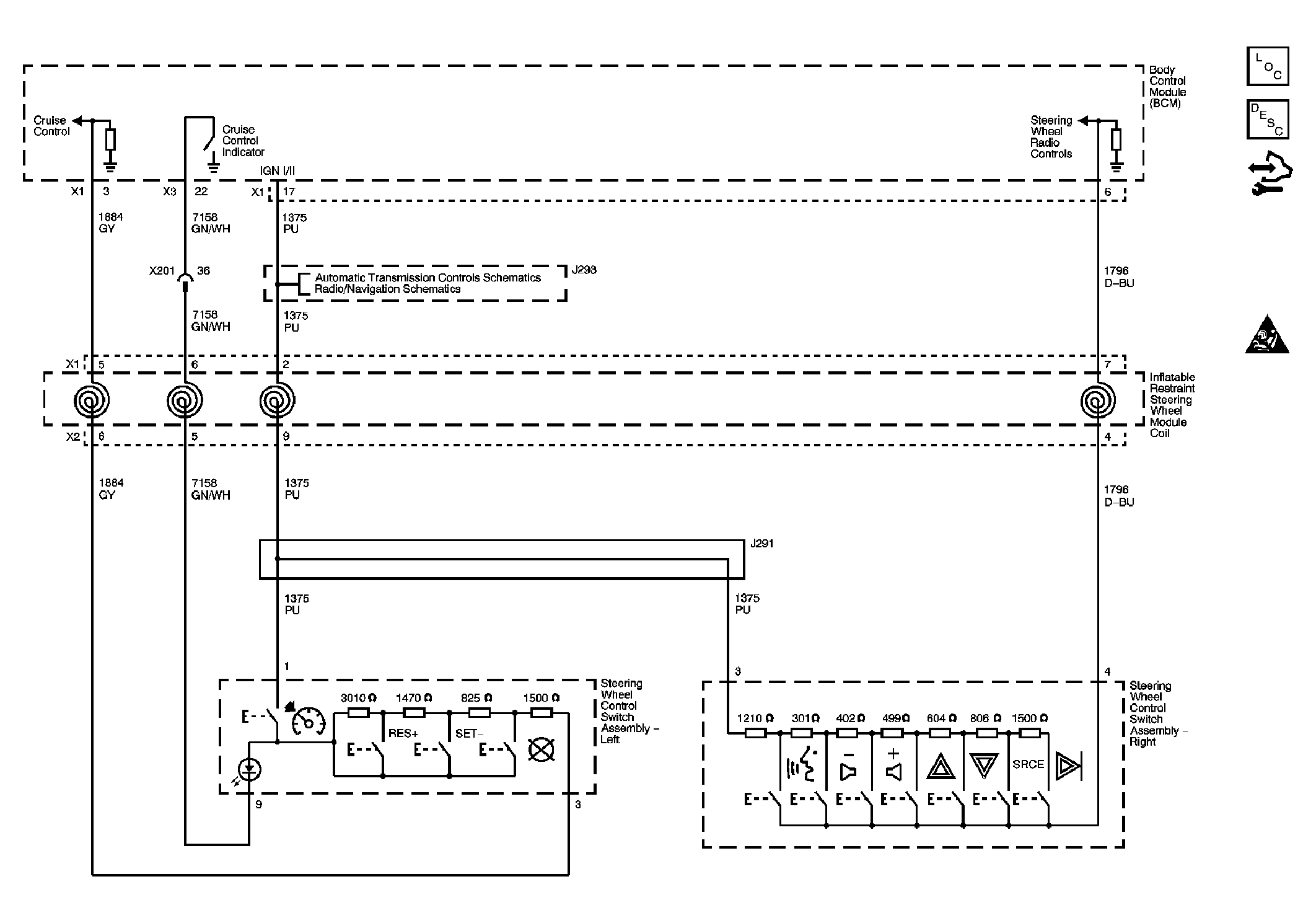

Fig 1: UK3 - Schematic

GM1843962

Courtesy of GENERAL MOTORS CORP.
