Radio Front Speaker Replacement

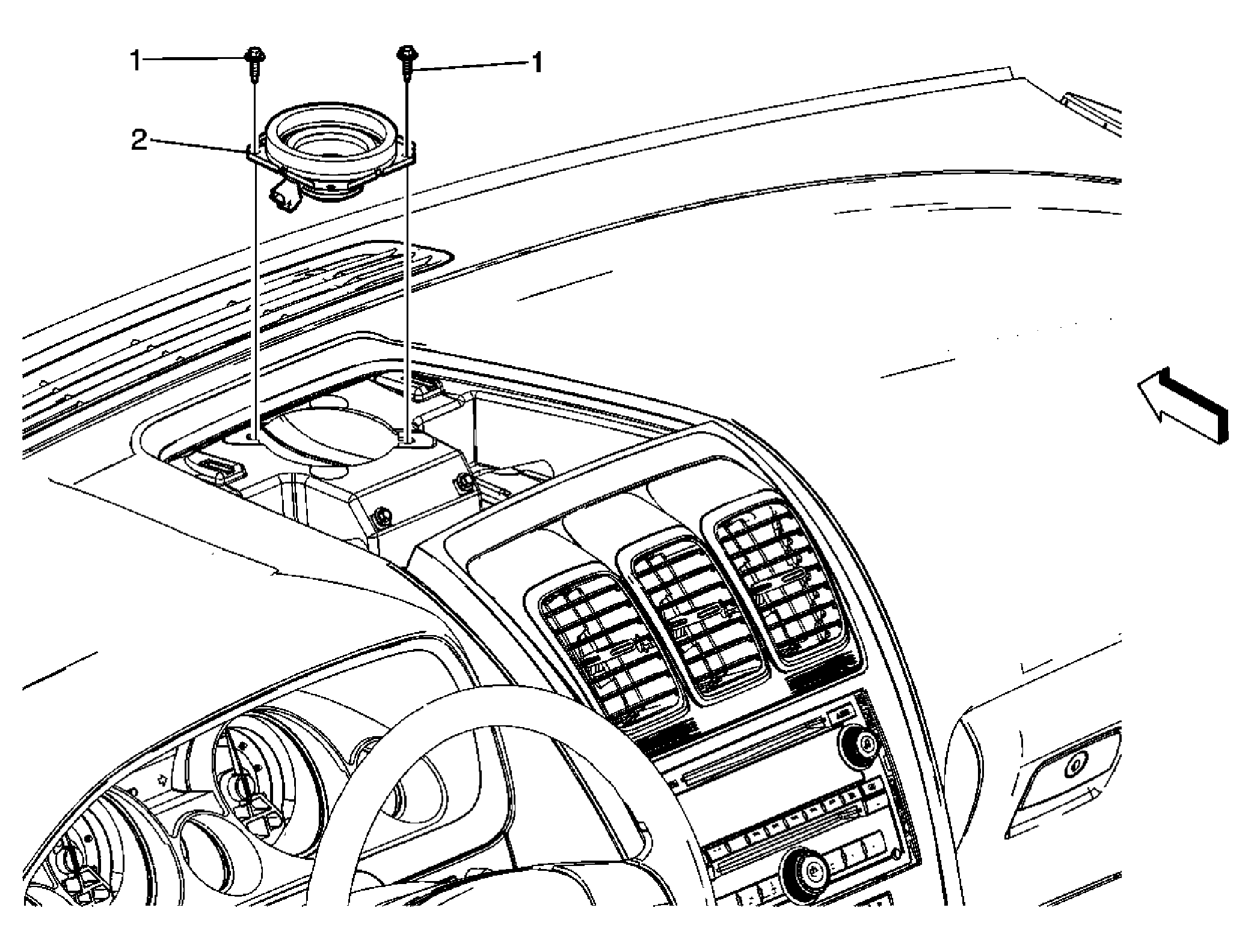

Fig 1: View Of Radio Front Speaker
GM1862576Courtesy of GENERAL MOTORS CORP.
Radio Front Speaker Replacement

Callout Component Name
Preliminary Procedure:
Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement .
1 Radio Front Speaker Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2.5 N.m (22 lb in)
2 Radio Front Speaker Assembly
Procedure:
Disconnect the electrical connector.
