Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sensor to the motor.
  2. Line up the square end of the cable with the motor.

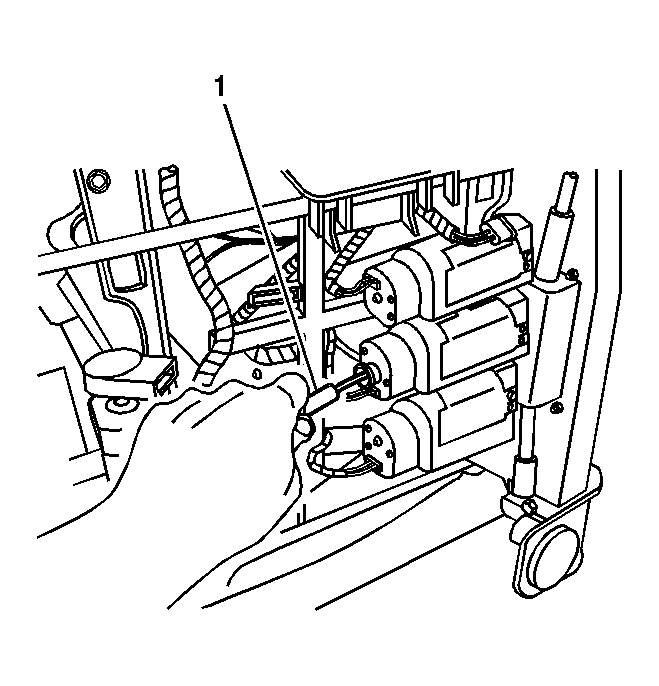

    3. Fig 1: View Of Seat Adjuster Drive Cable
    GM792273Courtesy of GENERAL MOTORS CORP.
  3. Install the long drive cable (1) into the motor.
  4. Install the long cable into the seat adjuster.
  5. Ensure that the cable is fully seated.
  6. Connect the electrical connectors.
  7. Install the seat cushion. Refer to Front Seat Cushion Replacement .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling .
  9. Calibrate the seat. Refer to Memory Seat Calibration .
