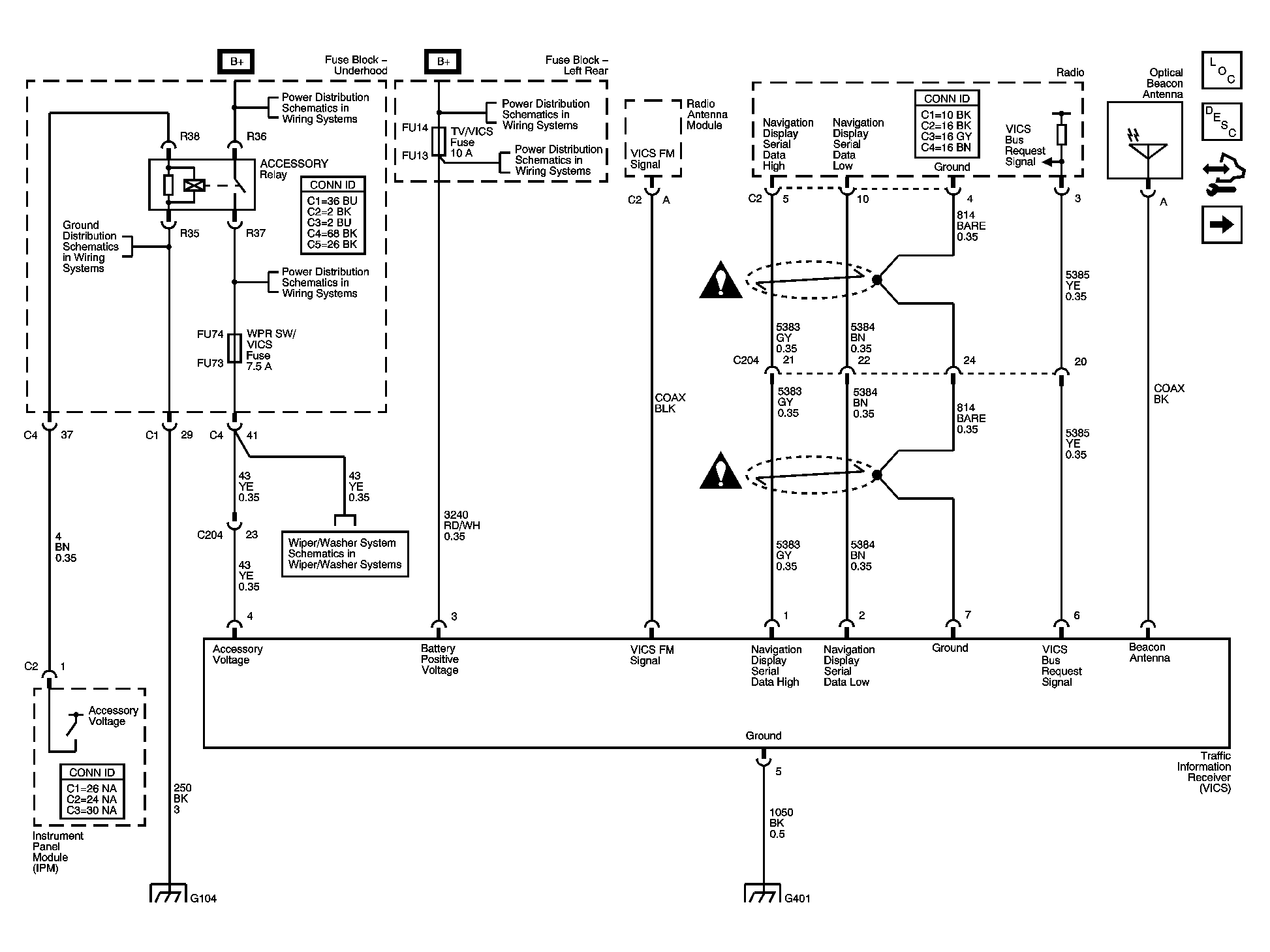

Fig 1: Traffic Information Receiver Module Schematics (VICS) - Japan Only
Courtesy of GENERAL MOTORS CORP.

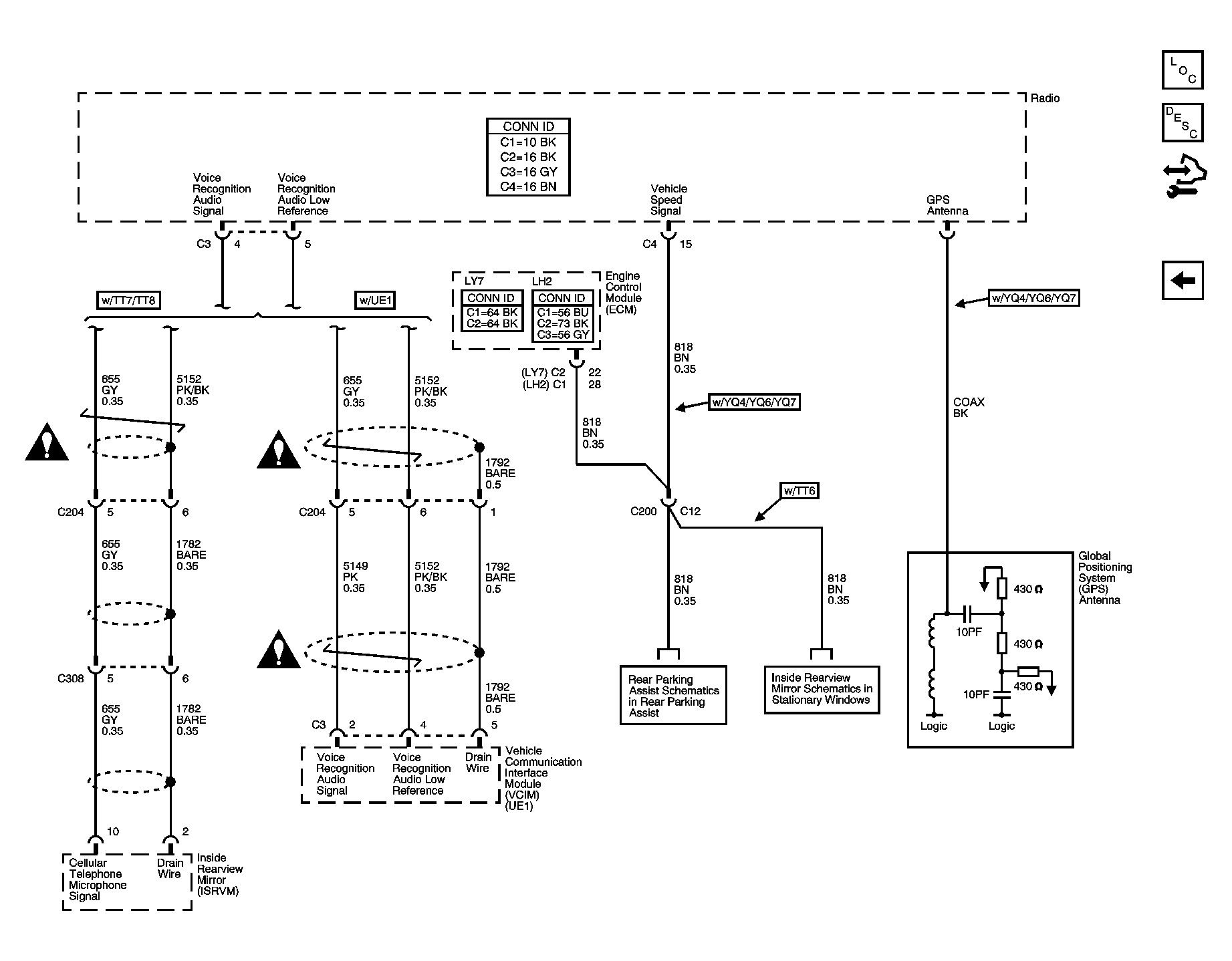

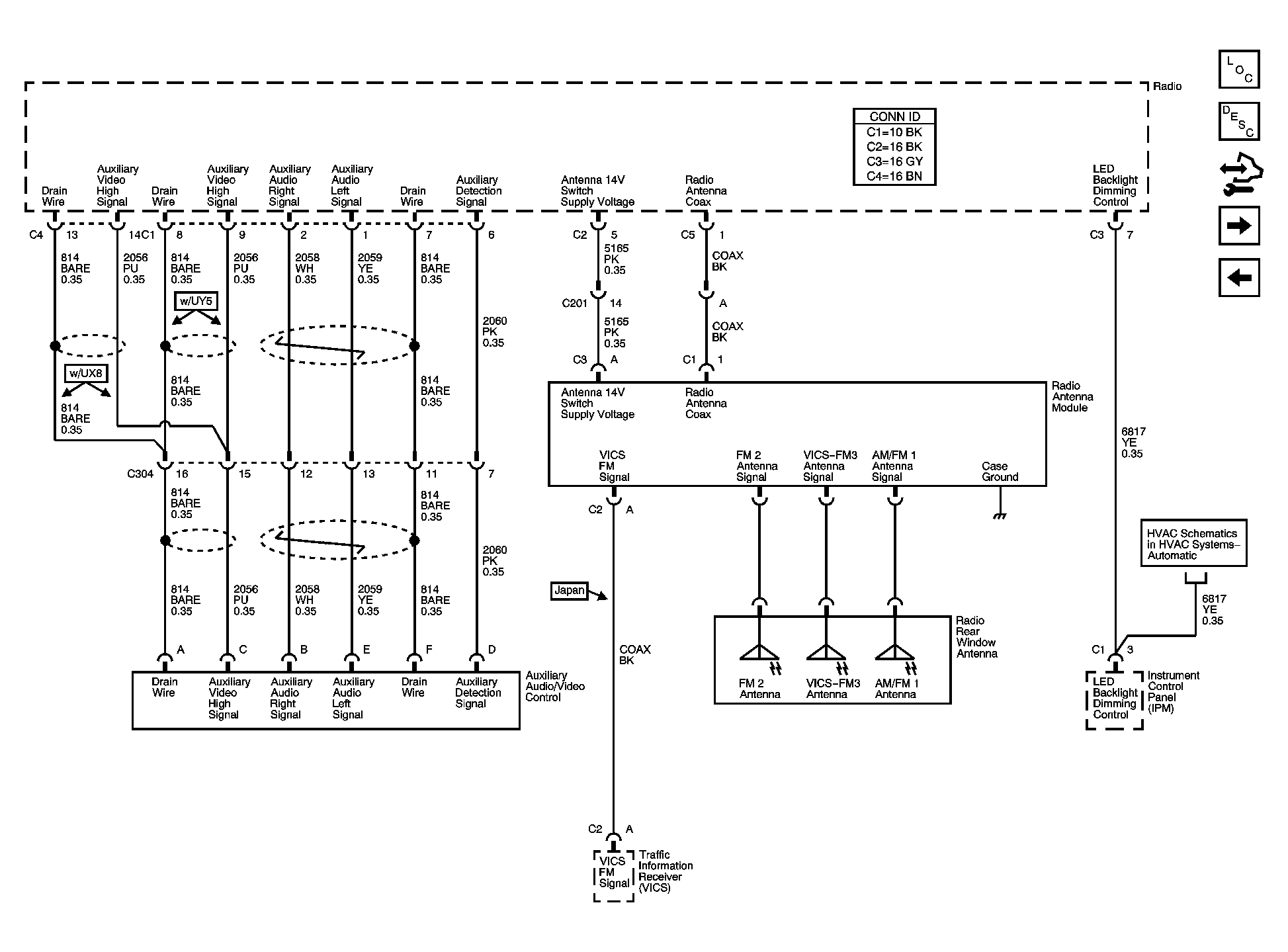

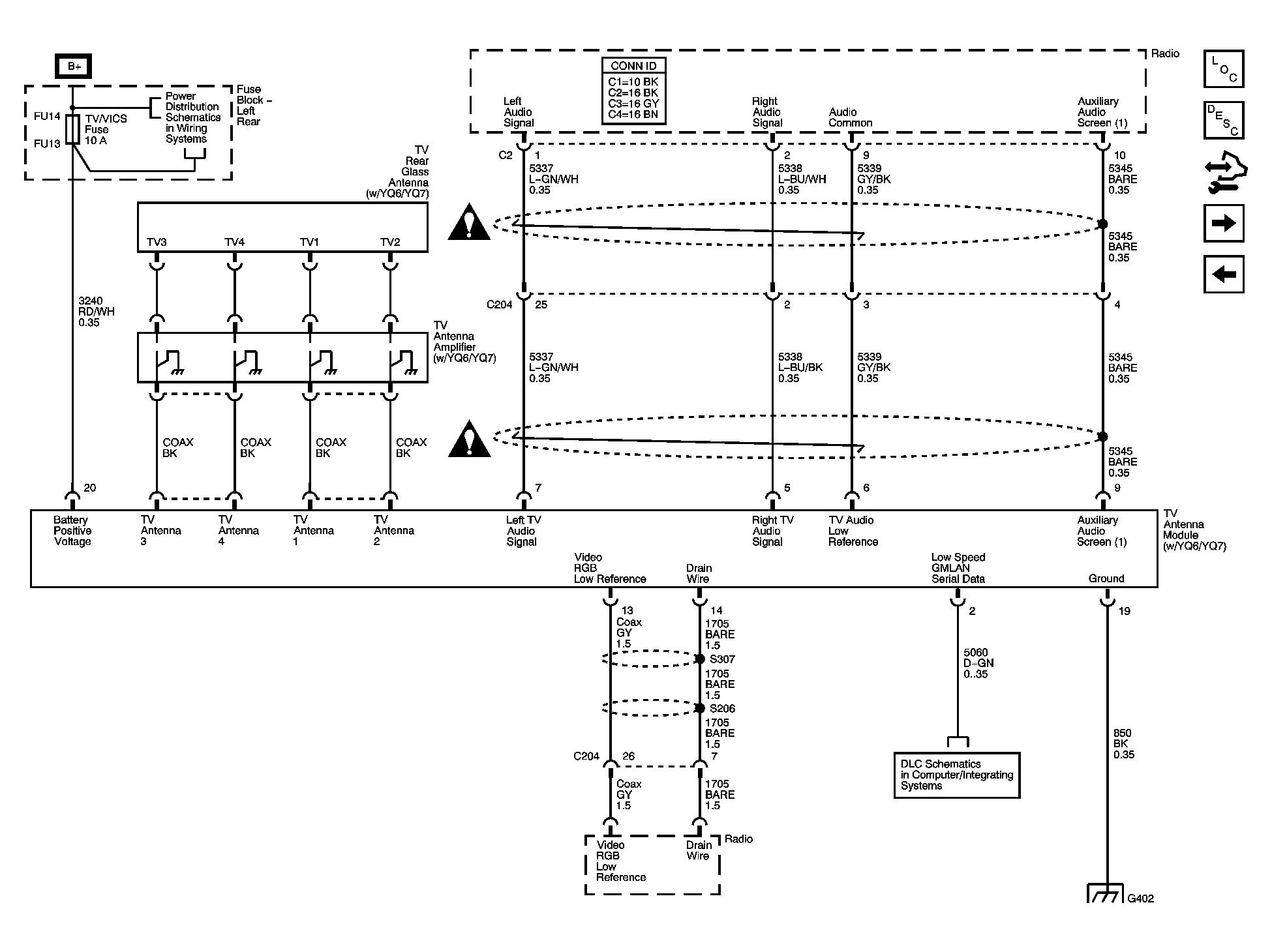

Fig 2: Radio and VICS Antennas, Audio/Video Adapter Schematics
