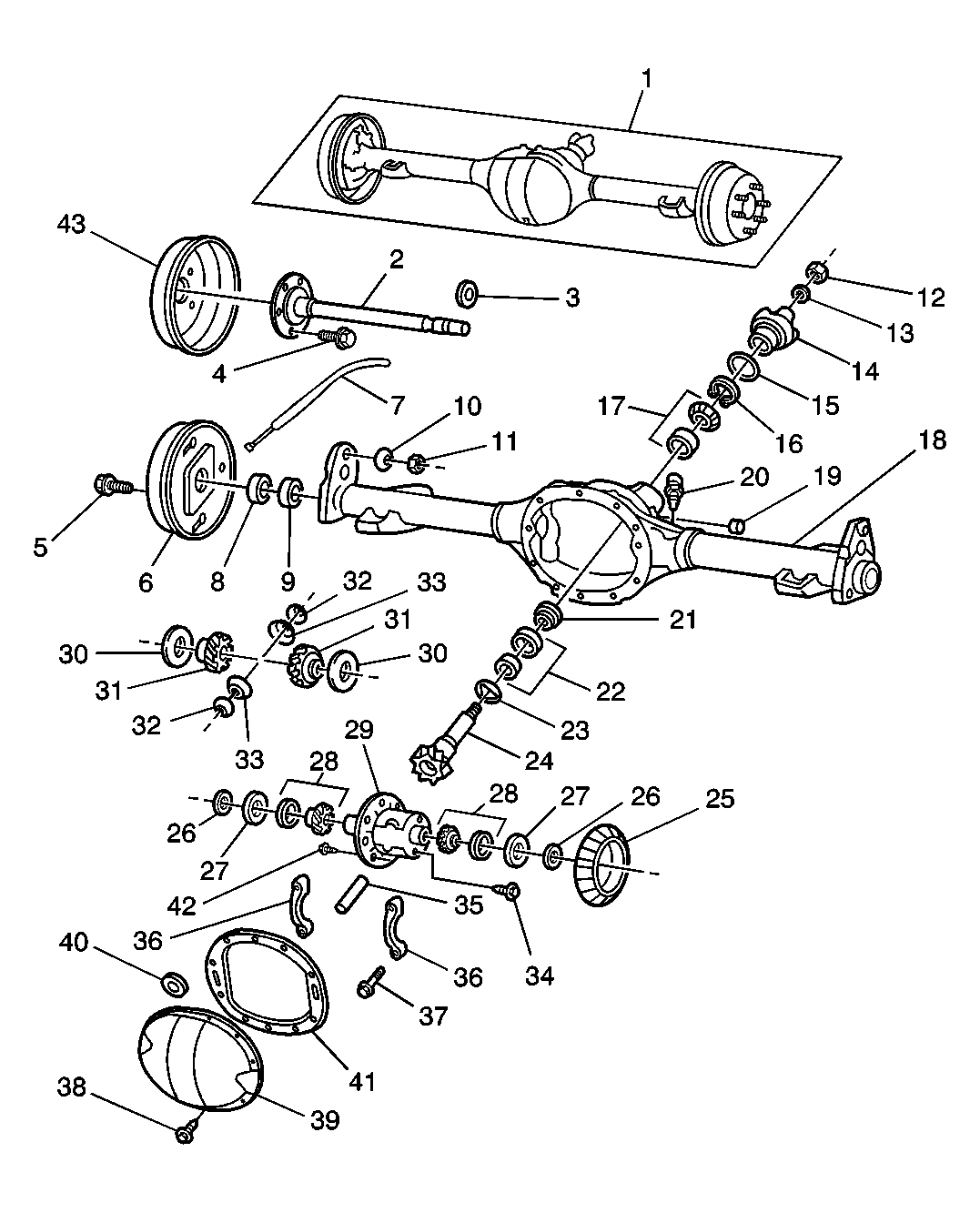

| 1 |
Rear Drive Axle Assembly |
| 2 |
Rear Axle Shaft |
| 3 |
Rear Axle Shaft Lock |
| 4 |
Rear Wheel Stud |
| 5 |
Brake Backing Plate Bolt |
| 6 |
Brake Backing Plate |
| 7 |
Park Brake Cable |
| 8 |
Wheel Bearing Stud |
| 9 |
Wheel Bearing |
| 10 |
Washer |
| 11 |
Hex Nut |
| 12 |
Pinion Gear Nut |
| 13 |
Pinion Gear Washer |
| 14 |
Yoke |
| 15 |
Deflector |
| 16 |
Seal |
| 17 |
Pinion Gear Bearing |
| 18 |
Rear Axle Housing |
| 19 |
Fill Plug |
| 20 |
Vent Connector |
| 21 |
Spacer |
| 22 |
Pinion Gear Inner Bearing |
| 23 |
Shim Kit |
| 24 |
Pinion Gear |
| 25 |
Ring Gear |
| 26 |
Differential Bearing Shim Kit |
| 26 |
Differential Bearing Shim Kit |
| 27 |
Differential Bearing Spacer |
| 27 |
Differential Bearing Spacer |
| 28 |
Differential Bearing |
| 28 |
Differential Bearing |
| 29 |
Differential Case |
| 30 |
Differential Side Gear Washer |
| 30 |
Differential Side Gear Washer |
| 31 |
Differential Side Gear |
| 31 |
Differential Side Gear |
| 32 |
Differential Pinion Gear Washer |
| 32 |
Differential Pinion Gear Washer |
| 33 |
Differential Pinion Gear Kit |
| 33 |
Differential Pinion Gear Kit |
| 34 |
Differential Pinion Gear Shaft Bolt |
| 35 |
Differential Pinion Gear Shaft |
| 36 |
Differential Bearing Cap |
| 36 |
Differential Bearing Cap |
| 37 |
Hex Bolt |
| 38 |
Differential Cover Bolt |
| 39 |
Rear Axle Housing Cover |
| 40 |
Rear Axle Housing Chip Magnet |
| 41 |
Gasket |
| 42 |
Differential Ring Gear Bolt |
| 43 |
Rear Brake Drum |
