Inside Rearview Mirror Schematics

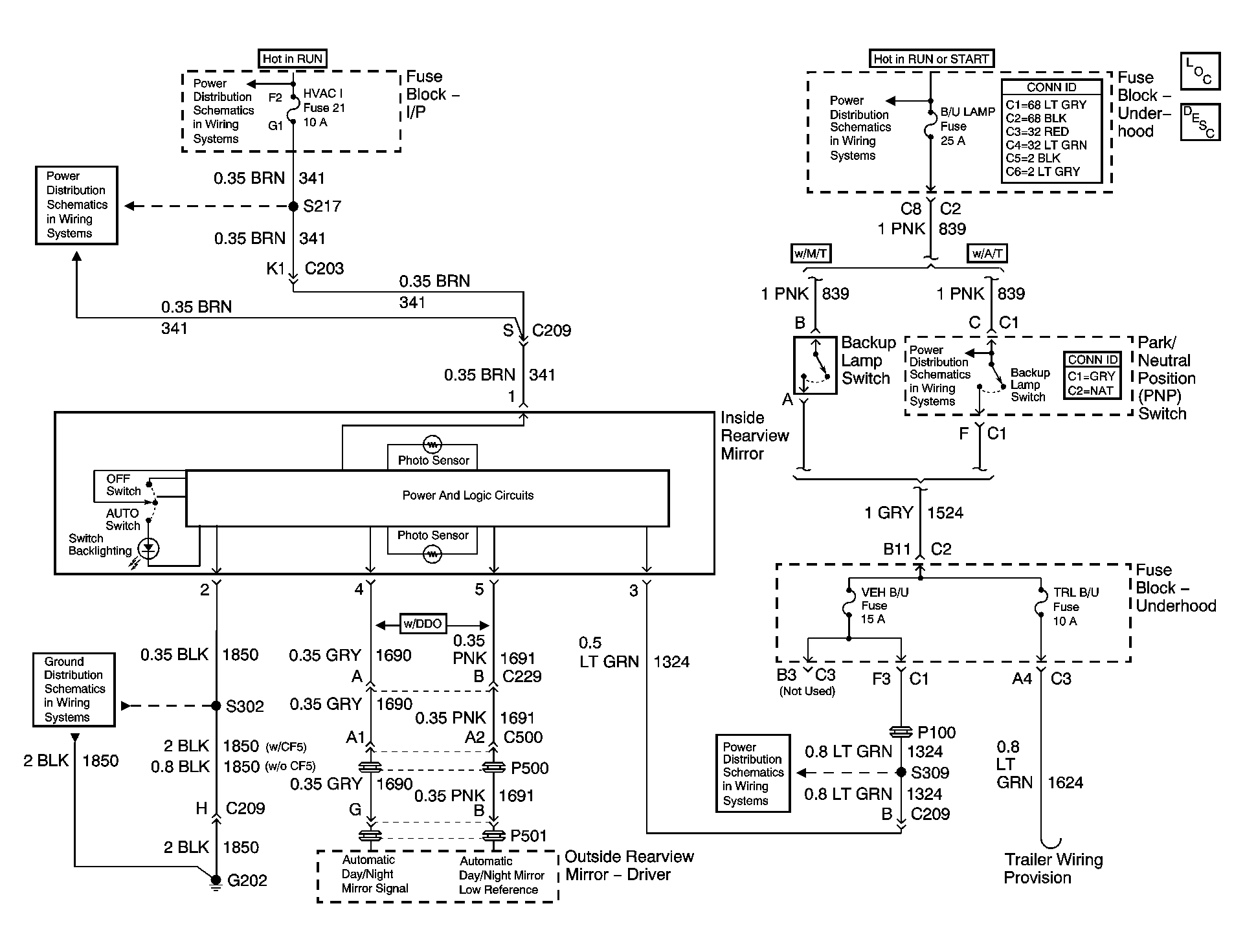

Fig 1: Inside Rearview Mirror Schematic

GM1509384

Courtesy of GENERAL MOTORS CORP.
