Removal Procedure

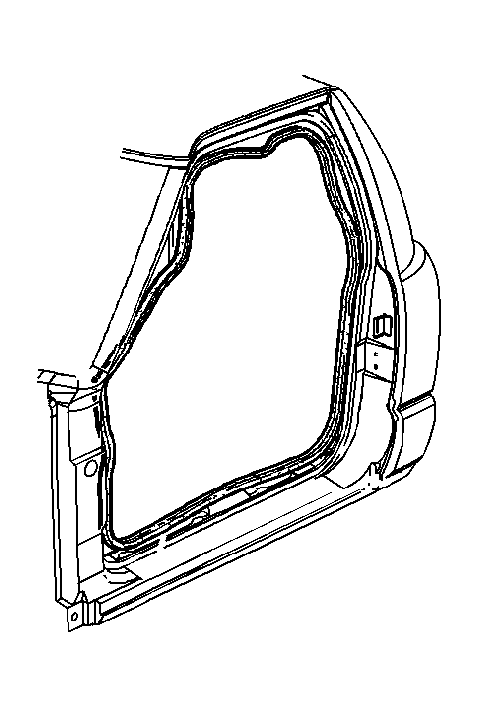

Fig 1: View Of Door Opening Weatherstrip
GM6372Courtesy of GENERAL MOTORS CORP.
  1. Remove the door opening weatherstrip from the door opening.
  2. Gently pull the weatherstrip from the pinch weld flange.
