Removal Procedure

  1. Raise the window to the closed position.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Utility) .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Door .

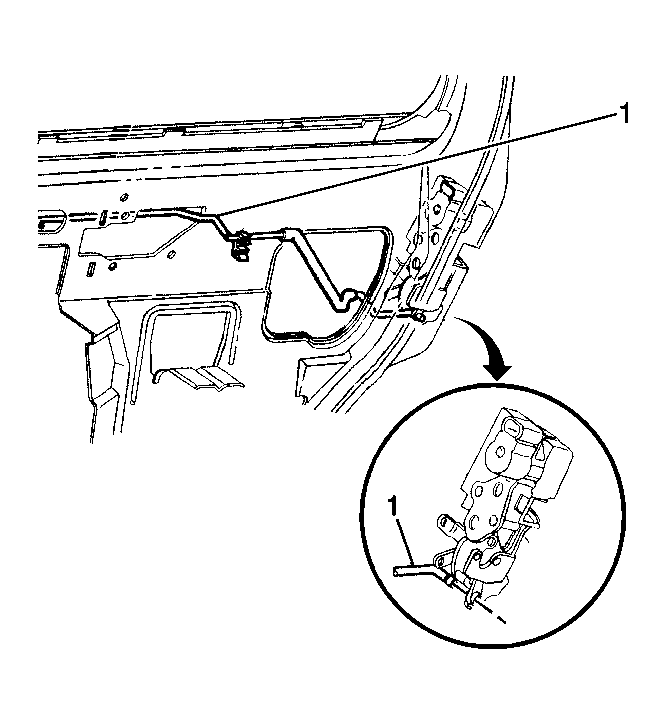

    4. Fig 1: Locating Inside Door Lock Rod
    GM294640Courtesy of GENERAL MOTORS CORP.
  4. Remove the inside door lock rod (1) from the latch assembly.
  5. Remove the inside door handle rod from the latch assembly.
  6. Remove the outside door handle rod from the latch assembly.
  7. Disconnect the power actuator wiring connector, of equipped.

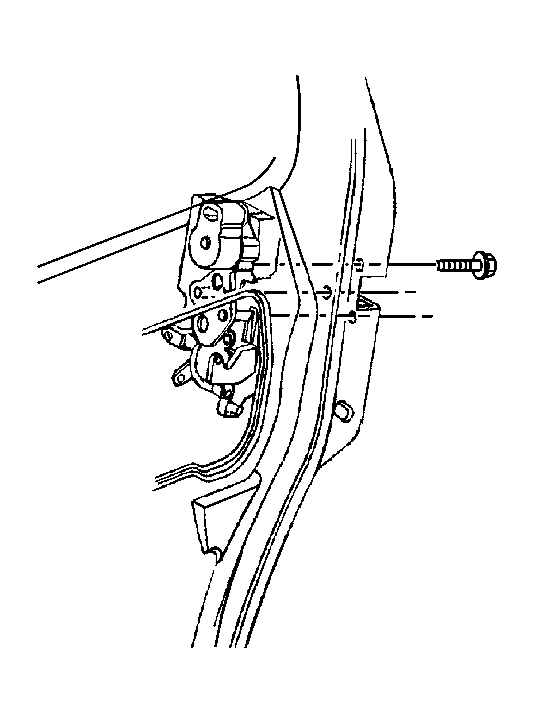

    8. Fig 2: View Of Rear Door Latch Assembly
    GM294650Courtesy of GENERAL MOTORS CORP.
  8. Remove the fasteners that retain the latch assembly to the door.
  9. Remove the latch assembly from the door.
  10. Remove the lock actuator from the latch. Refer to Lock Actuator Replacement - Rear Door .
