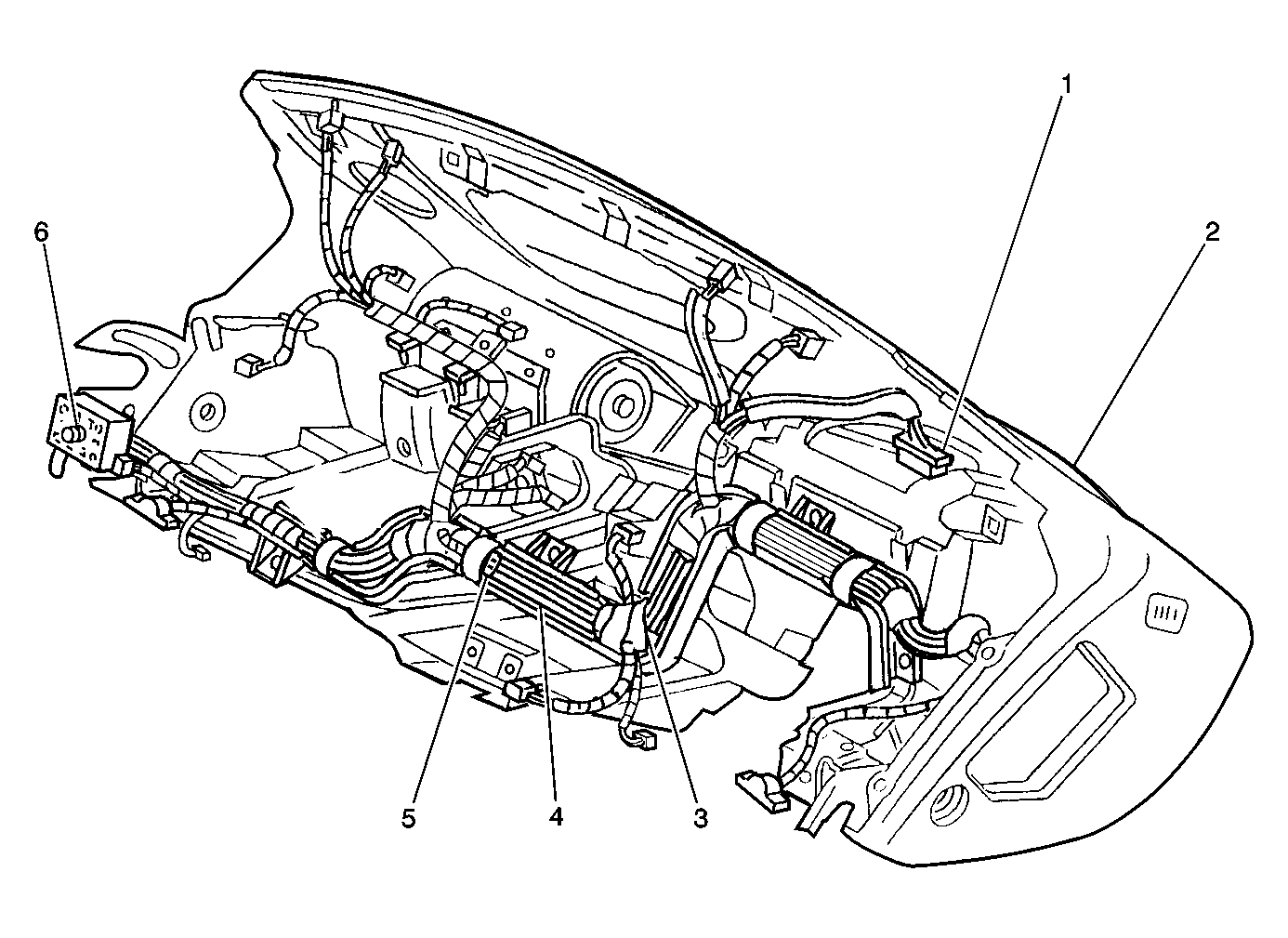

Instrument Panel, Gages, and Console Component Views
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster (IPC) Connector |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | S240 |
| 4 | S205 |
| 5 | Splice Pack SP203 |
| 6 | C203 |
Fig 2: Throttle Position (TP) Sensor, Idle Air Control (IAC) Valve, and Positive Crankcase Ventilation Valve (PCV) Component View
| Callout | Component Name |
|---|---|
| 1 | Throttle Position (TP) Sensor |
| 2 | Idle Air Control (IAC) Valve |
| 3 | Ignition Coil |
| 4 | Evaporative Emission (EVAP) Canister Purge Solenoid |
| 5 | Engine Oil Pressure (EOP) Sensor |
| 6 | Knock Sensor (KS) |
| 7 | Fuel Pressure Connection Valve |
| 8 | Positive Crankcase Ventilation (PCV) Valve |
