Range Selector Displays Incorrect Range: Notes

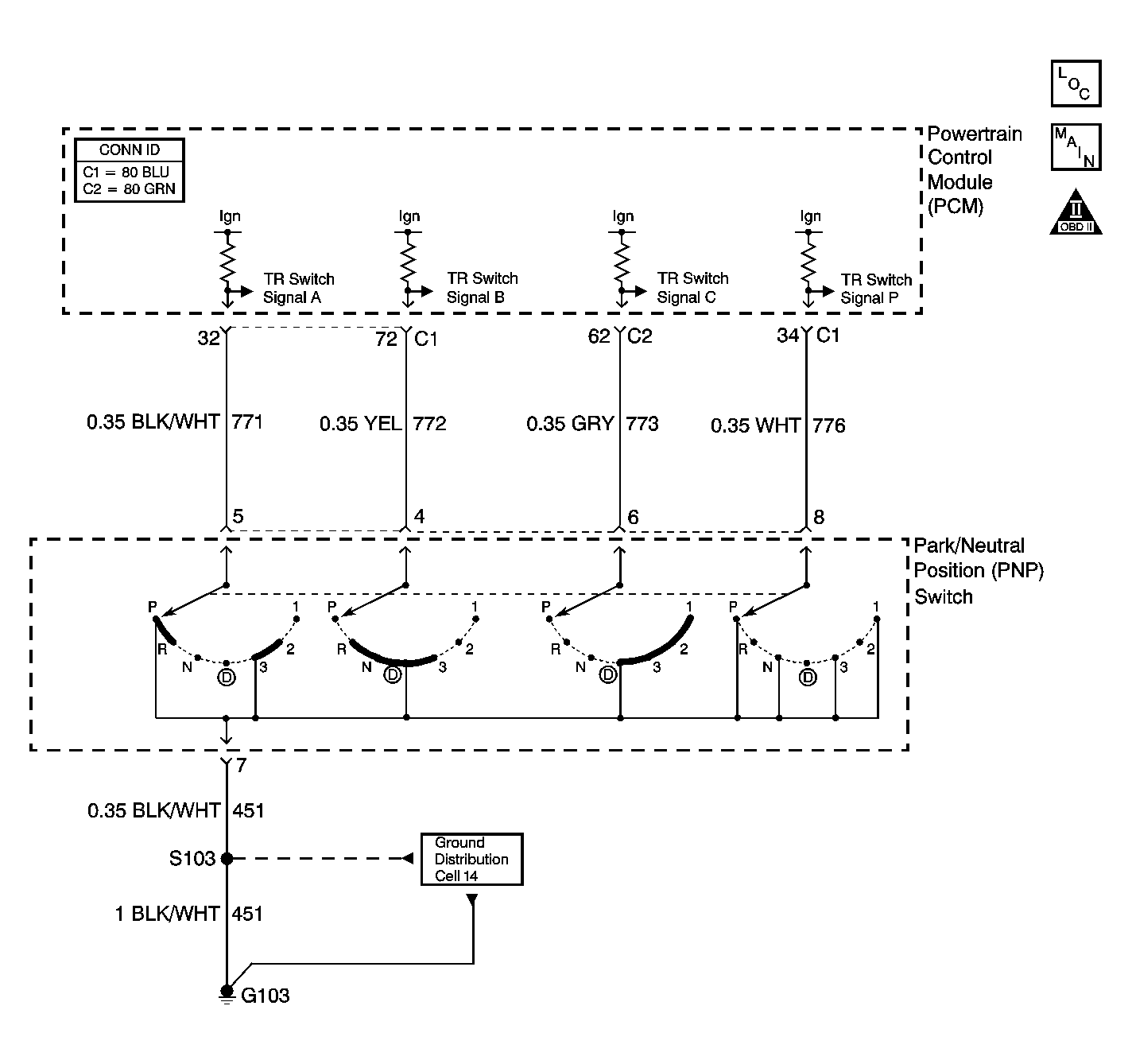

Fig 1: Identifying Park/Neutral Position Switch Schematic

GM1237813

Courtesy of GENERAL MOTORS CORP.
