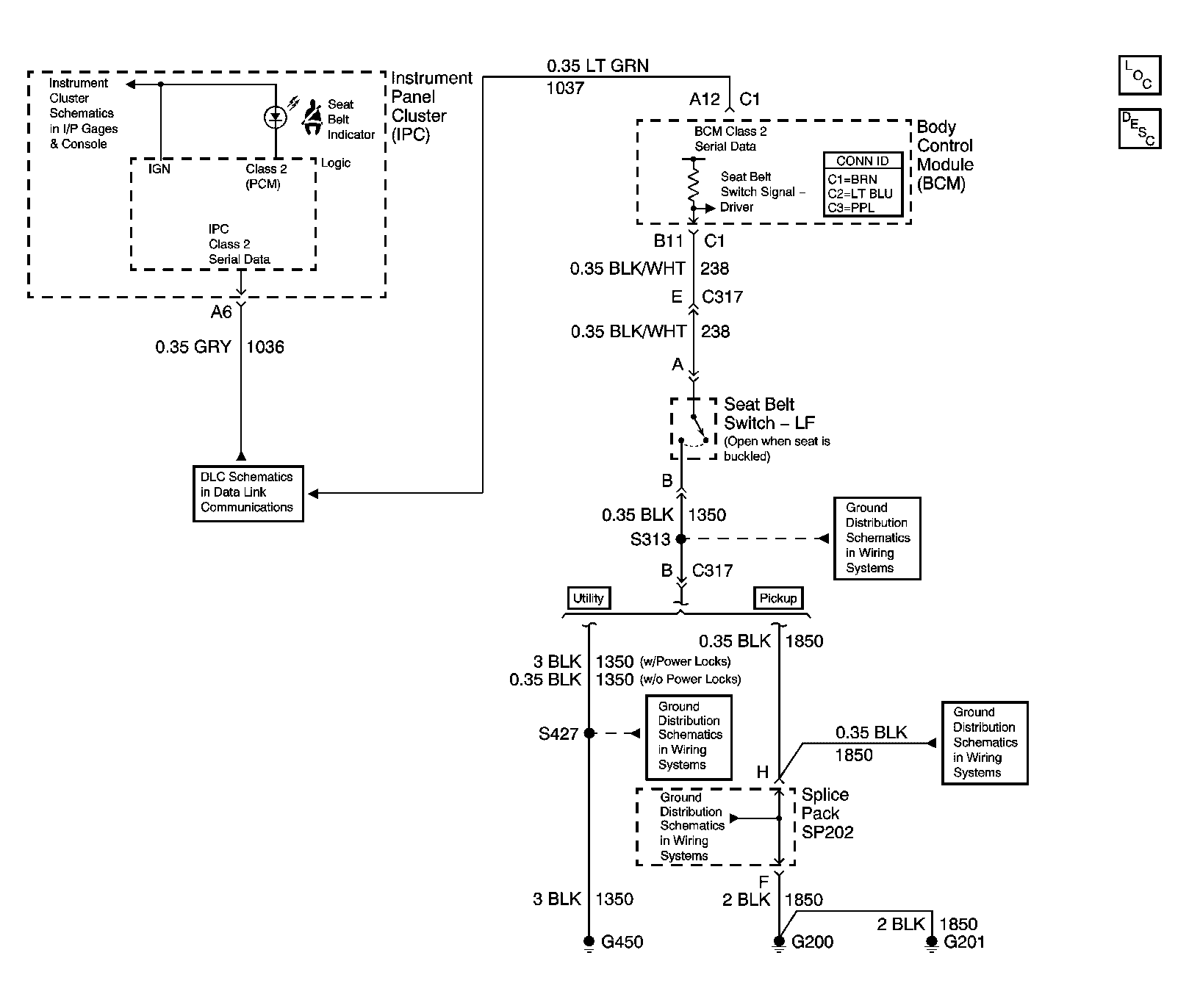

Home >> GMC >> 2004 >> Jimmy 2D Utility, Part Time, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Schematic and Routing Diagrams >> Seat Belt Schematics
