Removal Procedure

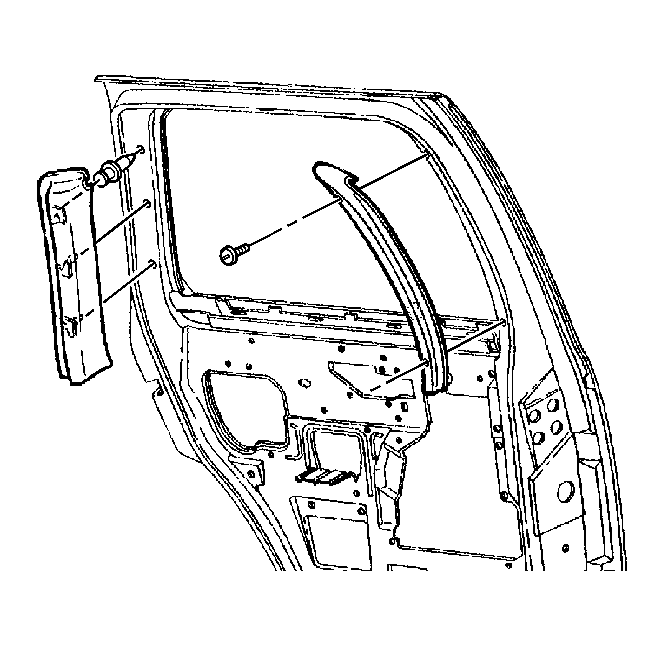

    Fig 1: Locating Rear Side Door Inner Panel
    GM294613Courtesy of GENERAL MOTORS CORP.
  1. Remove the screws that retain the front trim molding to the door.
  2. Remove the trim molding from the door.
  3. Use the J 38778  in order to remove the rear trim moldings.
  4. Remove the retainers from the rear trim molding.
