Installation Procedure

  1. Install the connector to the clutch start switch switch.
  2. Install the clutch start switch to the pushrod with the plastic tabs.
  3. Install the push rod to the clutch pedal.

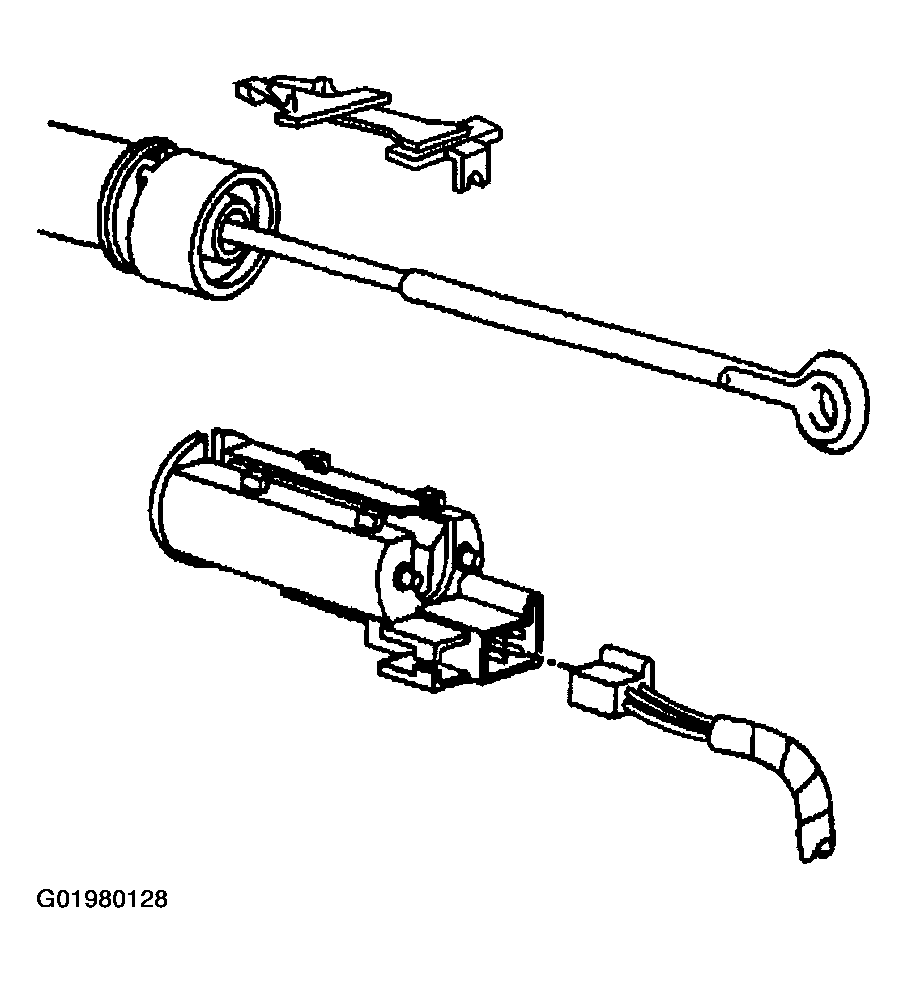

    Fig 1: Installing Clutch Start Switch To Push Rod
    G01980128Courtesy of GENERAL MOTORS CORP.
