Disassembled Views

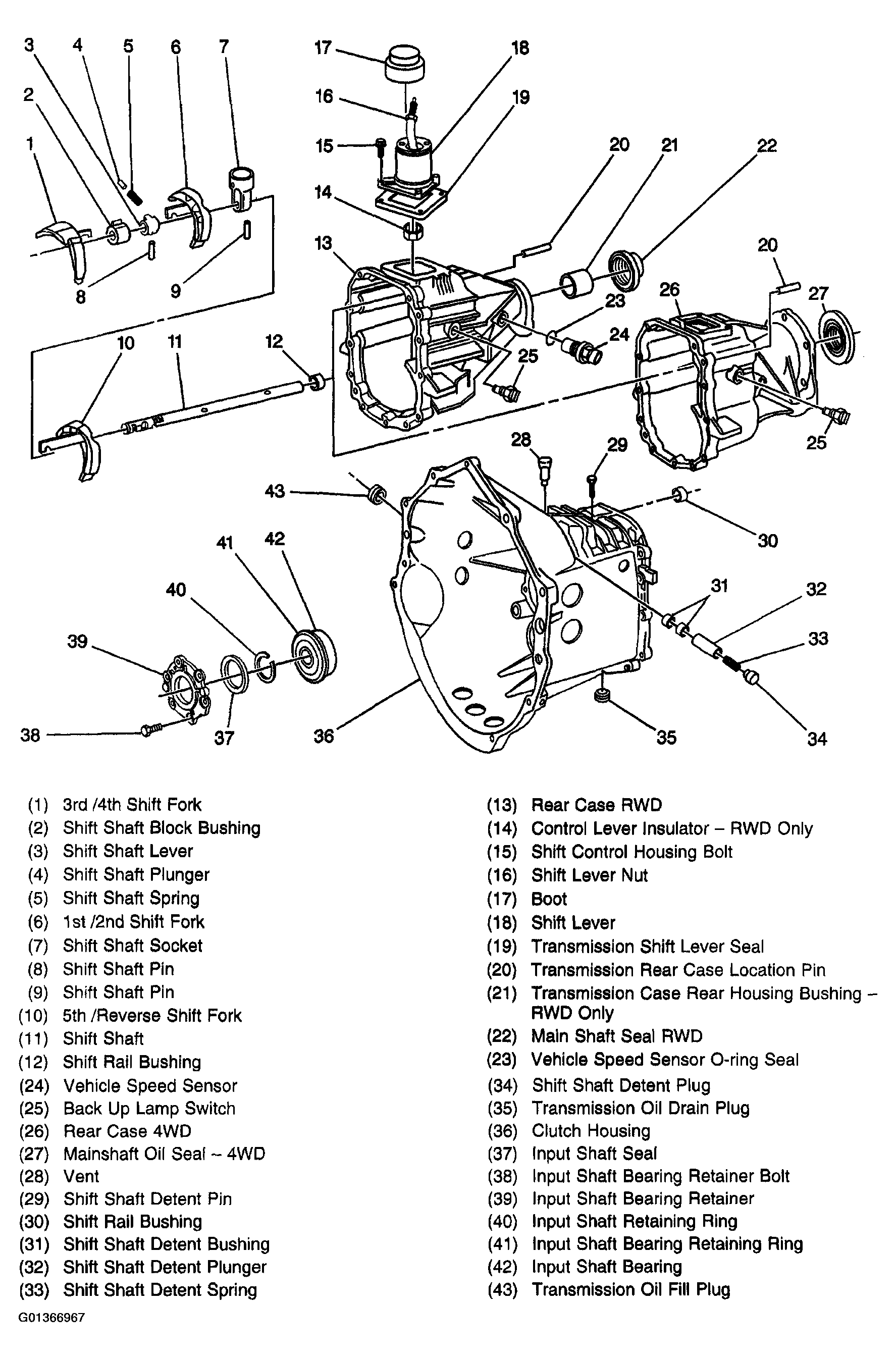

Fig 1: Transmission Cases & Shift Controls Components
G01366967Courtesy of GENERAL MOTORS CORP.

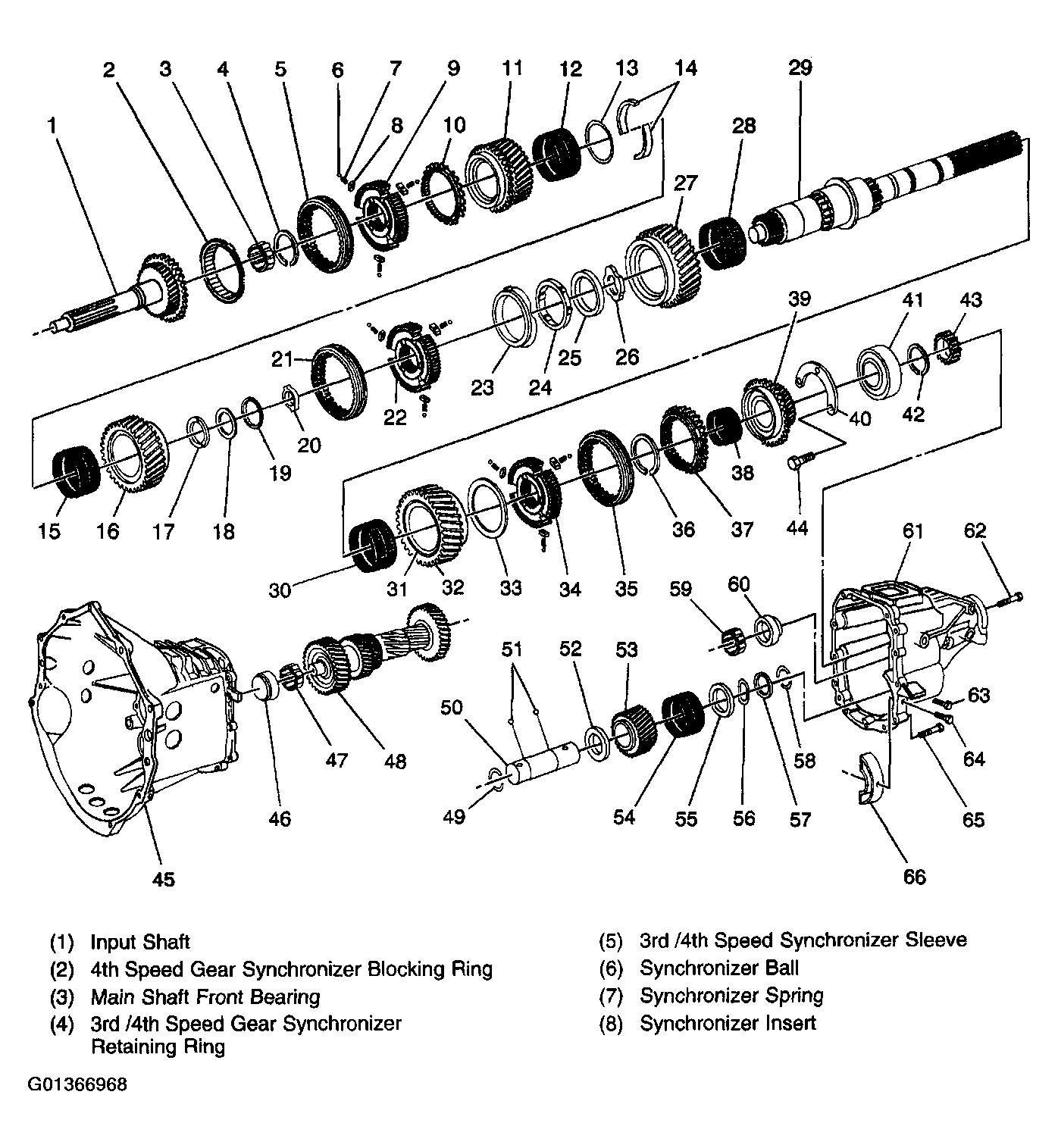

Fig 2: Transmission Gears Components
G01366968Courtesy of GENERAL MOTORS CORP.

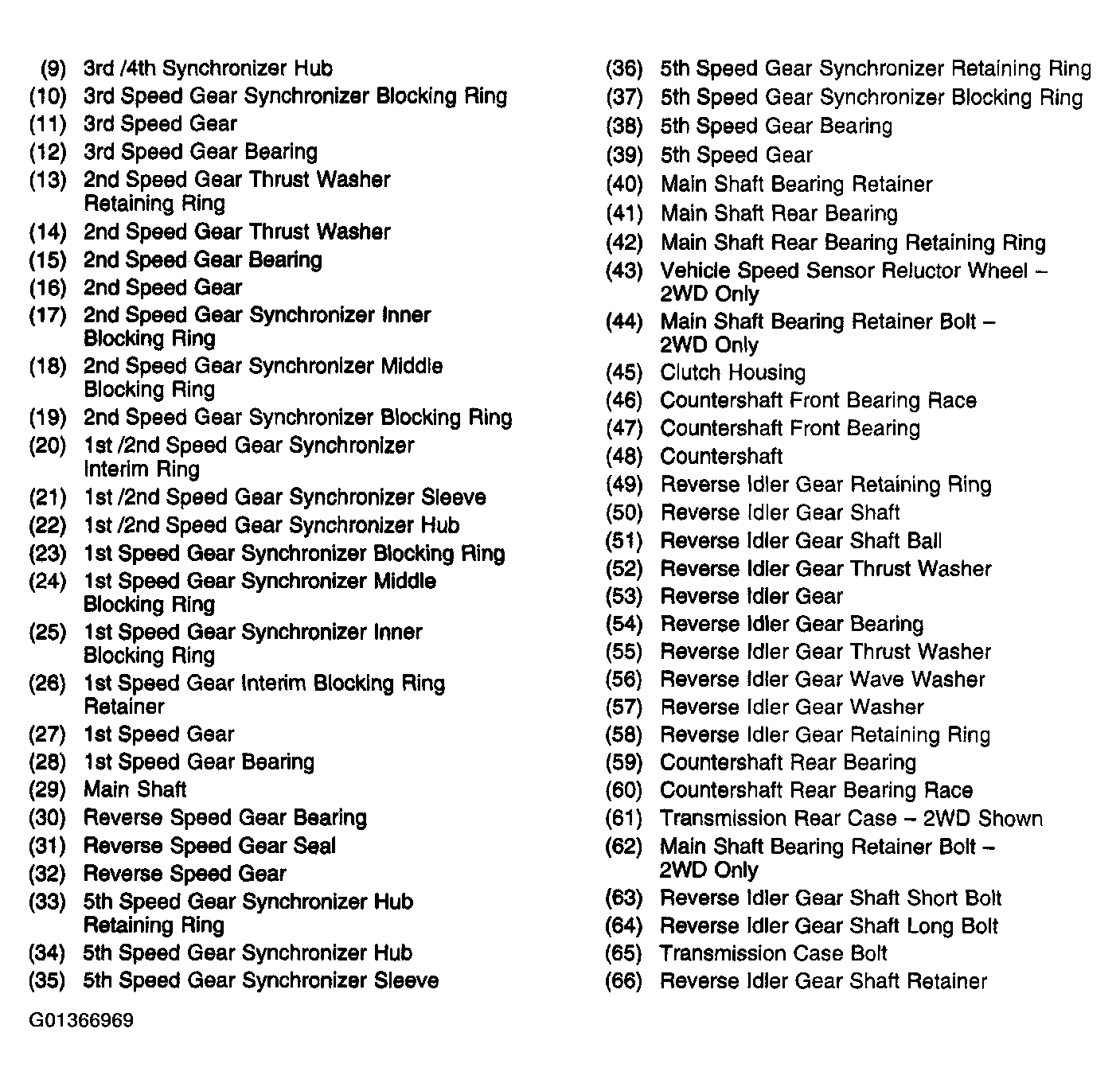

Fig 3: Transmission Gears
G01366969Courtesy of GENERAL MOTORS CORP.
