Removal Procedure

  1. Disconnect the driver-side seat belt buckle electrical connector.

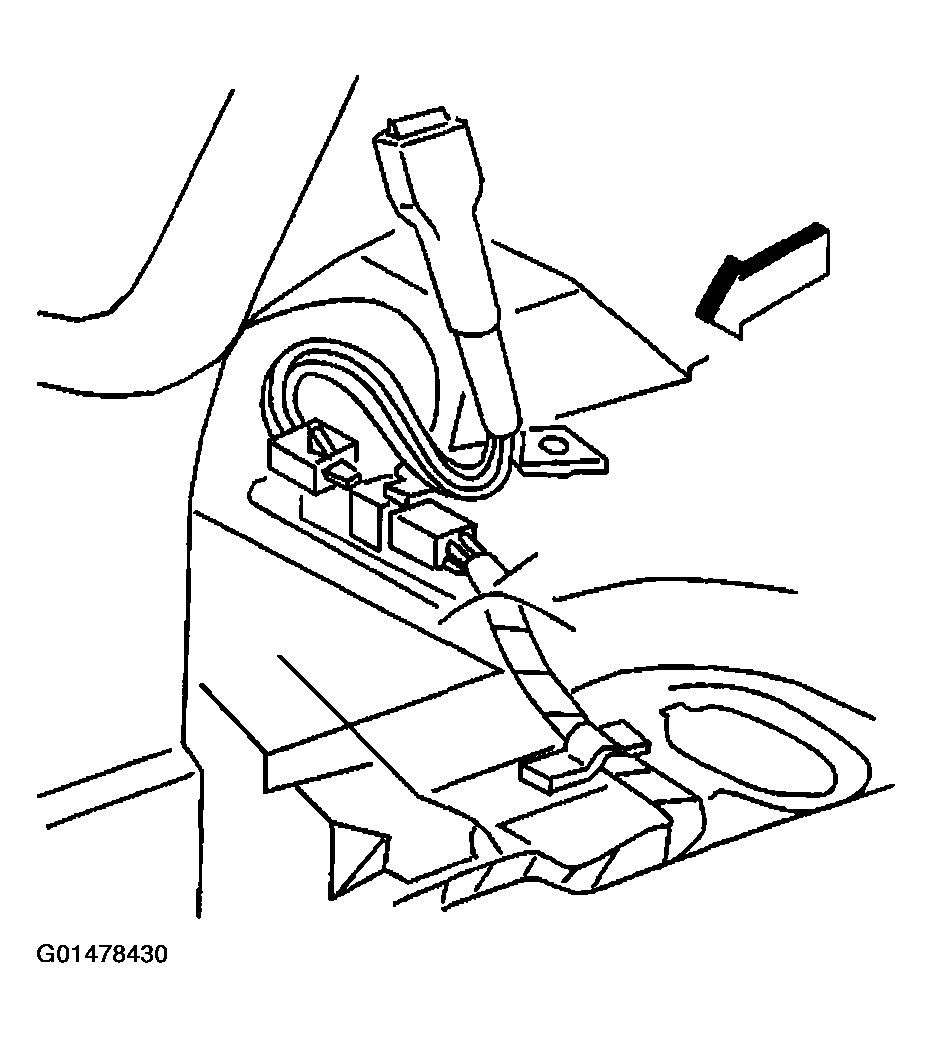

    Fig 1: Disconnecting Driver-Side Seat Belt Buckle Electrical Connector
    G01478430Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt that retains the driver-side seat belt buckle or buckles to the seat.
  3. Remove the driver-side seat belt buckle or buckles from the seat.

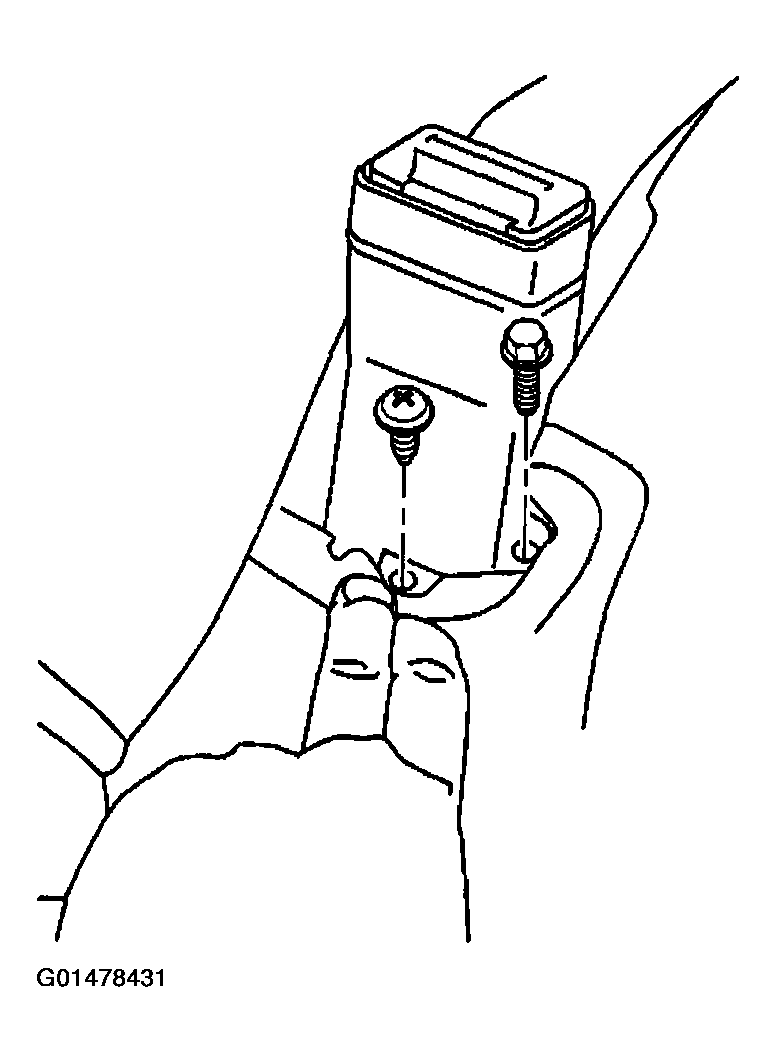

    Fig 2: Removing Driver-Side Seat Belt Buckle & Bolts
    G01478431Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt that retains the passenger-side seat belt buckle or buckle and belt assembly to the seat.
  5. Remove the passenger-side seat belt buckle or buckle and belt assembly from the seat.

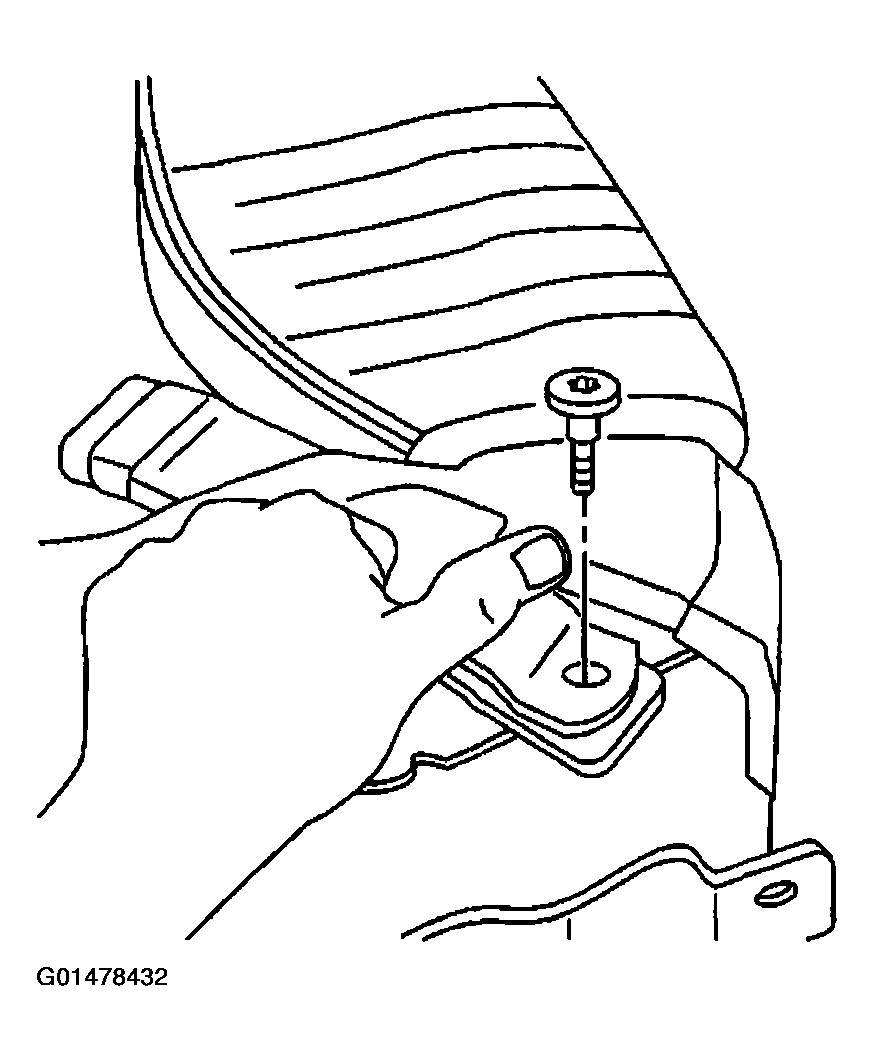

    Fig 3: Removing Passenger-Side Seat Belt Buckle & Bolt
    G01478432Courtesy of GENERAL MOTORS CORP.
