Installation Procedure

  1. Install the passenger-side seat belt buckle or buckle and belt assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt that retains the passenger-side seat belt buckle or buckle and belt assembly to the vehicle.

    Tighten

    Tighten the seat belt buckle or buckle and belt assembly bolt to 70 N.m (52 lb ft).

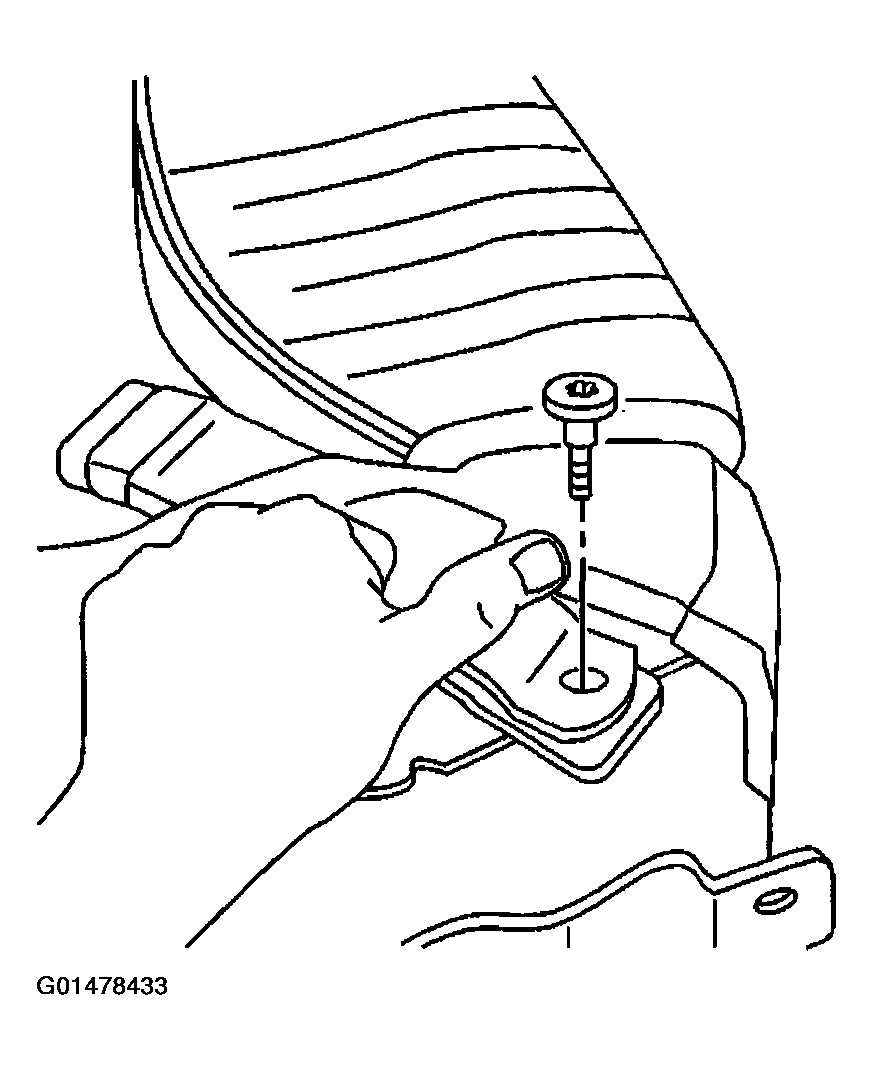

    Fig 1: Installing Passenger-Side Seat Belt Buckle & Bolt
    G01478433Courtesy of GENERAL MOTORS CORP.
  3. Install the driver-side seat belt buckle or buckles to the seat.
  4. Install the bolt that retains the driver-side seat belt buckle or buckles to the seat.

    Tighten

    Tighten the seat belt buckle or buckles bolt to 70 N.m (52 lb ft).

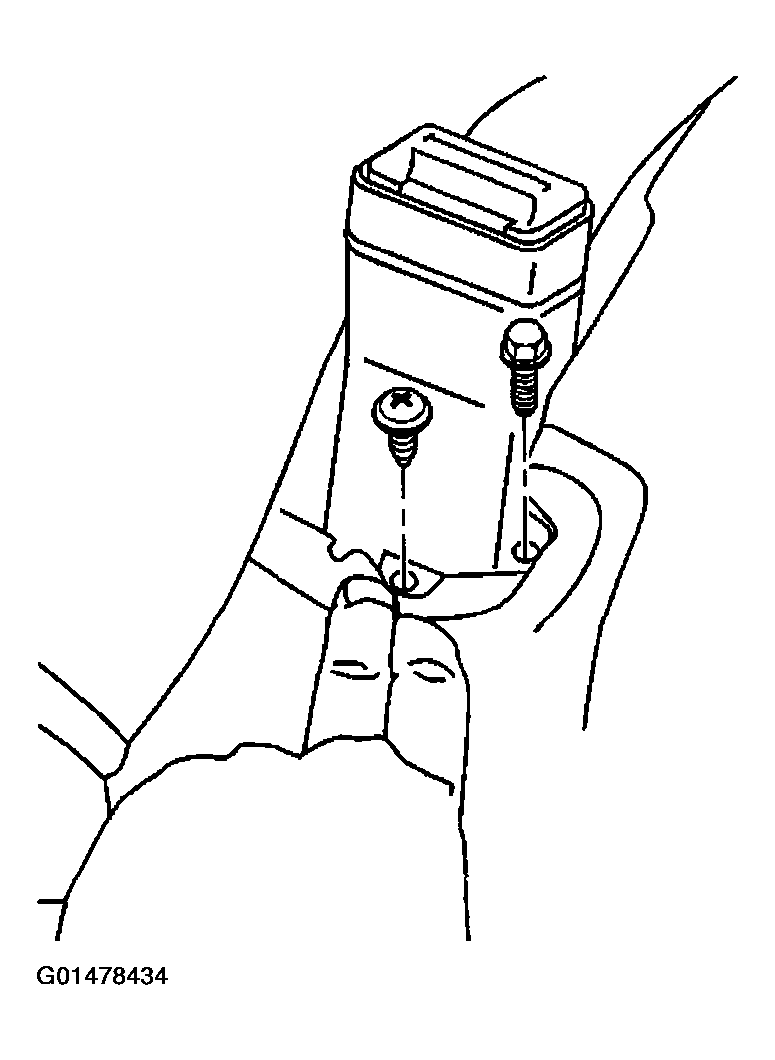

    Fig 2: Installing Driver-Side Seat Belt Buckle & Bolts
    G01478434Courtesy of GENERAL MOTORS CORP.
  5. Connect the driver-side seat belt buckle electrical connector.

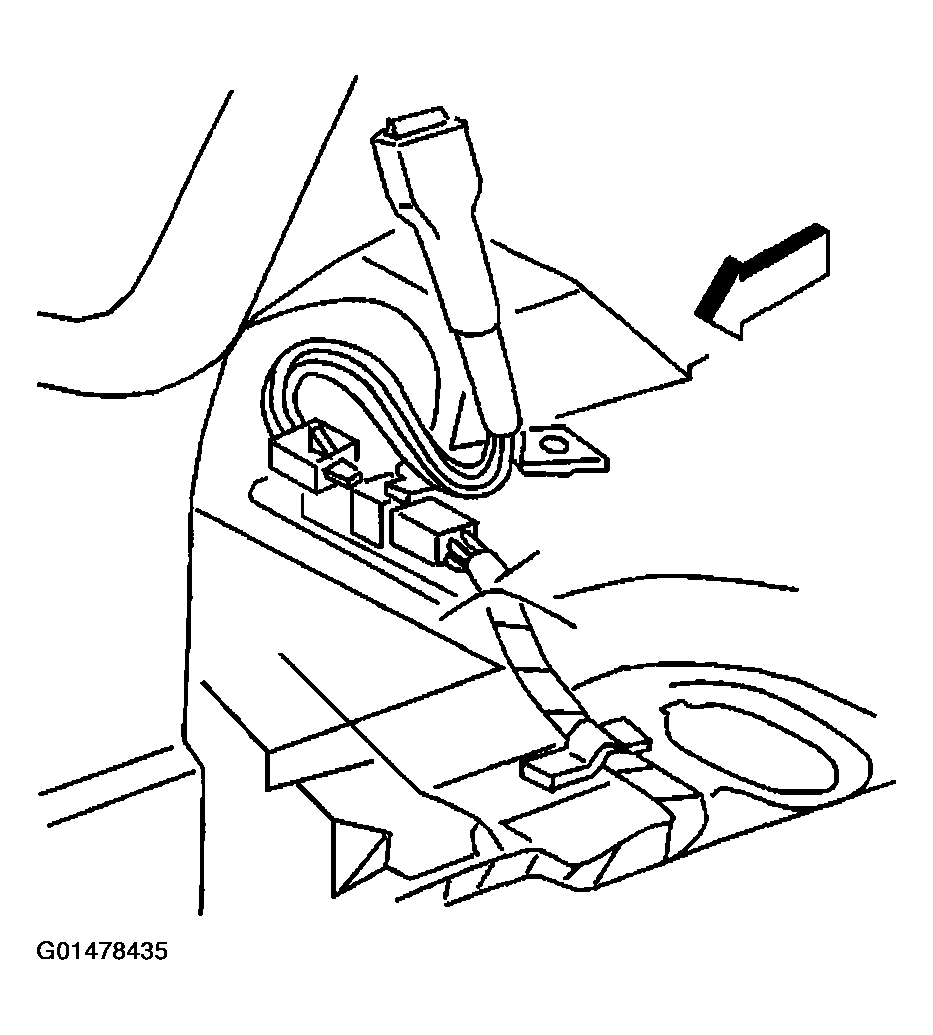

    Fig 3: Connecting Driver-Side Seat Belt Buckle Electrical Connector
    G01478435Courtesy of GENERAL MOTORS CORP.
