Fuse Block Underhood Connector End View C3

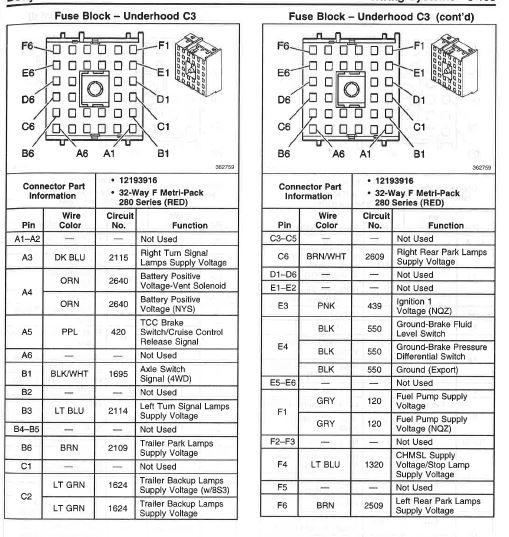

Fig 1: Fuse Block Underhood Connector End View C3

G00565926

Courtesy of GENERAL MOTORS CORP.
