Front Axle Vacuum Solenoid Connector End View

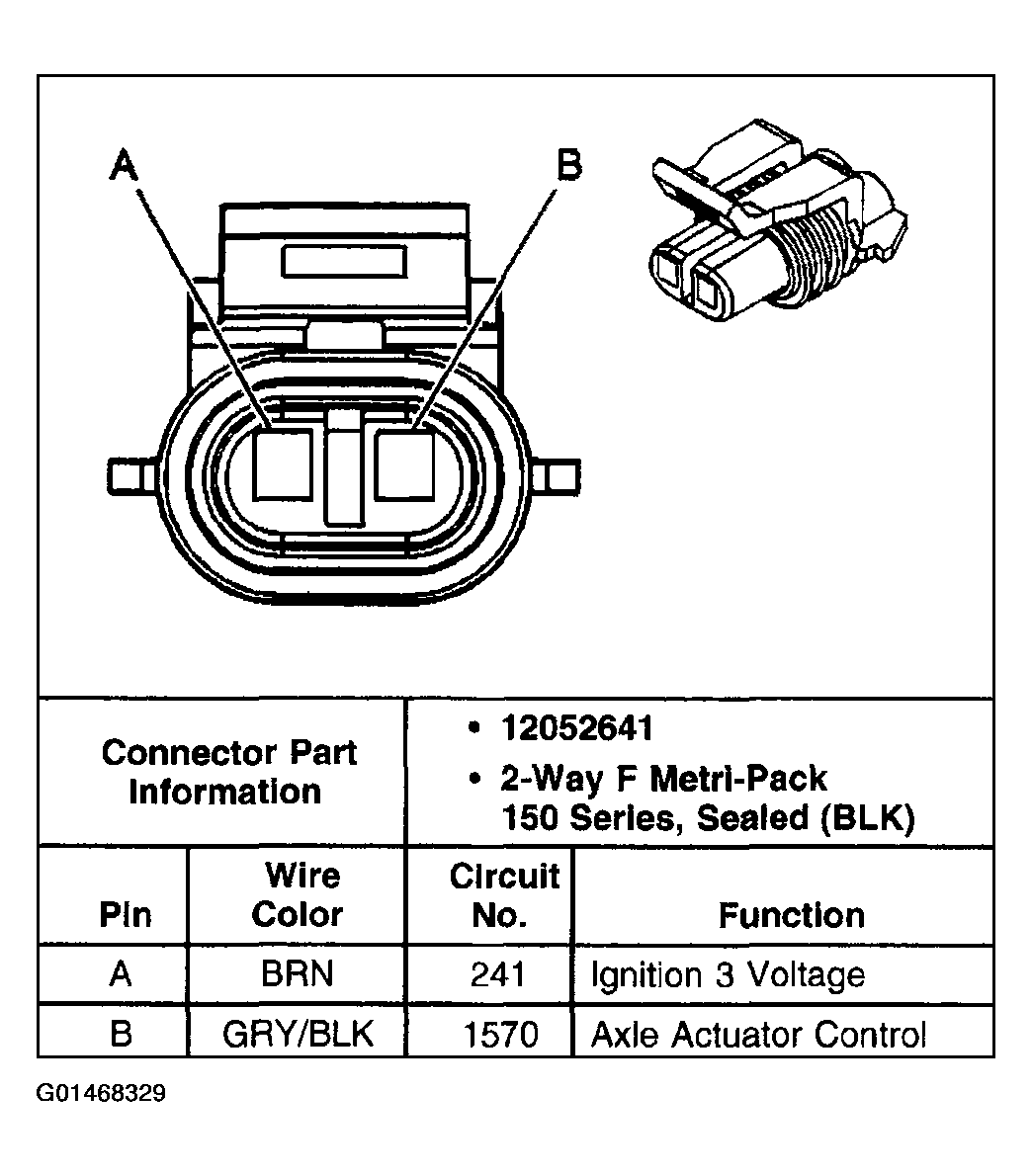

Fig 1: Front Axle Vacuum Solenoid Connector End View

G01468329

Courtesy of GENERAL MOTORS CORP.
