A/C Refrigerant Pressure Sensor Connector End View (2.2L)

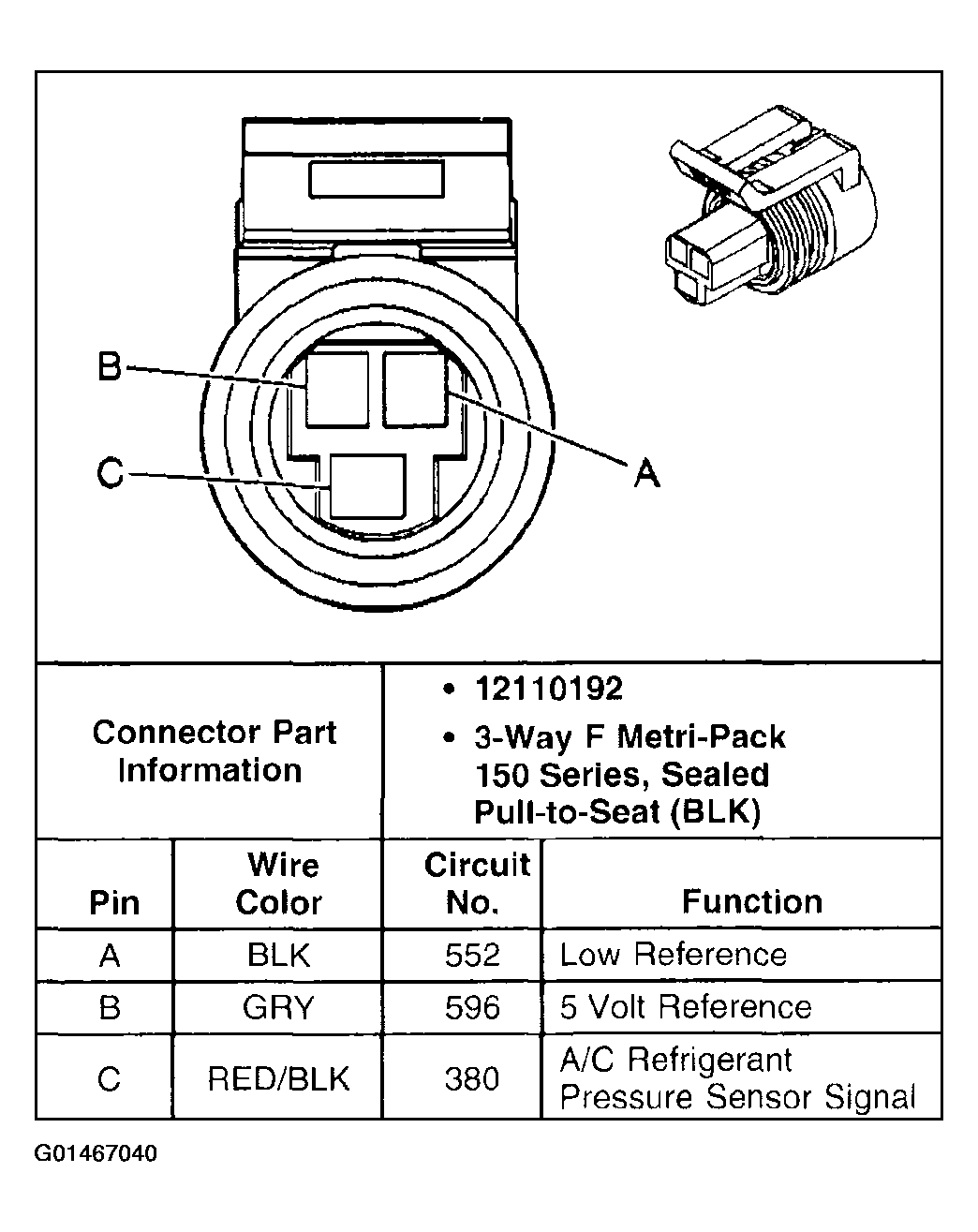

Fig 1: A/C Refrigerant Pressure Sensor Connector End View (2.2L)

G01467040

Courtesy of GENERAL MOTORS CORP.
