Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .

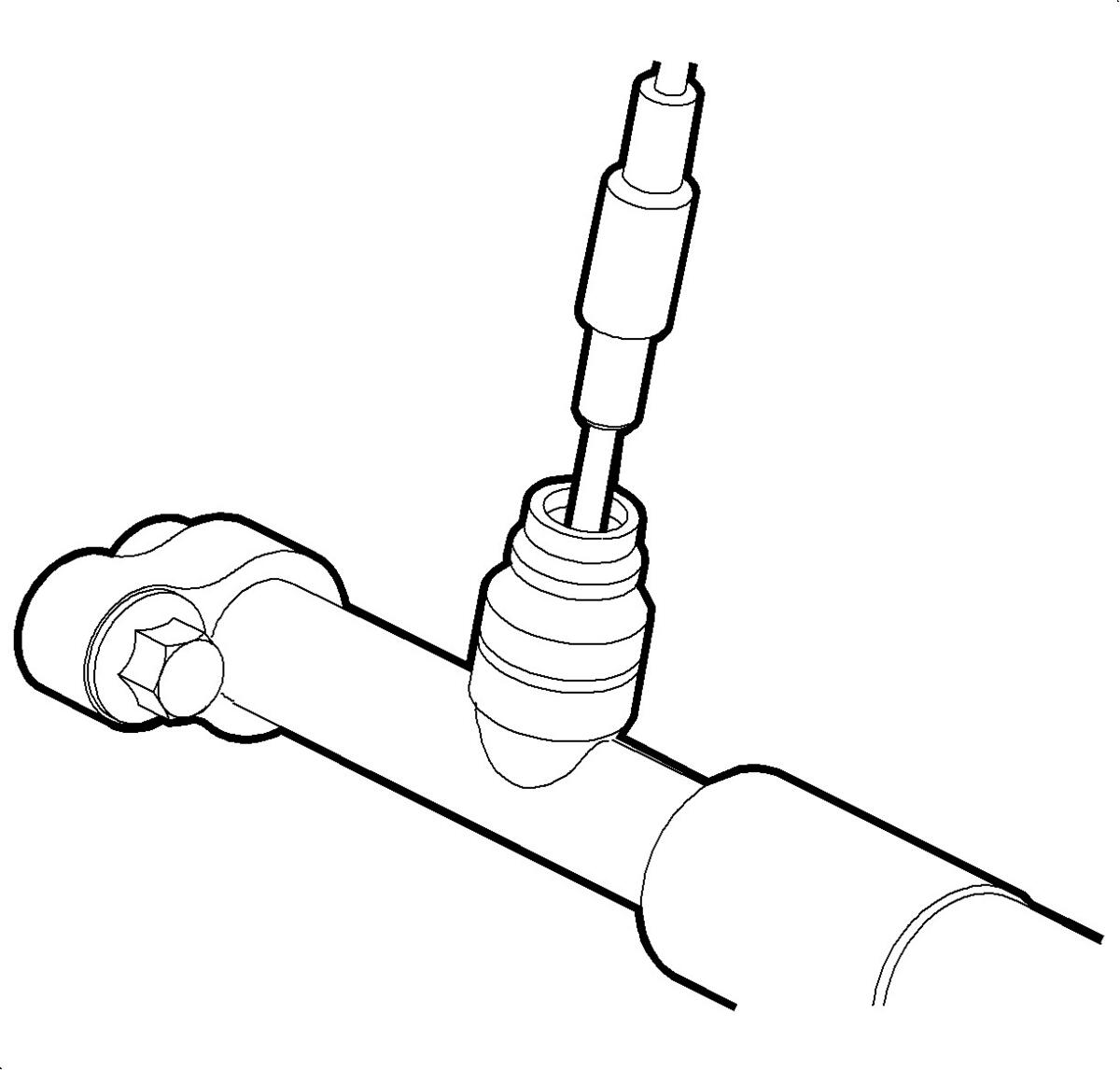

    2. Fig 1: Equivalent & Valve Core
    GM931210Courtesy of GENERAL MOTORS CORP.
  2. Use J 46246  or equivalent to remove the valve core. See Special Tools .
