Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air inlet assembly.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the air inlet assembly screws.

    Tighten:  Tighten the screws to 1 N.m (9 lb in).

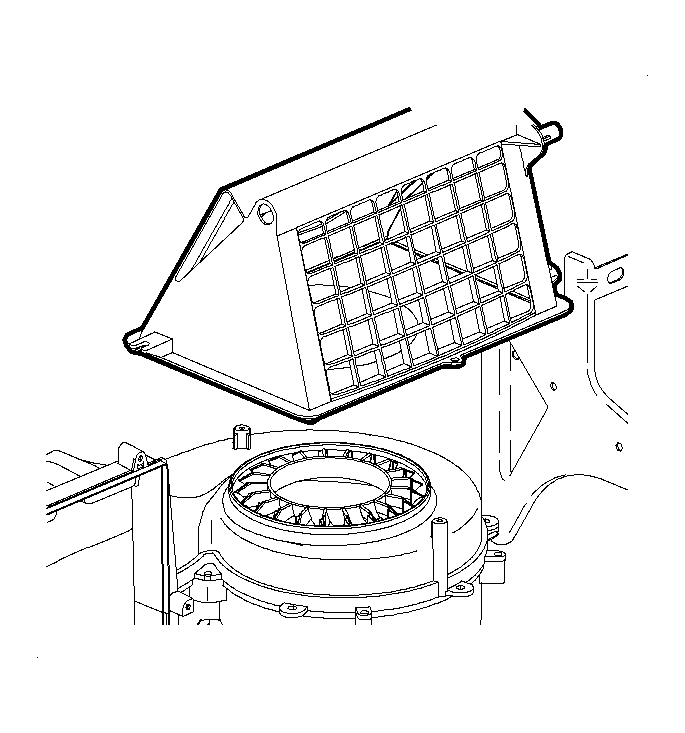

    3. Fig 1: Air Inlet Assembly
    GM932977Courtesy of GENERAL MOTORS CORP.
  3. Install the recirculation actuator.
  4. Install the recirculation actuator screws.

    Tighten:  Tighten the screws to 1 N.m (9 lb in).

    5. Fig 2: Electrical Connector & Recirculation Actuator
    GM933004Courtesy of GENERAL MOTORS CORP.
  5. Route the HVAC module harness through the end bracket bottom hole and install the bracket.
  6. Install the end bracket screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  7. Install the end bracket nuts.

    Tighten:  Tighten the nuts to 2 N.m (18 lb in).

  8. Clip the wire harness to the end bracket.
  9. Install the electrical connector to the recirculation actuator.
  10. Install the HVAC module. Refer to HVAC Module Assembly Replacement .
