Installation Procedure

  1. Install the ground strap.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the ground strap bolt to the cowl.

    Tighten

    Tighten the ground strap to cowl bolt to 17 N.m (12 lb ft).

  3. Raise the vehicle.

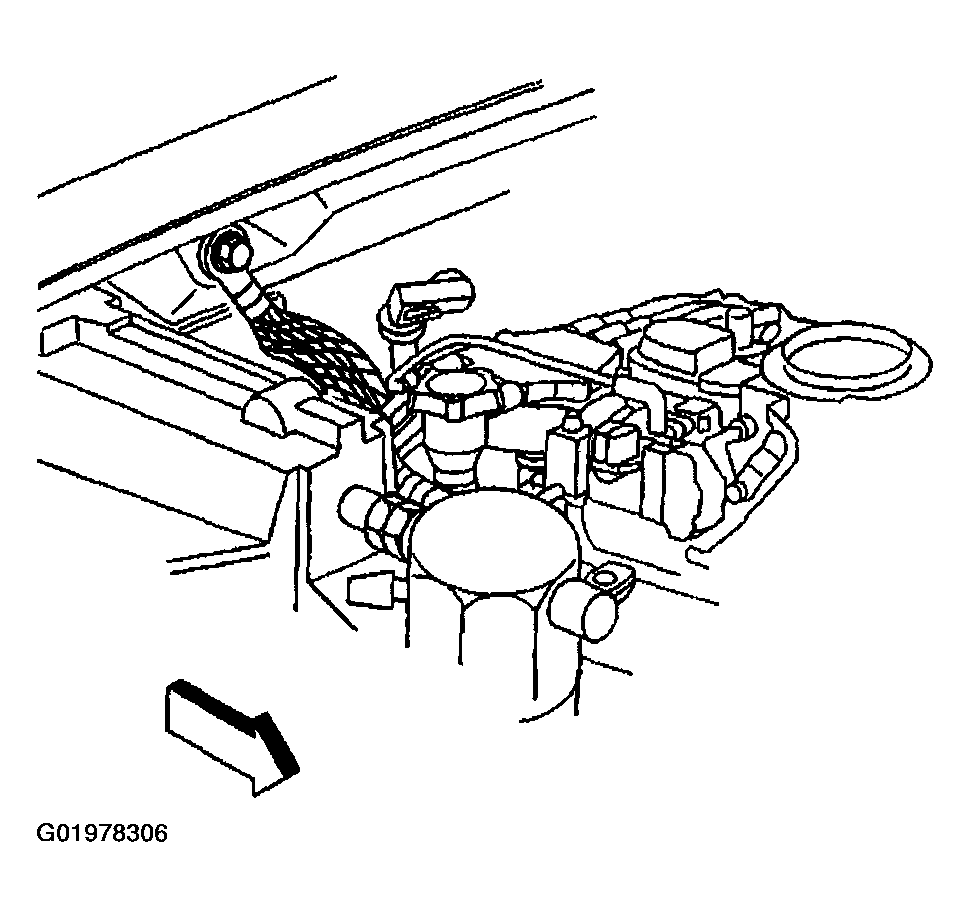

    Fig 1: Installing Ground Strap Bolt To Cowl
    G01978306Courtesy of GENERAL MOTORS CORP.
  4. Install the ground strap bolt to the engine.

    Tighten

    Tighten the ground strap bolt to 50 N.m (37 lb ft).

  5. Lower the vehicle.

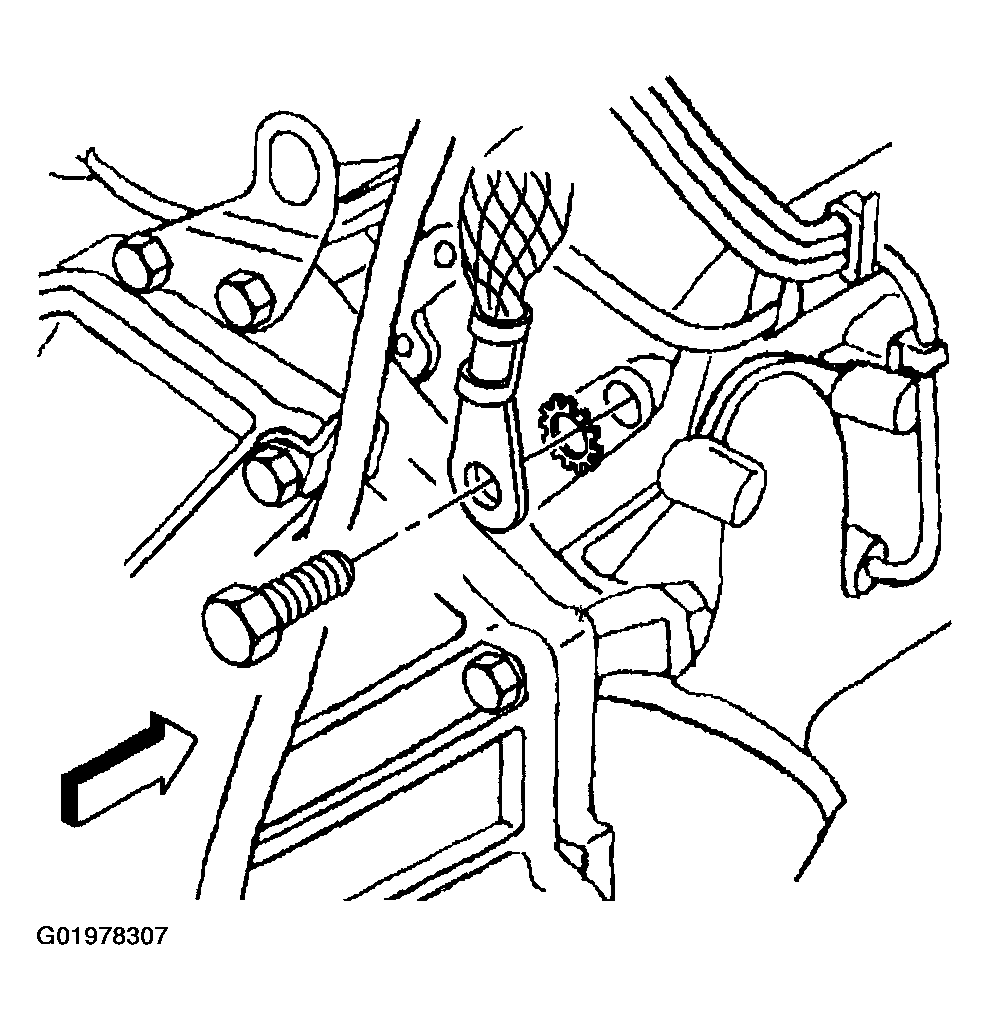

    Fig 2: Installing Ground Strap Bolt To Engine
    G01978307Courtesy of GENERAL MOTORS CORP.
