Installation Procedure

  1. Install the ground strap.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the ground strap bolt to the cowl.

    Tighten

    Tighten the ground strap to cowl bolt to 17 N.m (12 lb ft).

  3. Raise the vehicle.

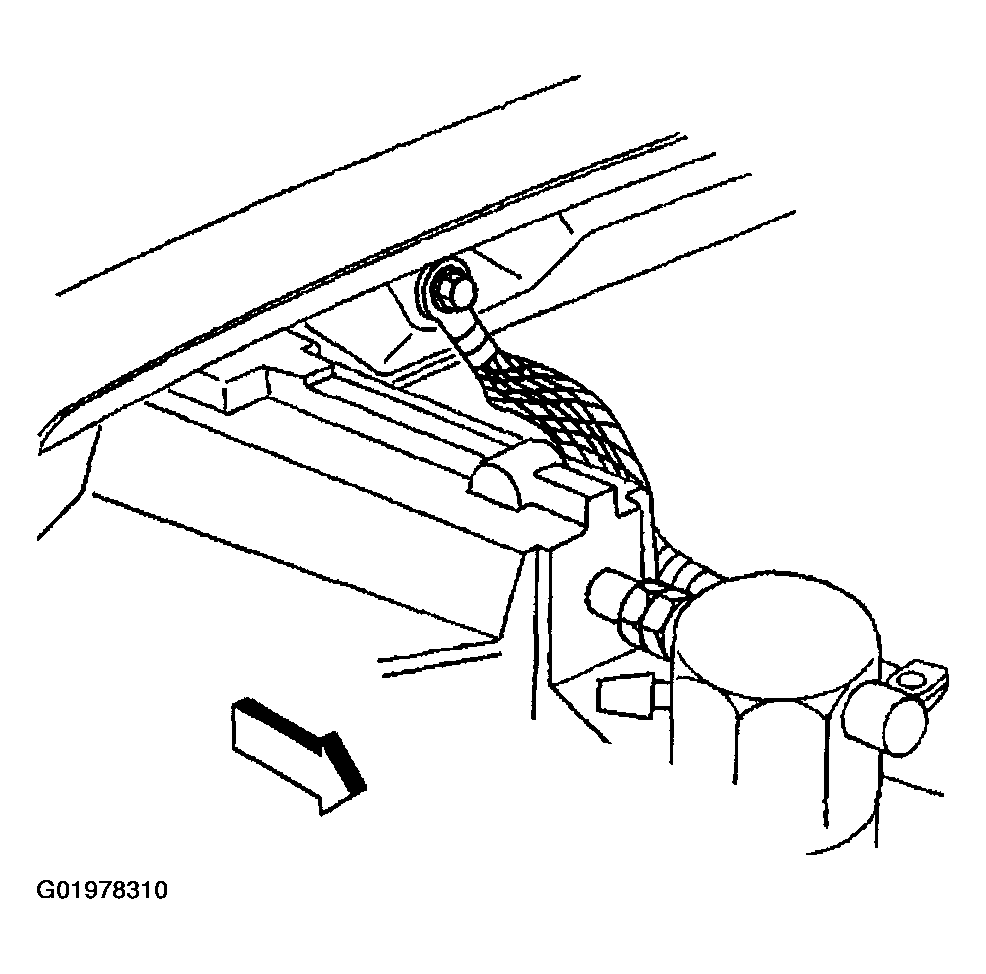

    Fig 1: Installing Ground Strap Bolt To Cowl
    G01978310Courtesy of GENERAL MOTORS CORP.
  4. Install the ground strap nut and bolt to the engine.

    Tighten

    Tighten the ground strap nut and bolt to 50 N.m (37 lb ft).

  5. Lower the vehicle.

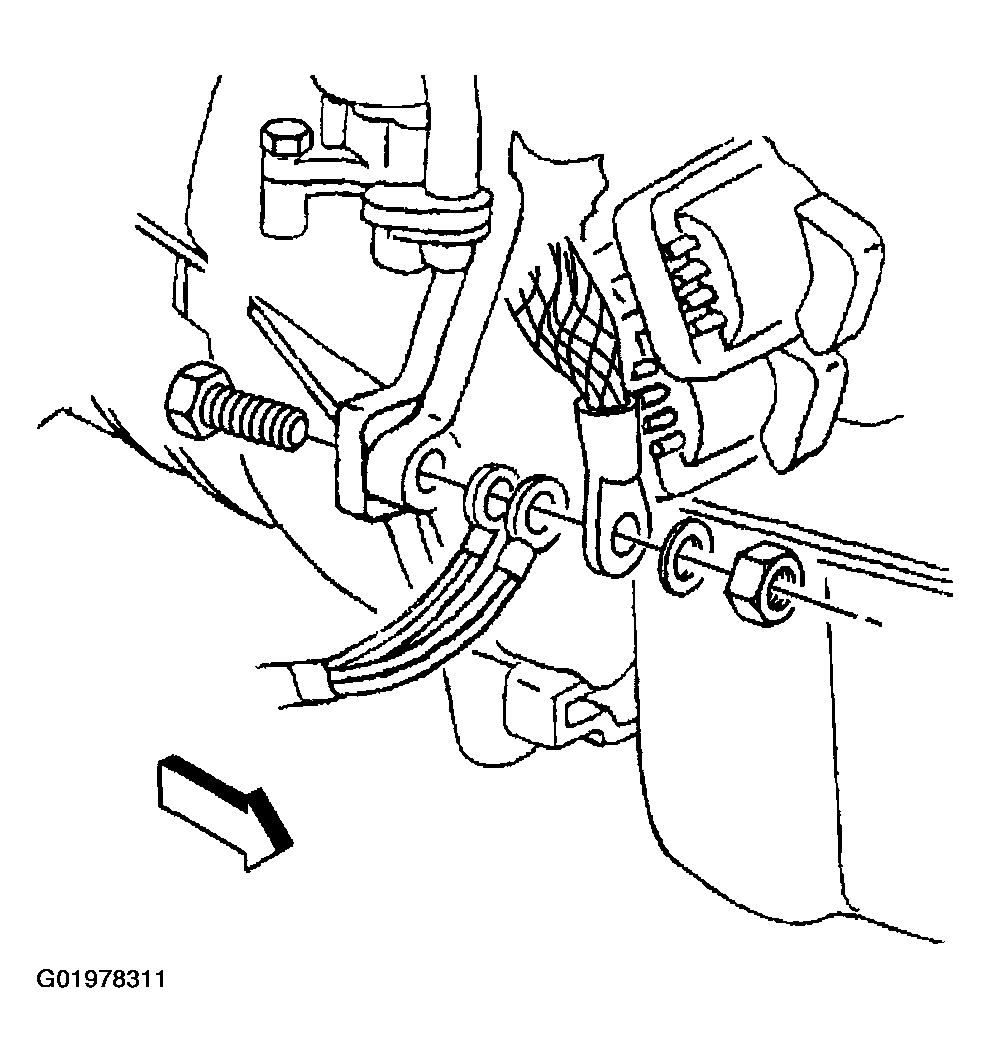

    Fig 2: Installing Ground Strap Nut And Bolt To Engine
    G01978311Courtesy of GENERAL MOTORS CORP.
