Removal Procedure

  1. Remove the door opening weatherstrip from the door opening.
  2. Gently pull the weatherstrip from the pinch weld flange.

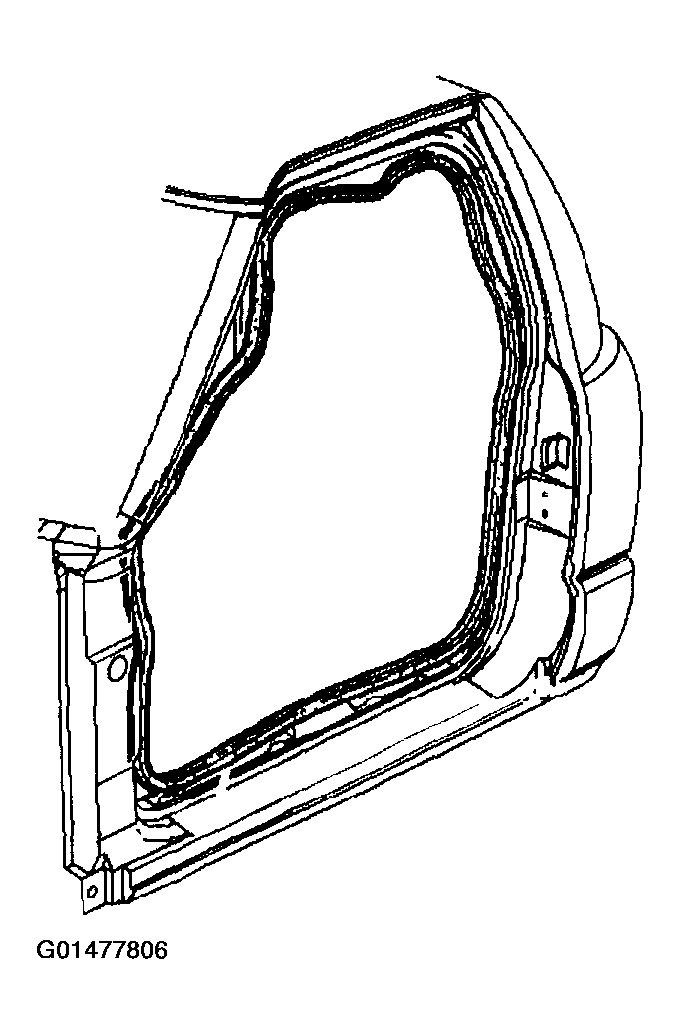

    Fig 1: Removing Door Opening Weatherstrip From Door Opening
    G01477806Courtesy of GENERAL MOTORS CORP.
