Removal Procedure

  1. Remove the rear side door upper latch striker cover, use a flat-bladed tool to release the retainers from the roof panel.
    Fig 1: Rear Side Door Upper Latch Striker Cover
    G01477769Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts retaining the striker to roof panel.
  3. Remove the striker and shim(s) from the roof panel.

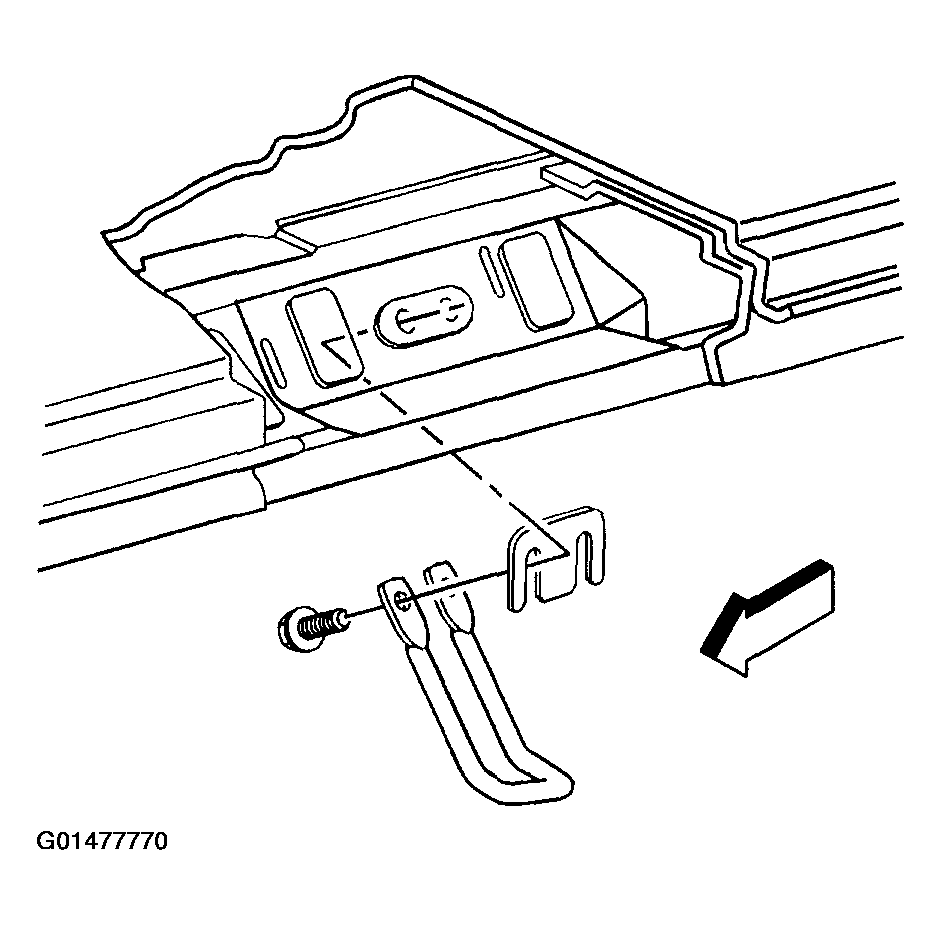

    Fig 2: Removing Striker & Shim(s) From Roof Panel
    G01477770Courtesy of GENERAL MOTORS CORP.
