Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (UTILITY)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY)
  2. Release both lock rods from the lock rod retainers (1) on the handle.
  3. Remove the bolts retaining the latch control handle to the door.
  4. Remove the latch control handle from the door.

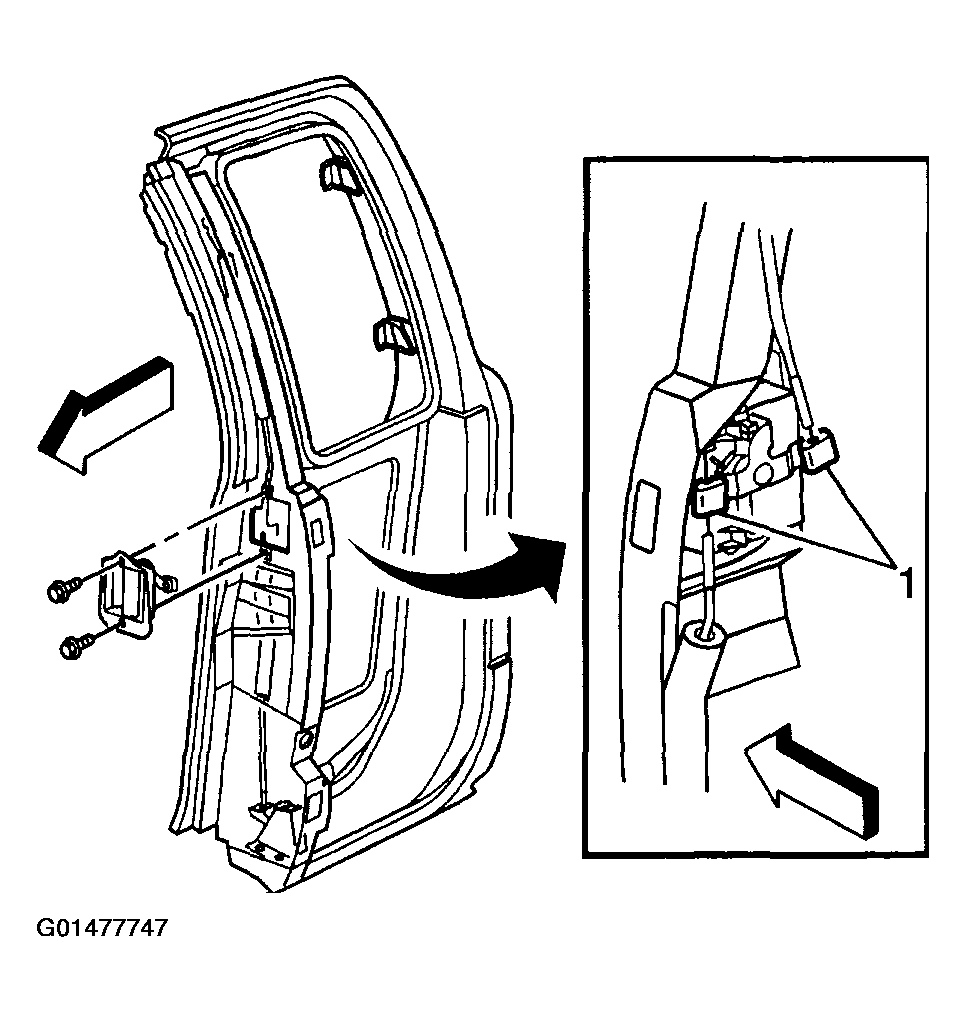

    Fig 1: Removing Latch Control Handle From Door
    G01477747Courtesy of GENERAL MOTORS CORP.
