Removal Procedure

  1. Remove the screws that retain the front trim molding to the door.
  2. Remove the trim molding from the door.
  3. Use the J 38778  in order to remove the rear trim moldings.
  4. Remove the retainers from the rear trim molding.

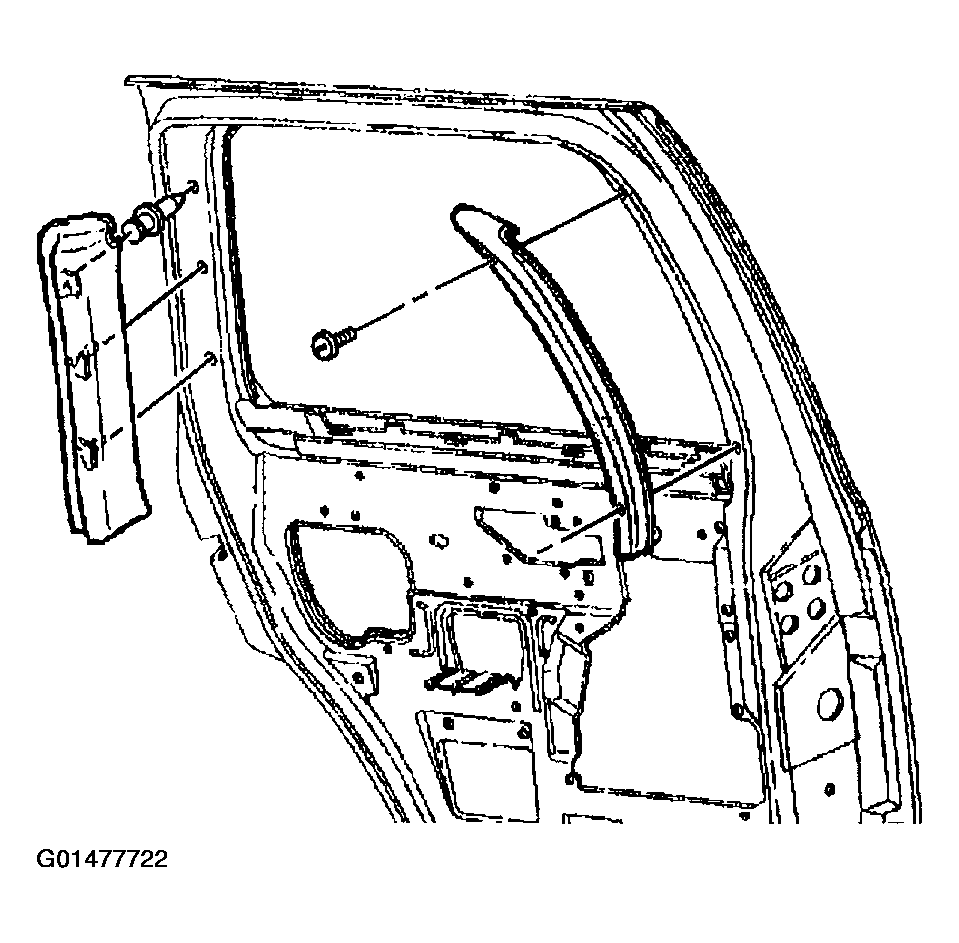

    Fig 1: Removing Front/Rear Trim Molding From Door
    G01477722Courtesy of GENERAL MOTORS CORP.
