Removal Procedure

  1. Remove the door trim panel from the door. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY) .
  2. Release the 4 tabs retaining the bezel to the trim panel.
  3. Remove the bezel from the trim panel.

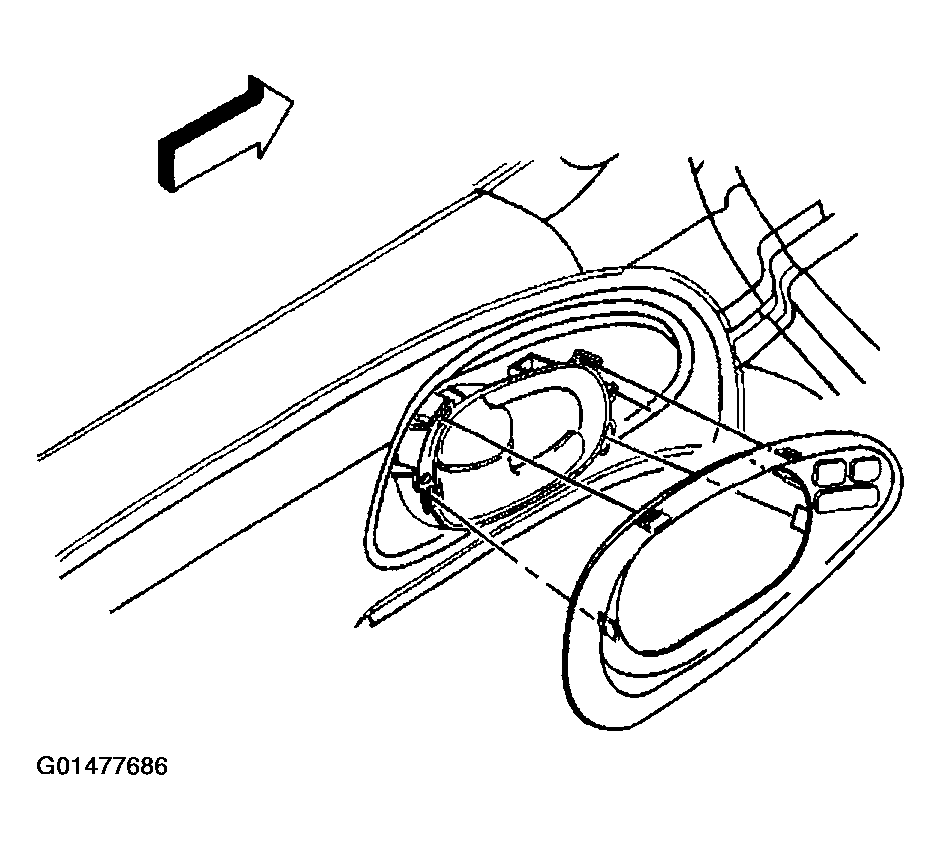

    Fig 1: Removing Door Handle Bezel From Trim Panel
    G01477686Courtesy of GENERAL MOTORS CORP.
