Removal Procedure

  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
    CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  3. Remove the battery ground negative cable and bolt from the battery 4.3L.

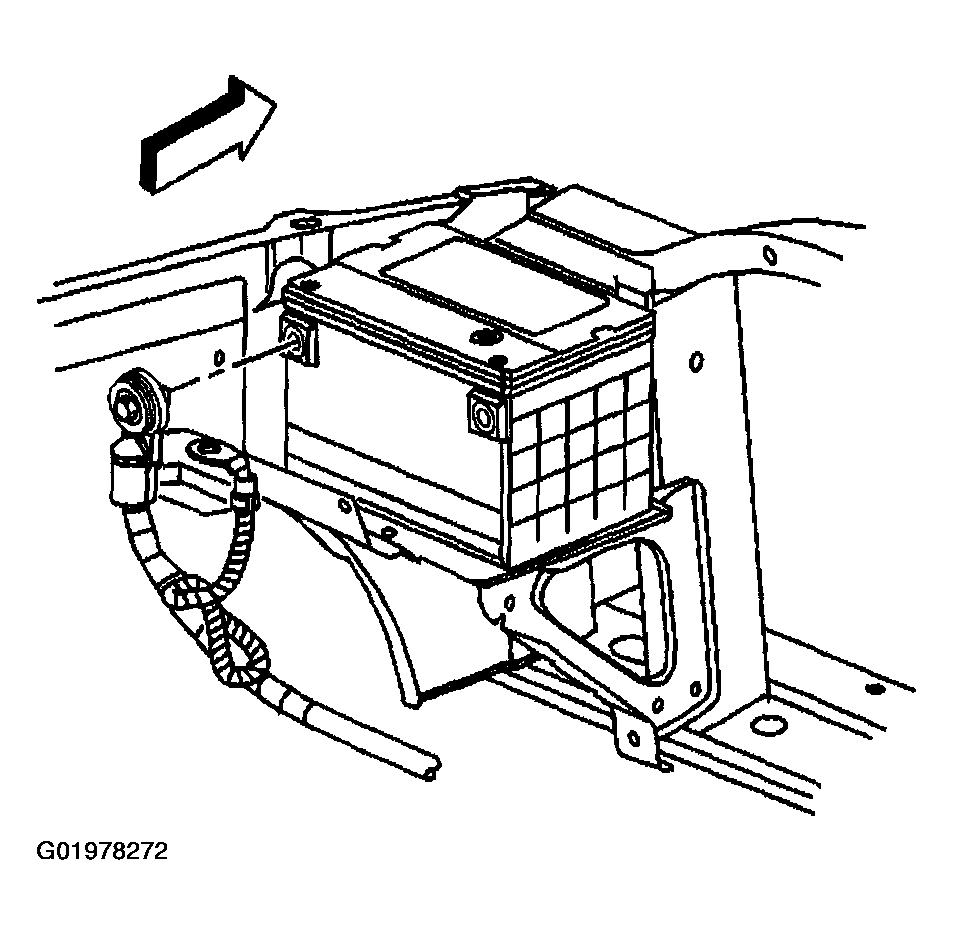

    Fig 1: Removing Battery Ground Negative Cable
    G01978272Courtesy of GENERAL MOTORS CORP.
