Jimmy 2D Utility, Part Time, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Trans
>>
Manual Transmission - NV 3500 (Unit Repair)
>>
Component Locator
>>
Disassembled Views
Disassembled Views

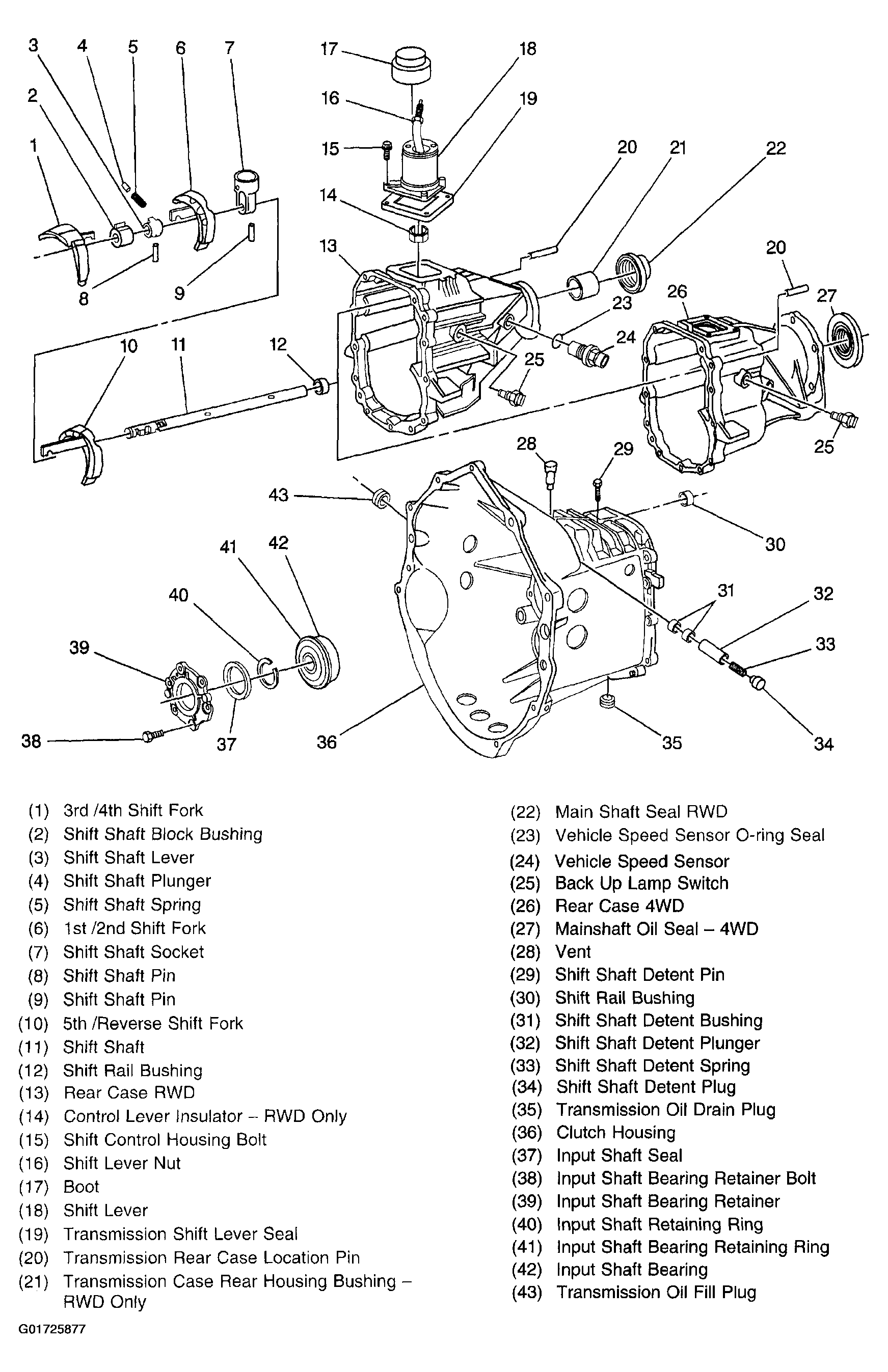

Fig 1: Transmission Cases & Shift Controls
Courtesy of GENERAL MOTORS CORP.

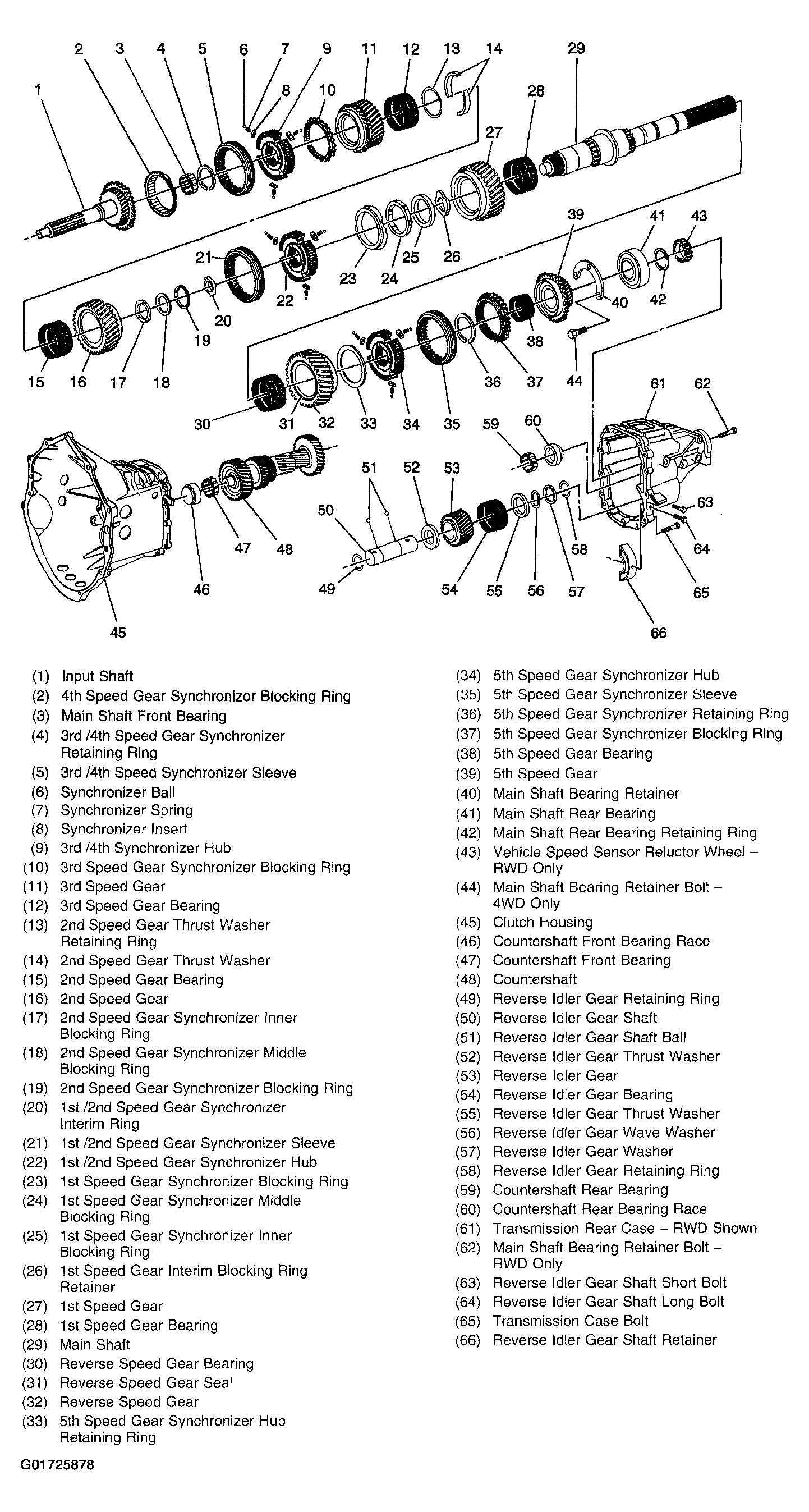

Fig 2: Transmission Gears
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
