Seat Horizontal Motor Connector End View - Driver

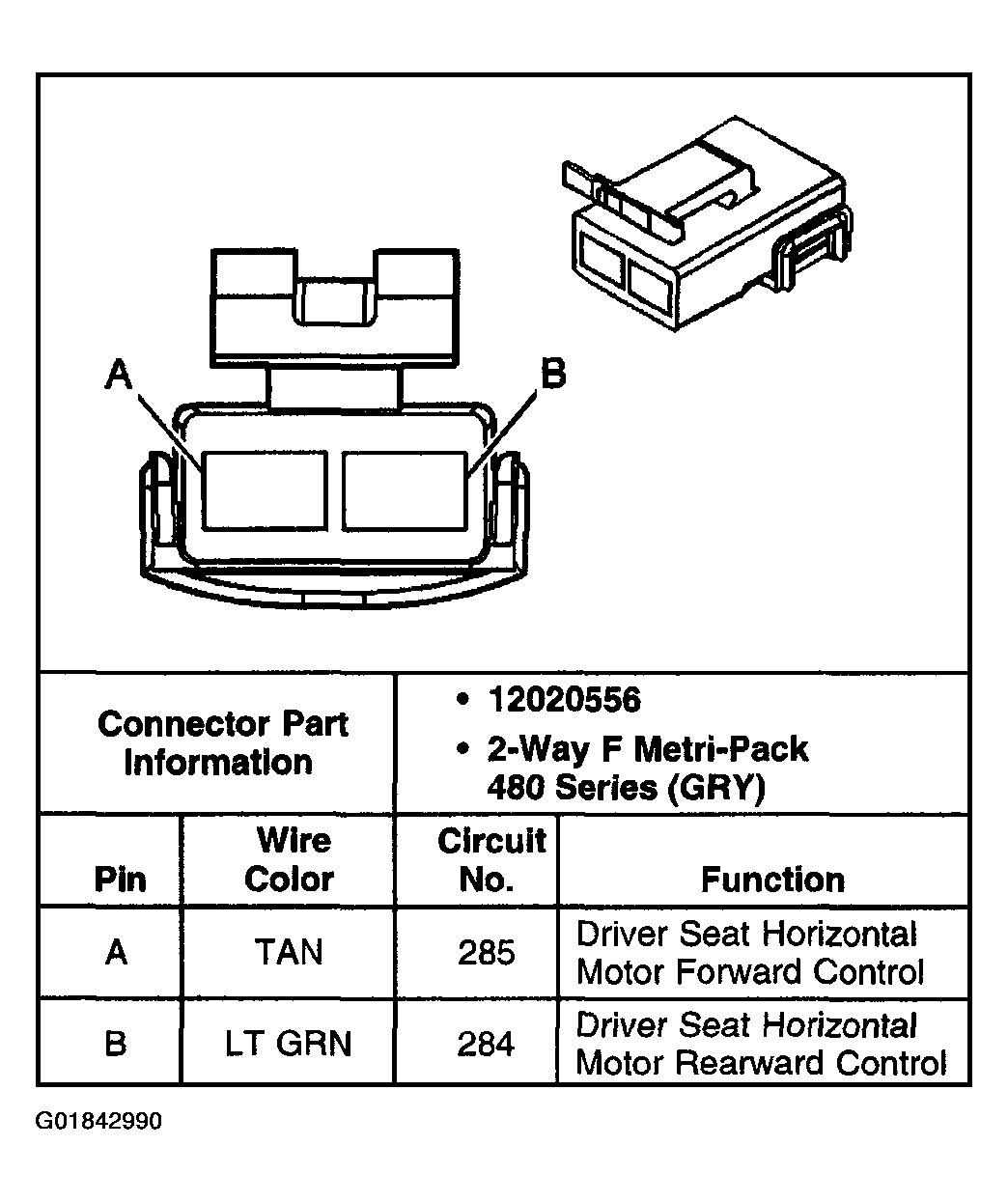

Fig 1: Seat Horizontal Motor Connector End View - Driver

G01842990

Courtesy of GENERAL MOTORS CORP.
