Marker Lamp Connector End View - Left Front

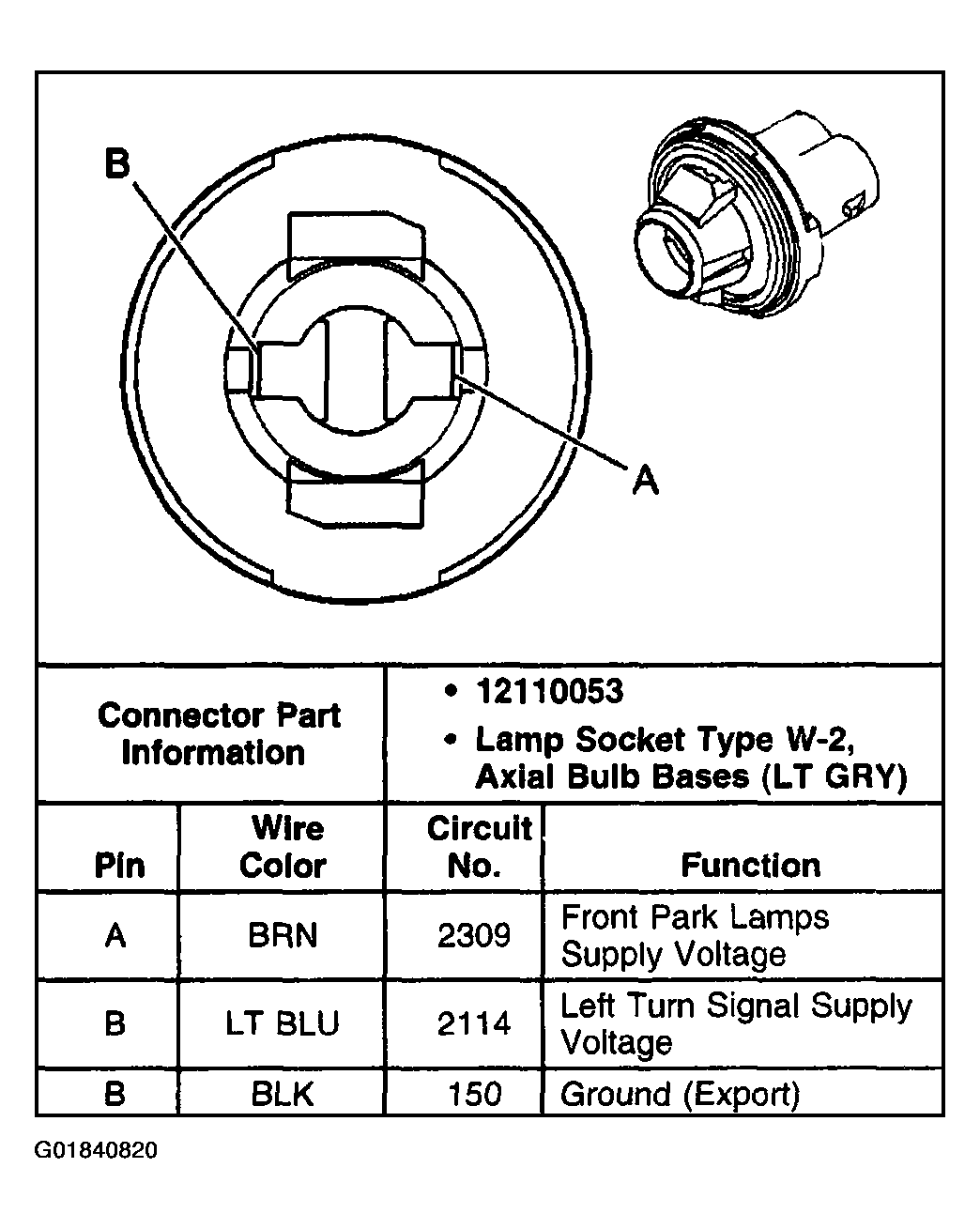

Fig 1: Marker Lamp Connector End View - Left Front

G01840820

Courtesy of GENERAL MOTORS CORP.
