Headlamp Leveling Switch Connector End View - Export Only

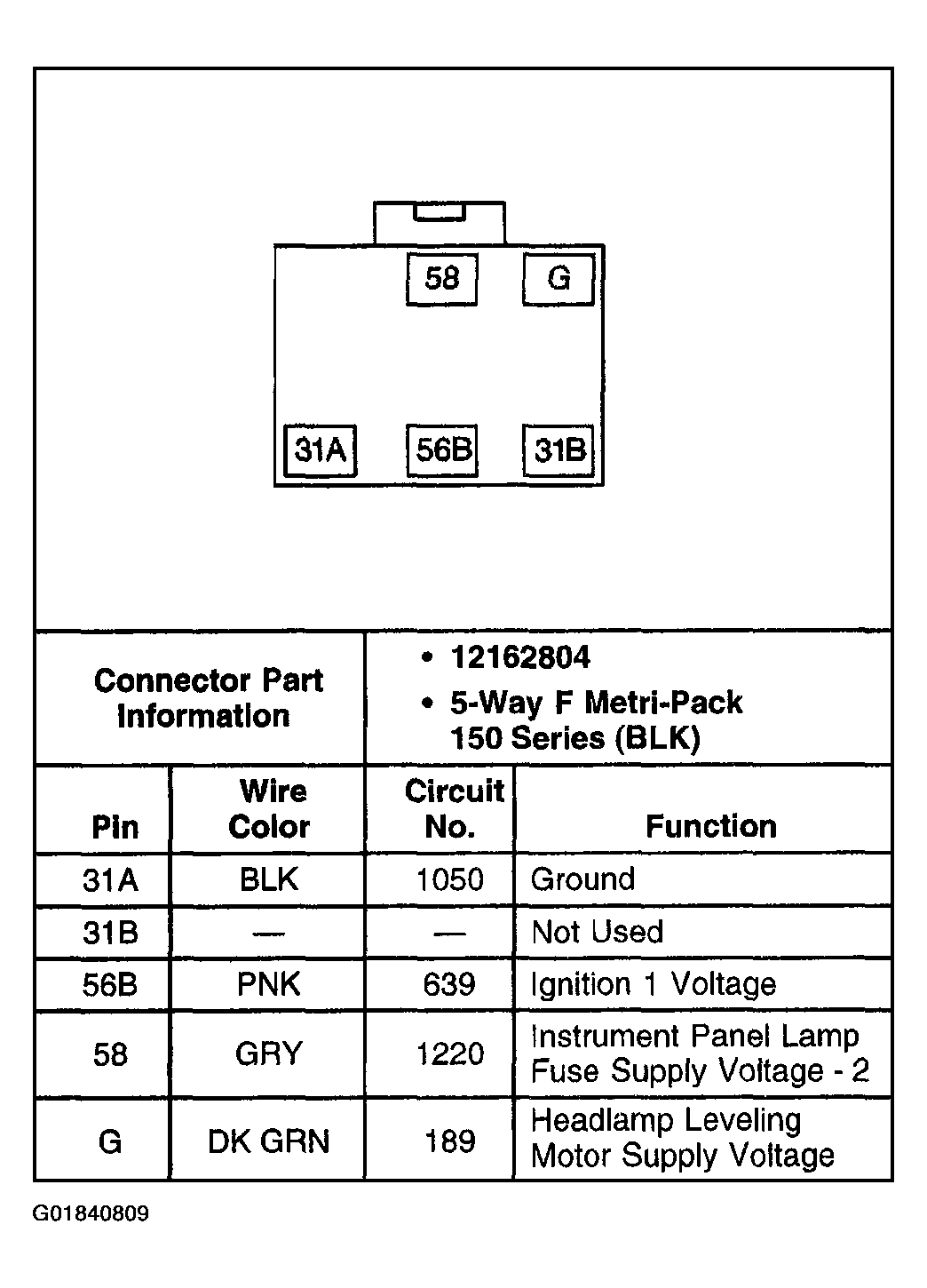

Fig 1: Headlamp Leveling Switch Connector End View - Export Only

G01840809

Courtesy of GENERAL MOTORS CORP.
