Fog Lamp Connector End View - Left Front

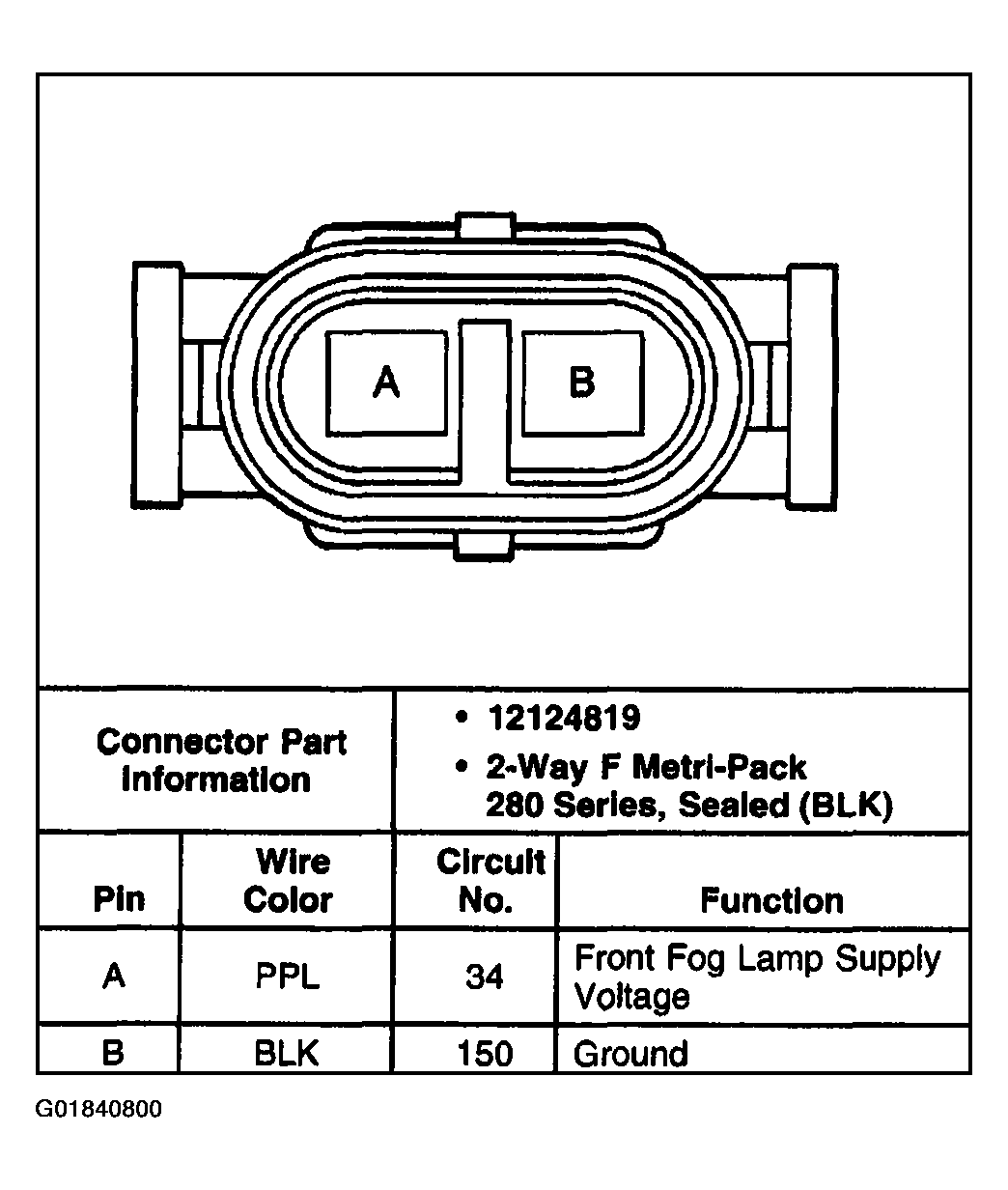

Fig 1: Fog Lamp Connector End View - Left Front

G01840800

Courtesy of GENERAL MOTORS CORP.
