Engine Oil Pressure (EOP) Sensor Connector End View

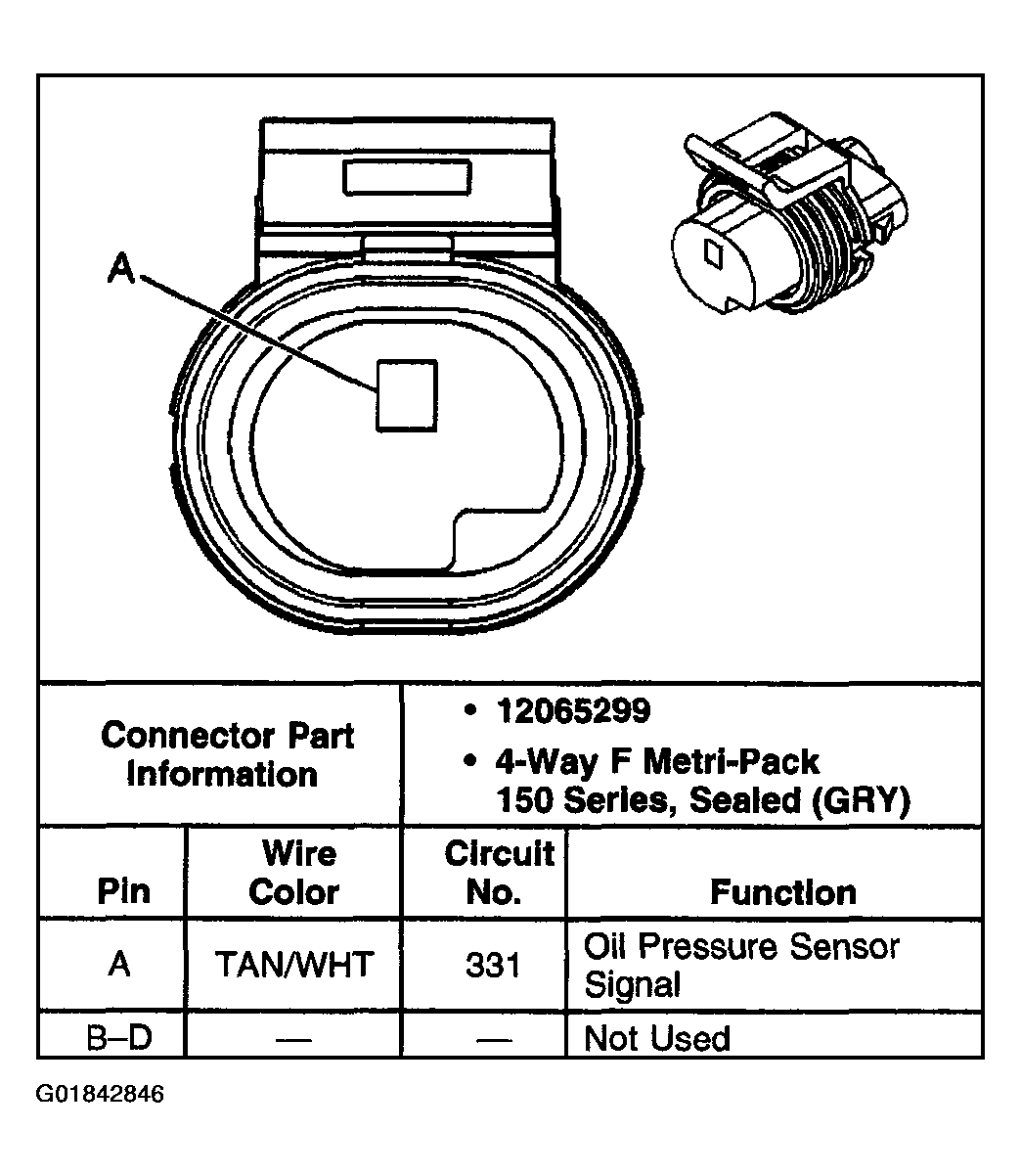

Fig 1: Engine Oil Pressure (EOP) Sensor Connector End View

G01842846

Courtesy of GENERAL MOTORS CORP.
