Courtesy Lamp Connector End View - Left/Right Console

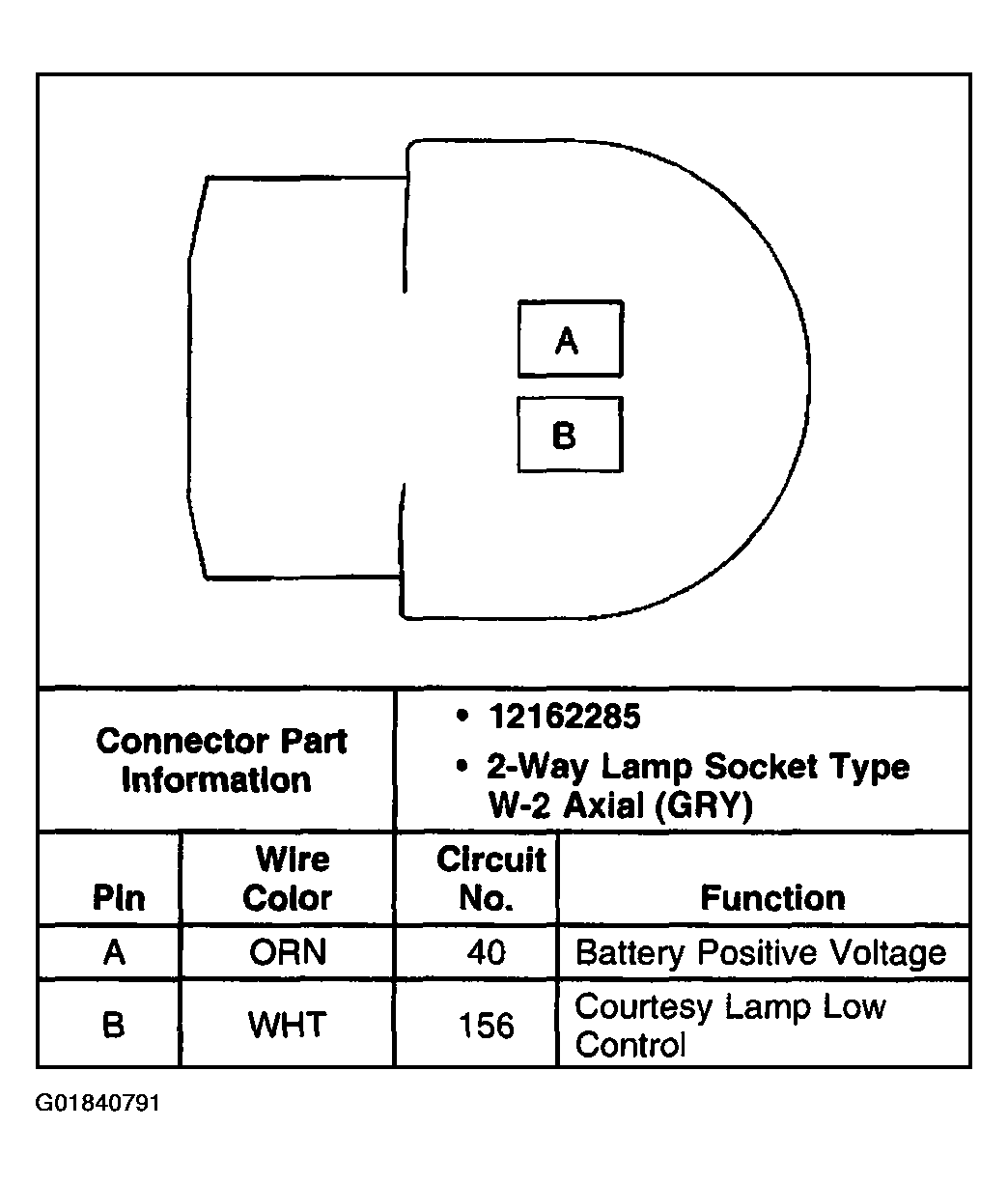

Fig 1: Courtesy Lamp Connector End View - Left/Right Console

G01840791

Courtesy of GENERAL MOTORS CORP.
