Cargo Lamp Connector End View (Utility)

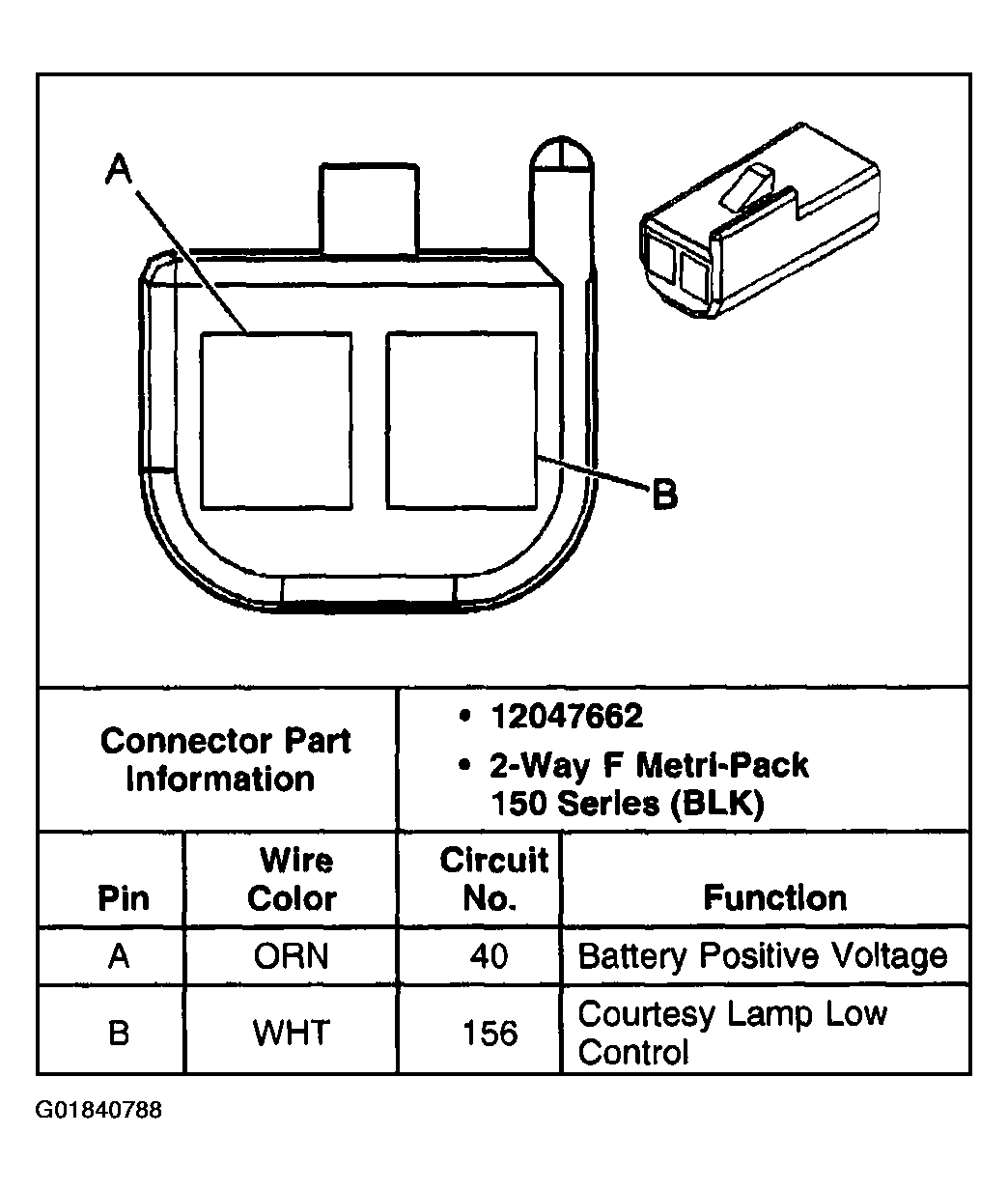

Fig 1: Cargo Lamp Connector End View (Utility)

G01840788

Courtesy of GENERAL MOTORS CORP.
