Audio Amplifier Connector End View C1

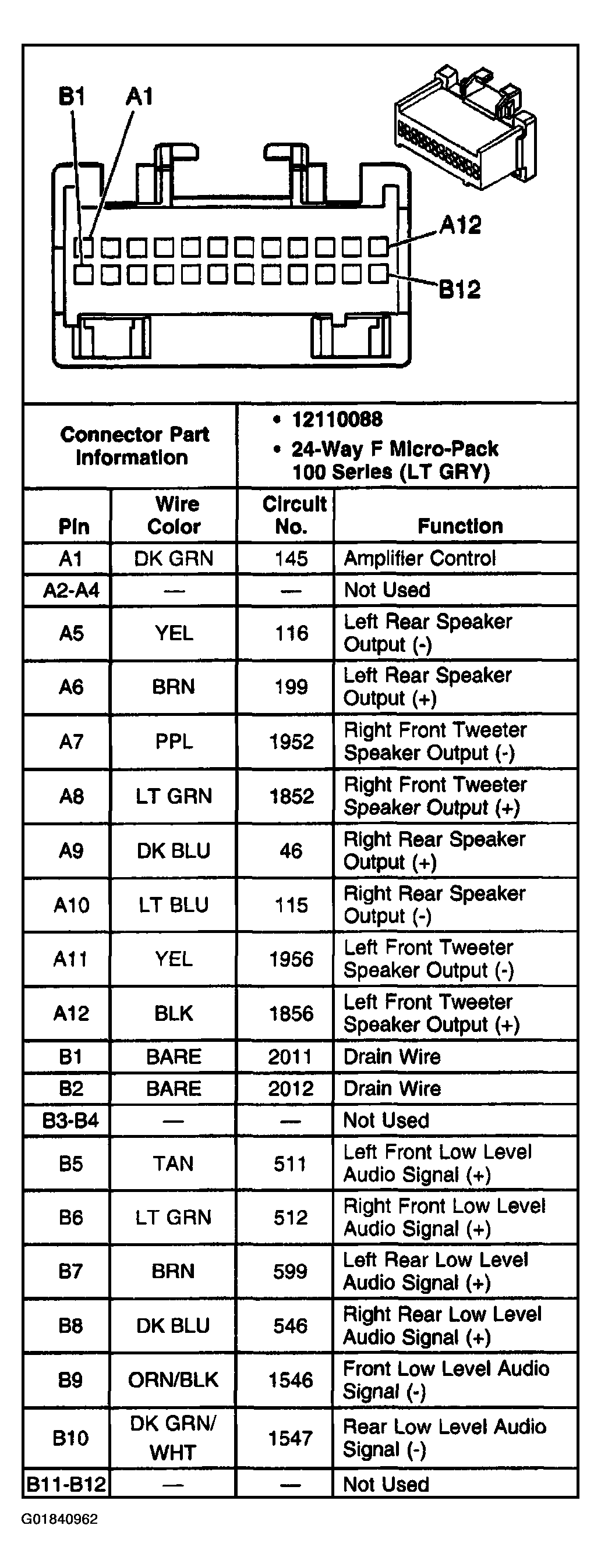

Fig 1: Audio Amplifier Connector End View C1

G01840962

Courtesy of GENERAL MOTORS CORP.
