Air Temperature Sensor Connector End View - Outside

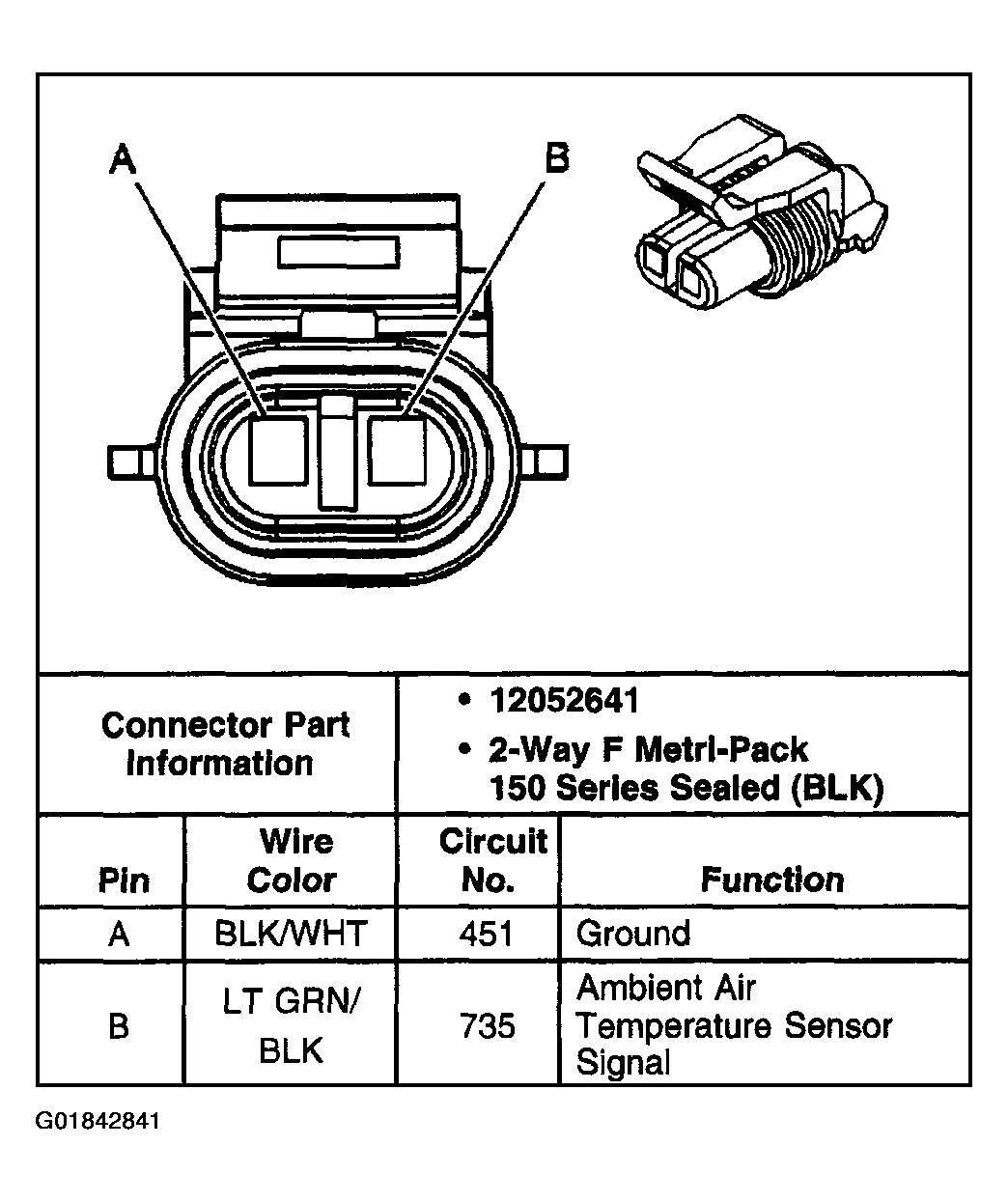

Fig 1: Air Temperature Sensor Connector End View - Outside

G01842841

Courtesy of GENERAL MOTORS CORP.
