Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air distribution duct.
  2. Disconnect the electrical connection from the recirculation actuator (1).

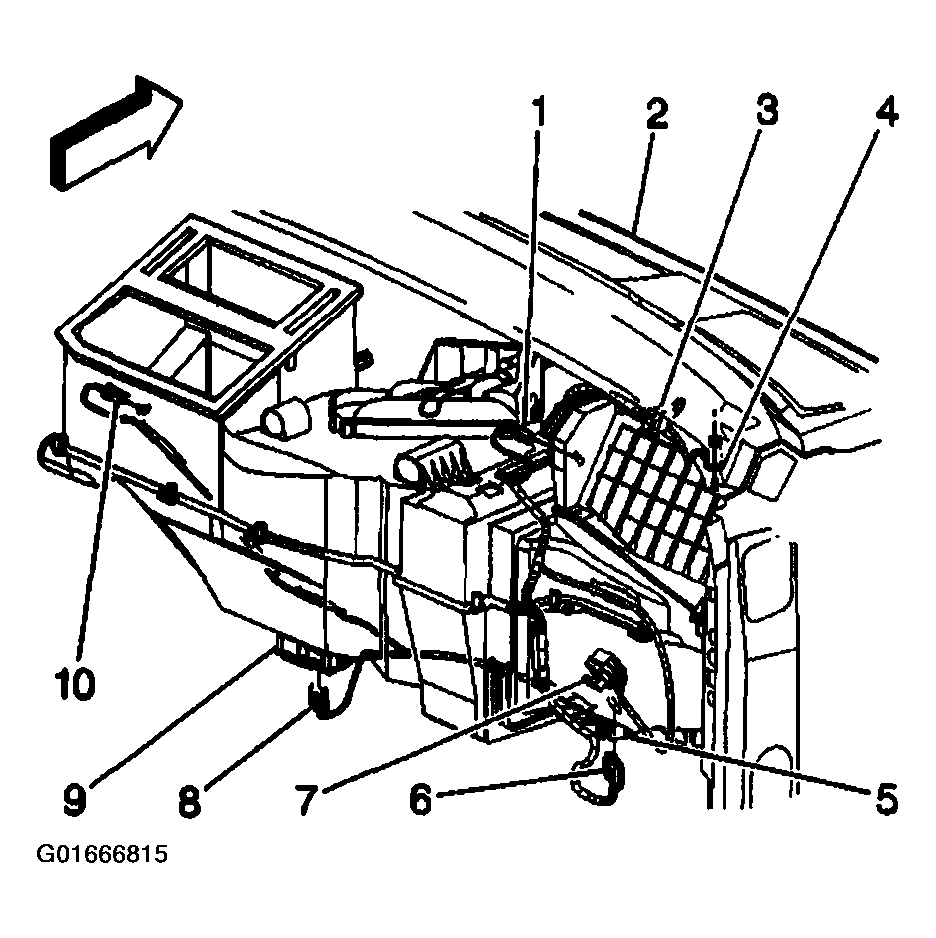

    Fig 1: Recirculation Actuator Electrical Connection
    G01666815Courtesy of GENERAL MOTORS CORP.
  3. Remove the recirculation actuator retaining screws.
  4. Remove the recirculation actuator.

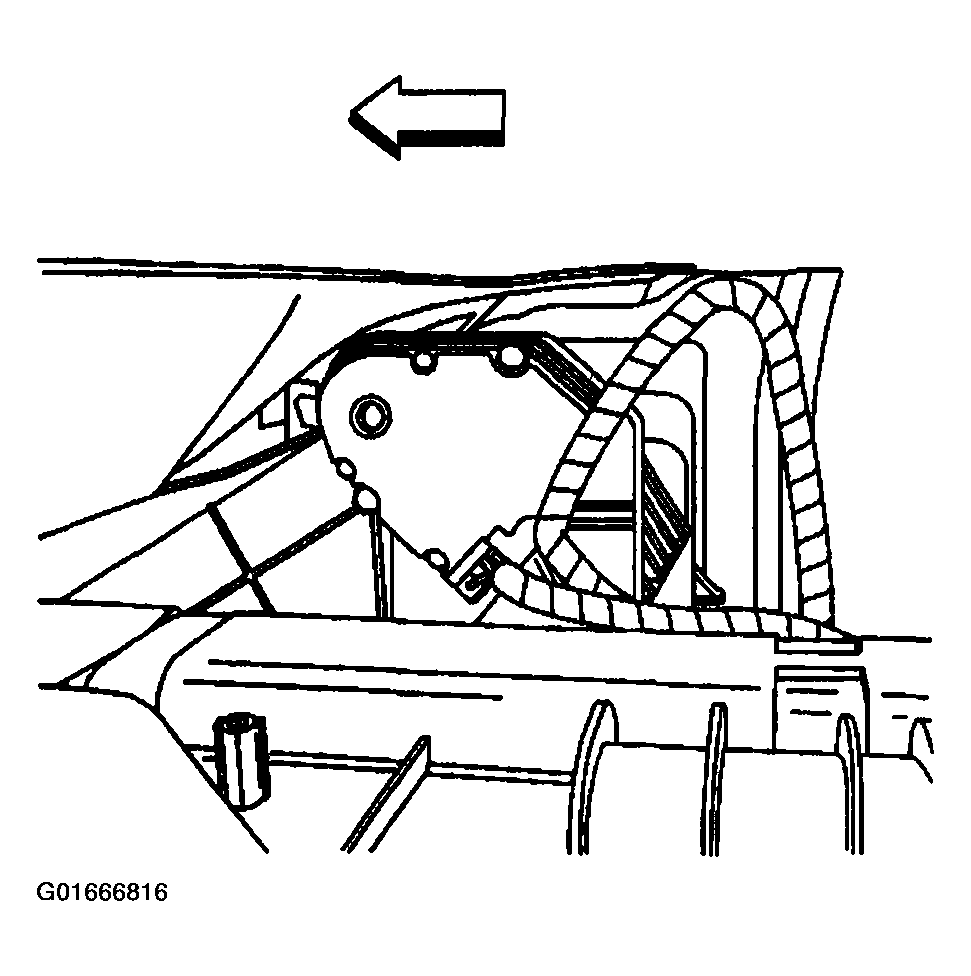

    Fig 2: Recirculation Actuator
    G01666816Courtesy of GENERAL MOTORS CORP.
