Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the underhood lamp to the hood.
  2. Install the upper retaining tab into the hood.
  3. Seat the lower retaining by pushing the underhood lamp towards the hood.
  4. Connect the underhood lamp electrical connector (1).

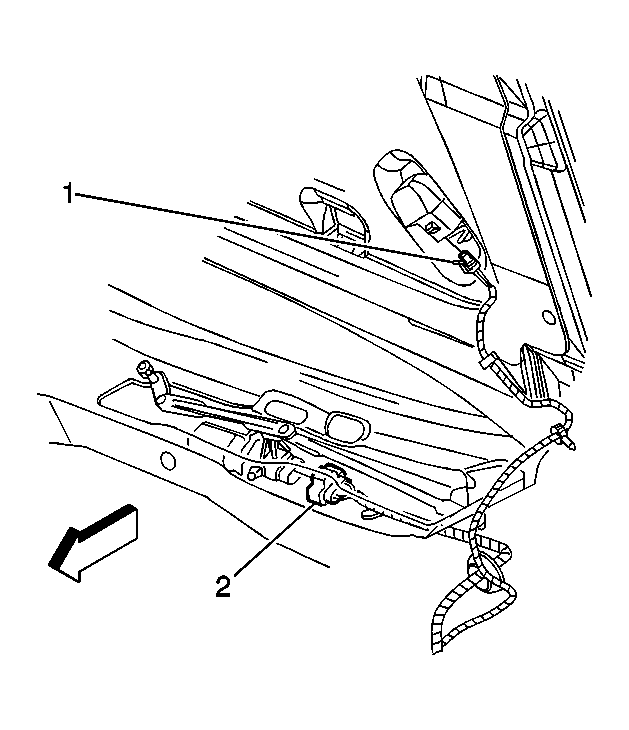

    Fig 1: Underhood Lamp Wiring Harness And Electrical Connector
    GM740912Courtesy of GENERAL MOTORS CORP.
  5. Close the hood.
