Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lens assembly to the closeout/insulator panel ensuring the tabs are fully seated.
  2. Install the bulb to the courtesy lamp socket.

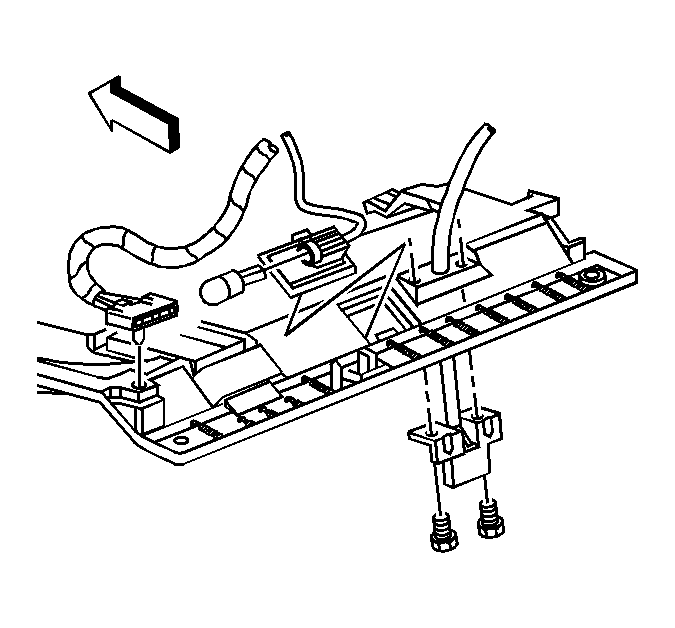

    Fig 1: Removing/Installing Courtesy Lamp Assembly, Retaining Bolts And Electrical Connector
    GM714012Courtesy of GENERAL MOTORS CORP.
  3. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in IP Gages and Console.
