Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the switch.

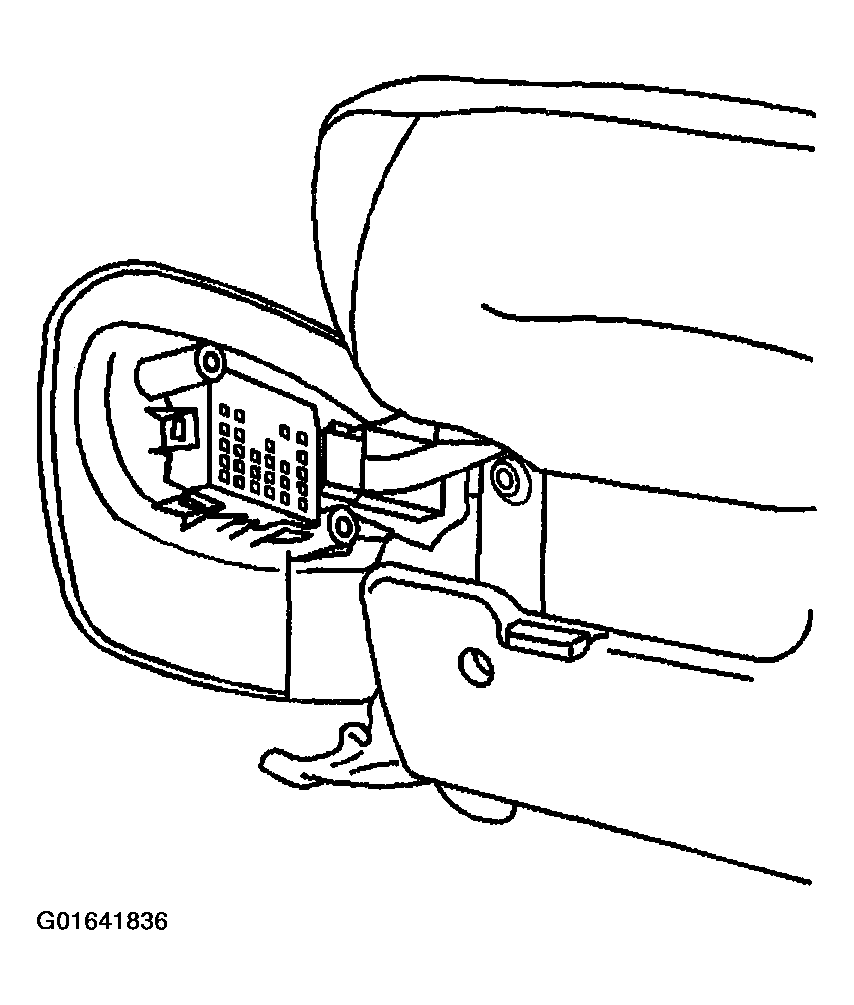

    2. Fig 1: Seat Switch Power
    G01641836Courtesy of GENERAL MOTORS CORP.
  2. Install the seat switch to the seat bezel assembly. Verify that the retaining tabs are fully seated.
  3. Install the buttons on the switch.
  4. Install the switch bezel assembly to the seat assembly. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
