Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the high mount stoplamp to the lift gate window reveal molding, ensuring the center retaining tab is fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 2 screws that retain the high mount stoplamp to the lift gate window reveal molding.

    Tighten

    Tighten the 2 retaining screws to 2.5 N.m (22 lb in).

  3. Close the liftgate window.
  4. Open the liftgate.

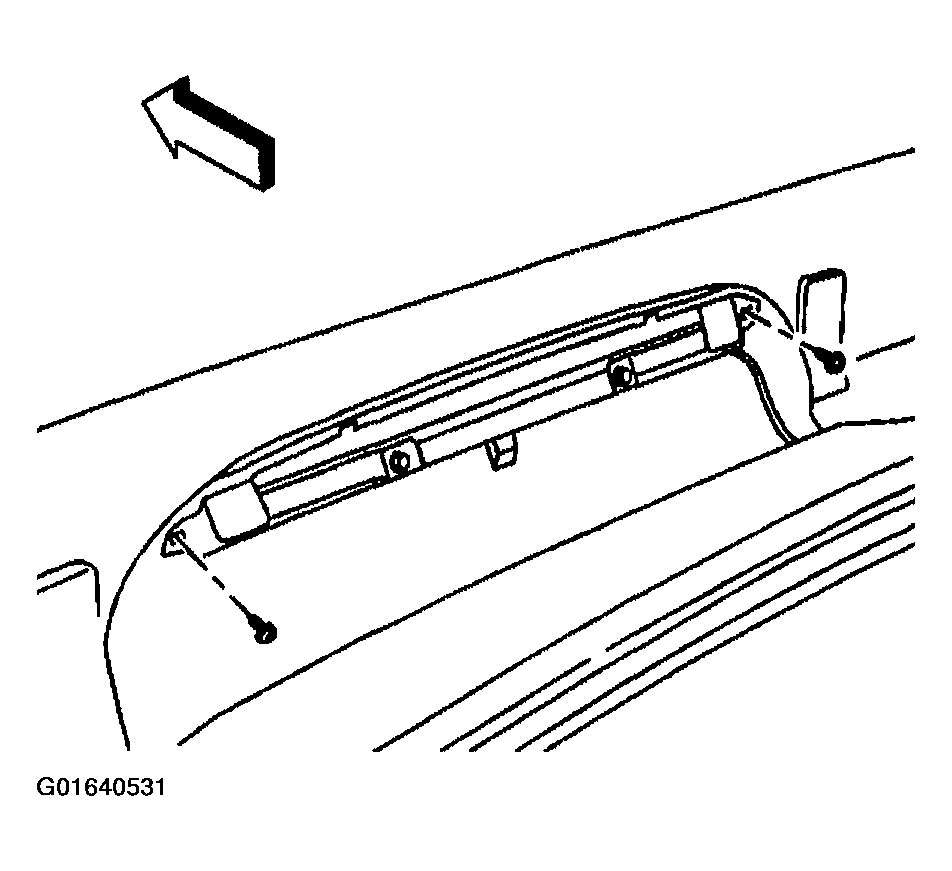

    Fig 1: Installing High Mount Stoplamp To Lift Gate Window Reveal Molding
    G01640531Courtesy of GENERAL MOTORS CORP.
  5. Install the grommet (1) to the body.
  6. Connect the high mount stoplamp electrical connector (2).
  7. Attach the rear portion of the headliner to the roof panel, by seating the 2 headliner retaining pins.
  8. Position the lift gate opening weatherstrip over the headliner.

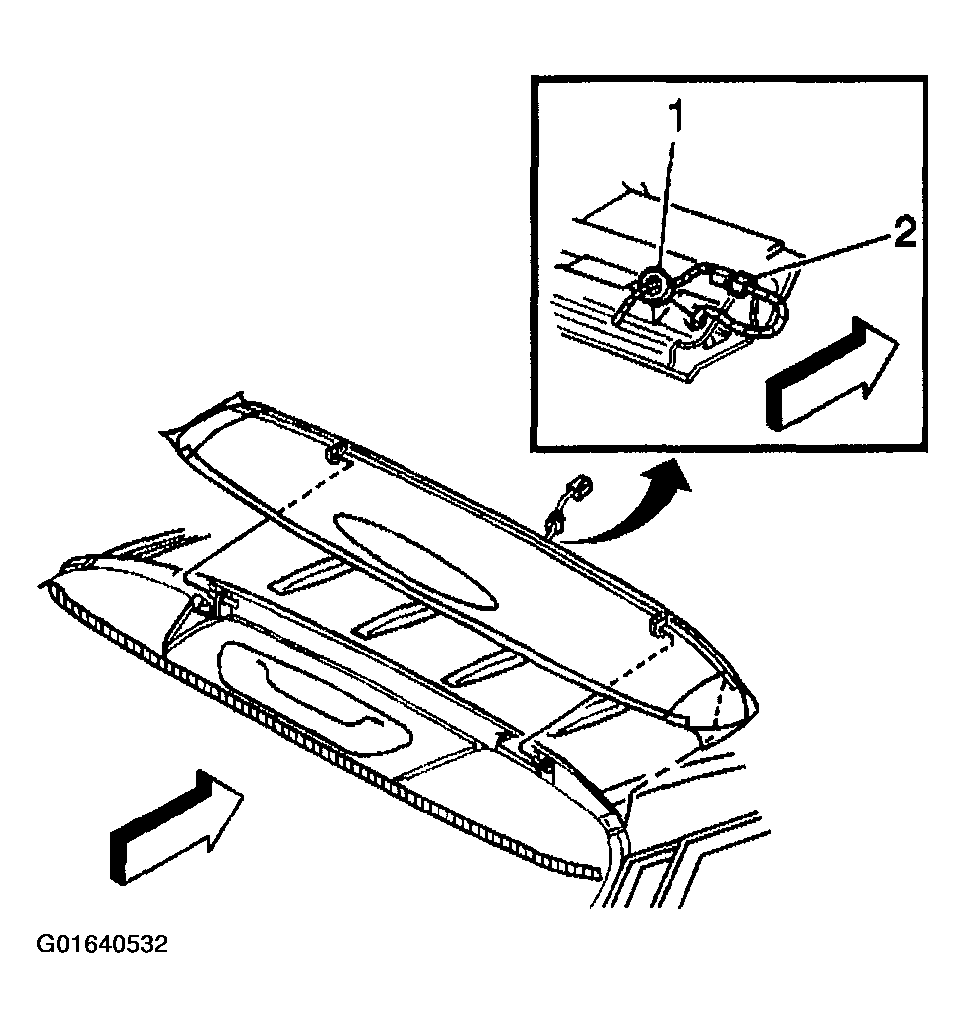

    Fig 2: Installing Grommet To Body
    G01640532Courtesy of GENERAL MOTORS CORP.
