Data Link Connector (DLC)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

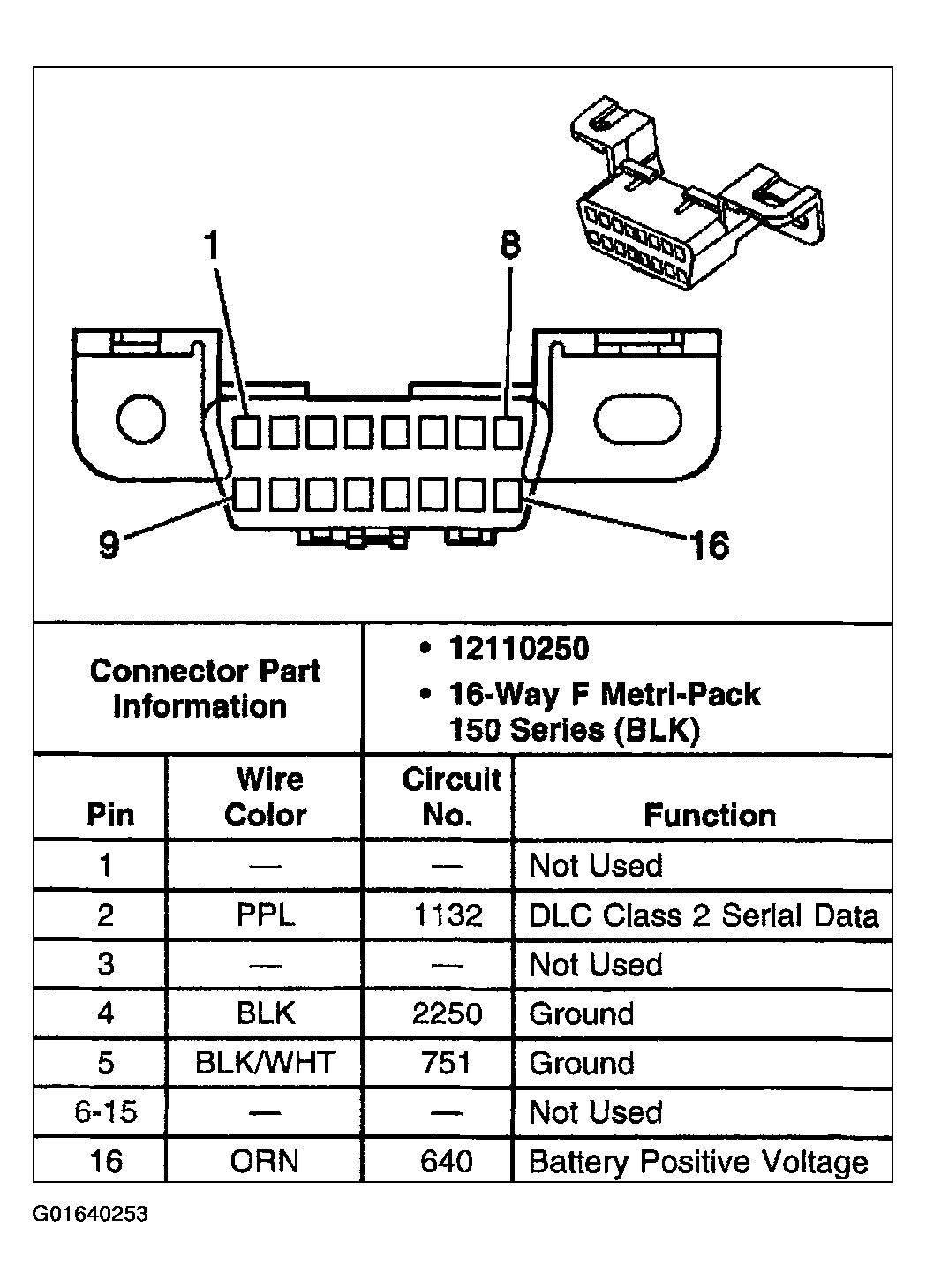

Fig 1: Identifying Data Link Connector (DLC) Connector
G01640253Courtesy of GENERAL MOTORS CORP.
