Data Link Connector (DLC) And Splice Pack SP205

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

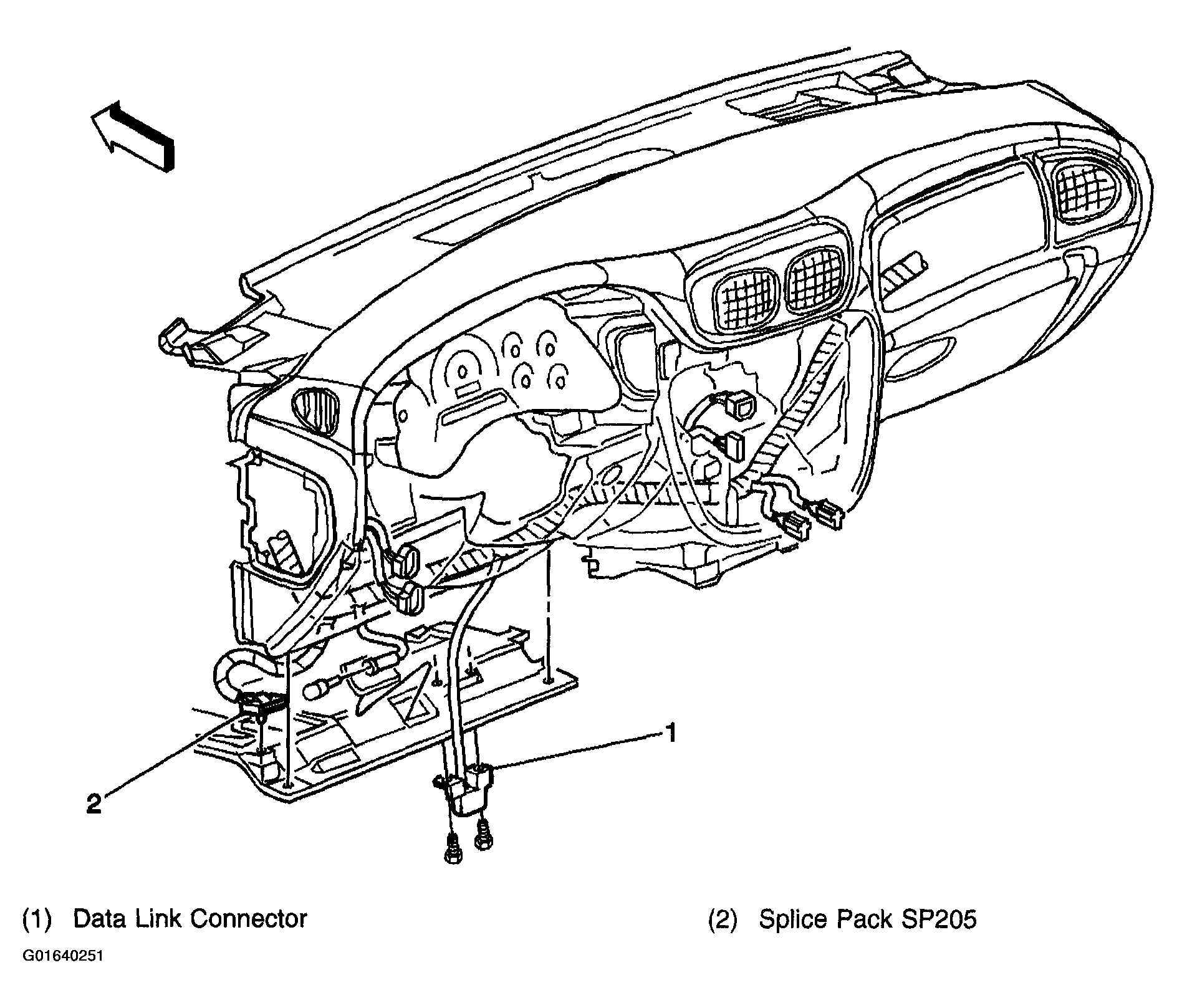

Fig 1: Locating Data Link Connector (DLC) and Splice Pack SP205 Components
G01640251Courtesy of GENERAL MOTORS CORP.
