Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inflator air switch to the vehicle.
  2. Install the rear quarter lower trim panel. Refer to INTERIOR TRIM  or INTERIOR TRIM  ,  or to INTERIOR TRIM  or INTERIOR TRIM  in Interior Trim.
  3. Raise the vehicle.
  4. Connect the inflator air switch harness to the air compressor.
  5. Lower the vehicle.

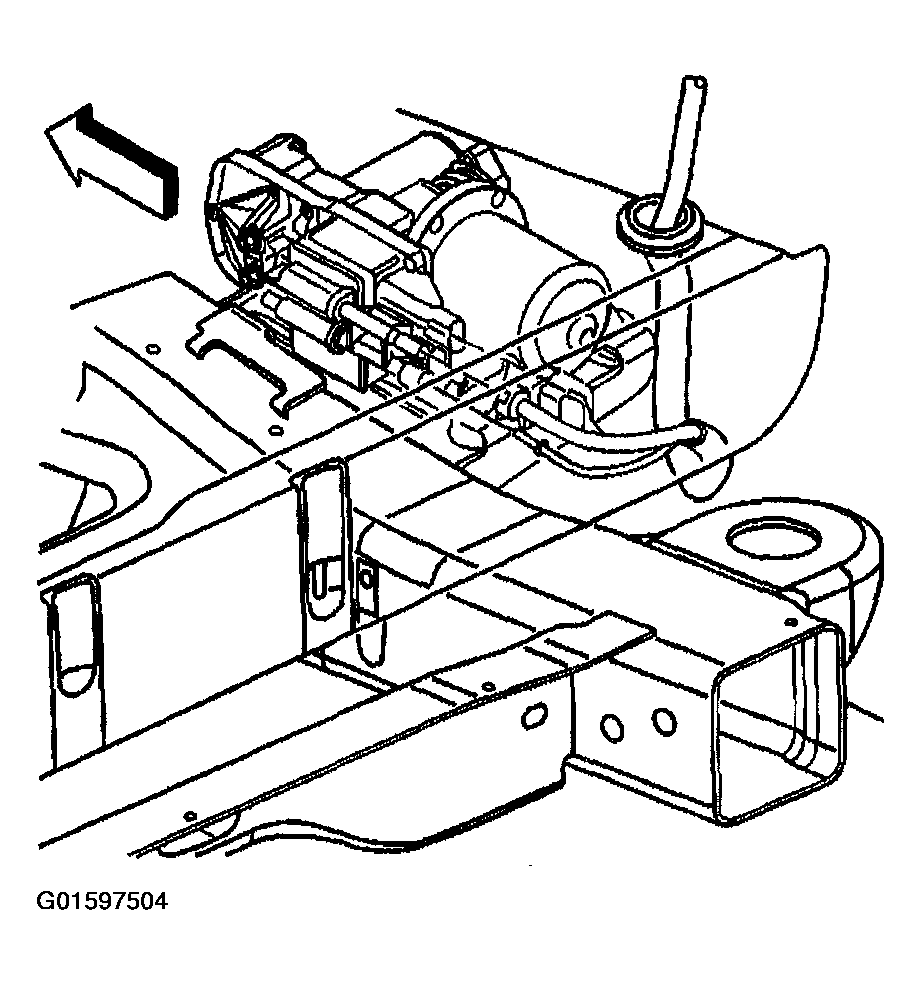

    Fig 1: Connecting Inflator Air Switch Harness To Air Compressor
    G01597504Courtesy of GENERAL MOTORS CORP.
