Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the center support (2) to the vehicle. Secure the support with the 2 bolts.

    Tighten

    Tighten the center support bolts to 15 N.m (11 lb ft).

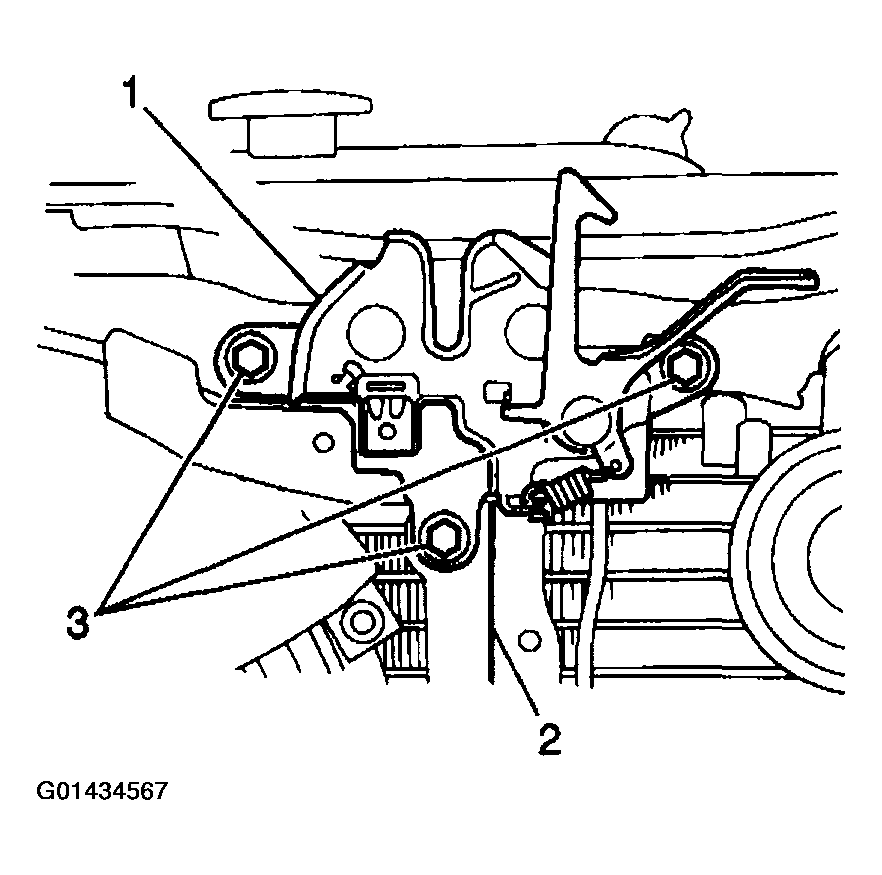

    Fig 1: Installing Center Support & Bolts To Vehicle
    G01434567Courtesy of GENERAL MOTORS CORP.
  2. Install the input air temperature sensor (2) connector to the center support (1).
  3. Install the hood secondary catch and primary latch. Refer to HOOD LATCH REPLACEMENT   .
  4. Install the upper fascia plastic retainer to the top of the center support.

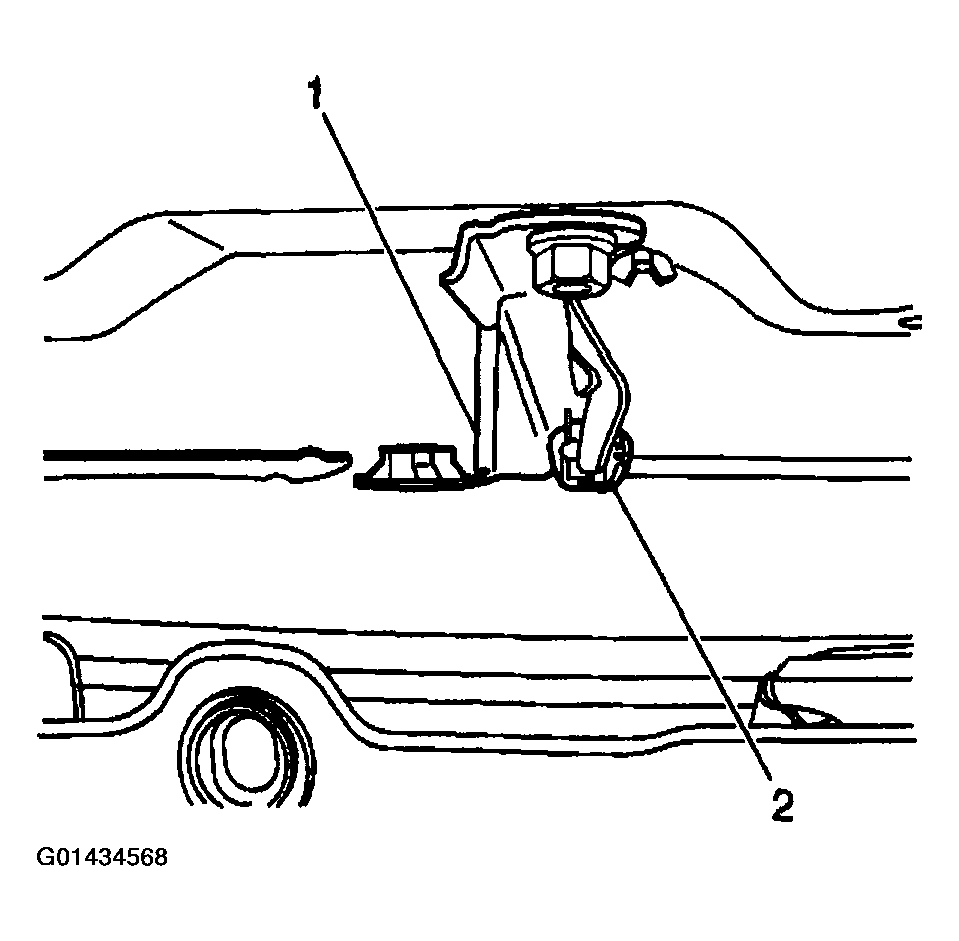

    Fig 2: Installing Input Air Temperature Sensor Connector To Center Support
    G01434568Courtesy of GENERAL MOTORS CORP.
