Theft Deterrent System Schematics (Start Relay, Starter Cut Relay, Theft Deterrent Module, Powertrain Control Module (PCM))

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

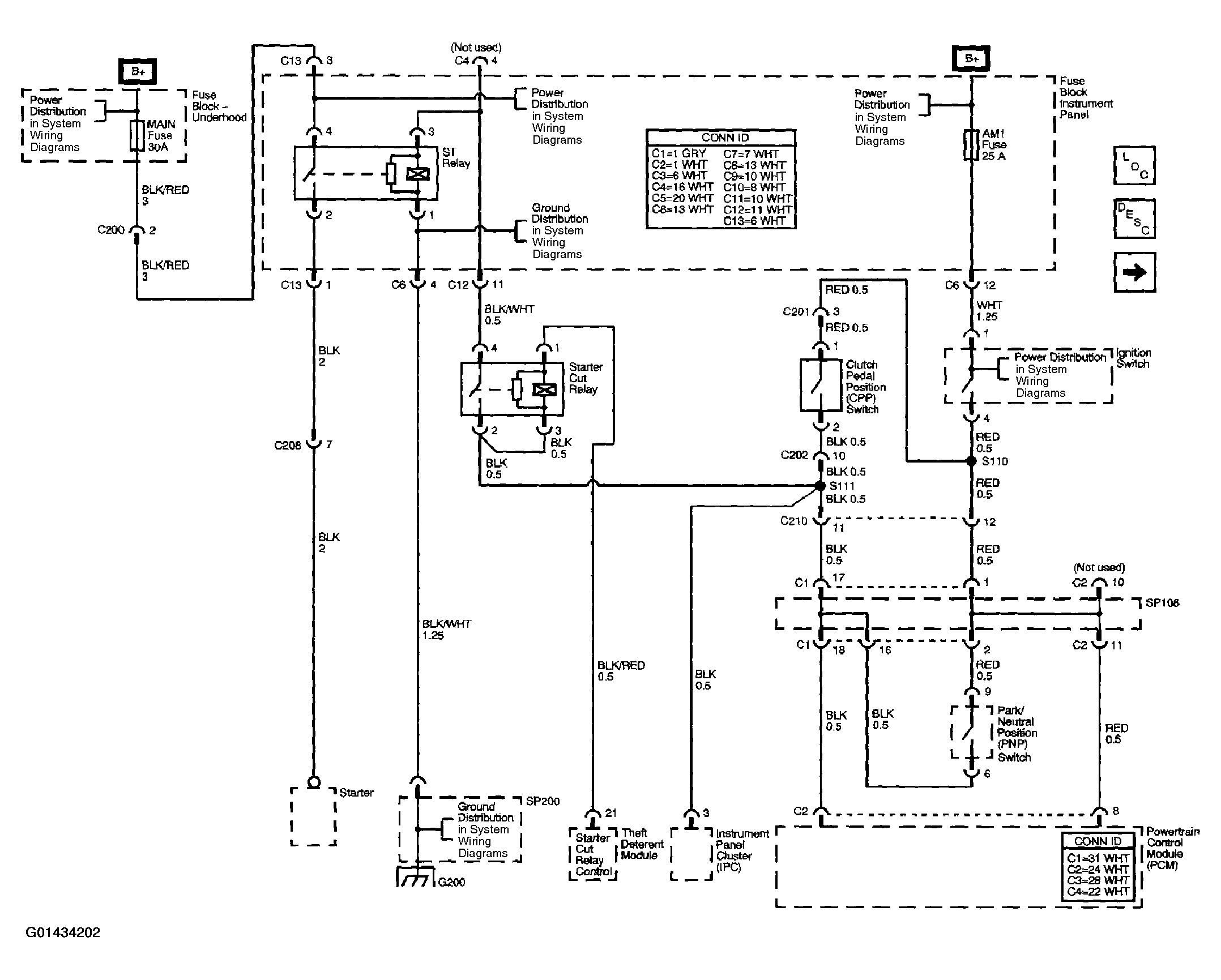

Fig 1: Theft Deterrent System Schematic Diagram (Start Relay, Starter Cut Relay, Theft Deterrent Module)

Courtesy of GENERAL MOTORS CORP.

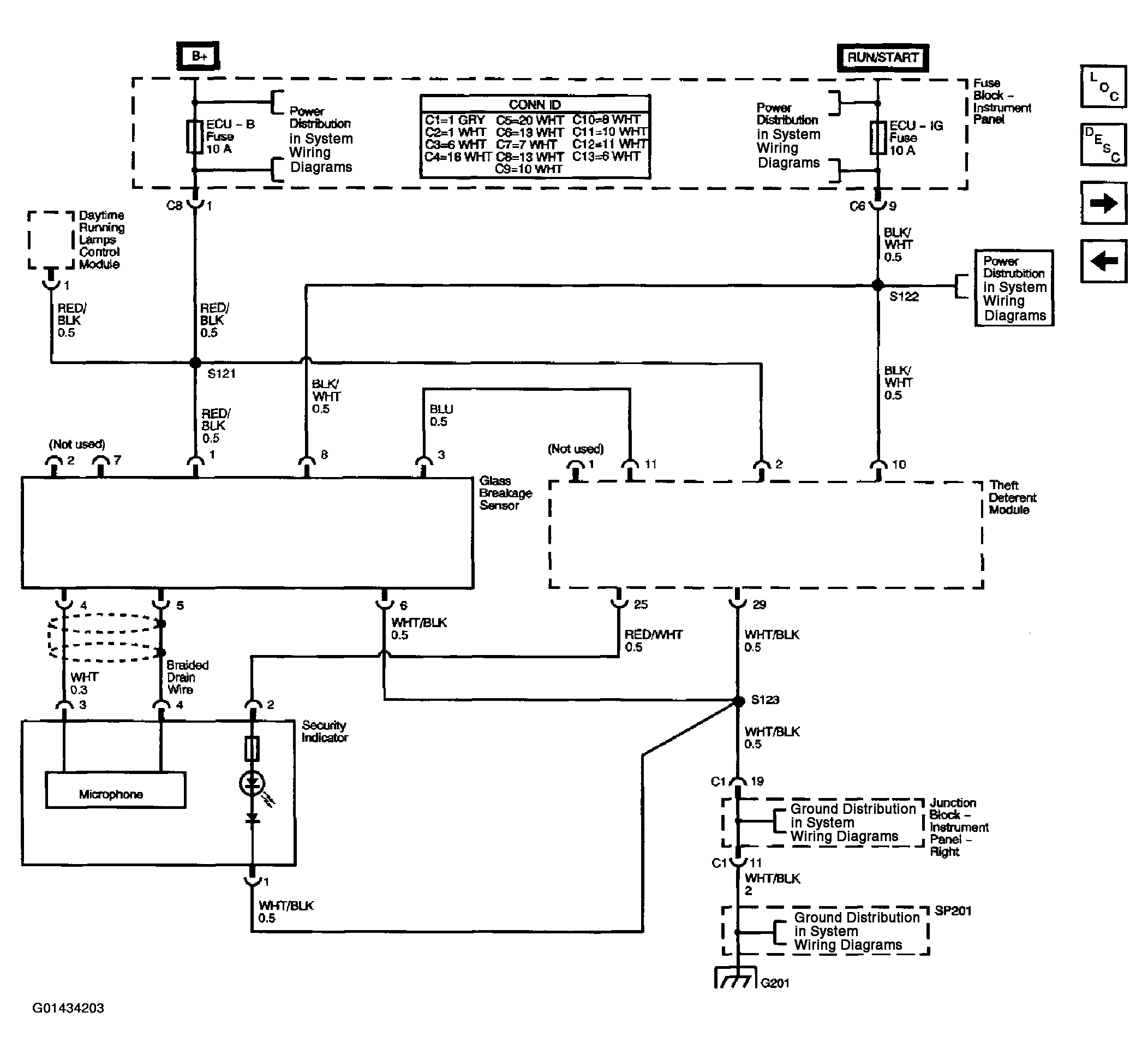

Fig 2: Theft Deterrent System Schematic Diagram (Theft Deterrent Module, Glass Breakage Sensor, Security Indicator)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Theft Deterrent System Schematic Diagram (Gauge And Door Fuses And Remote Control Door Lock Receiver)

Courtesy of GENERAL MOTORS CORP.

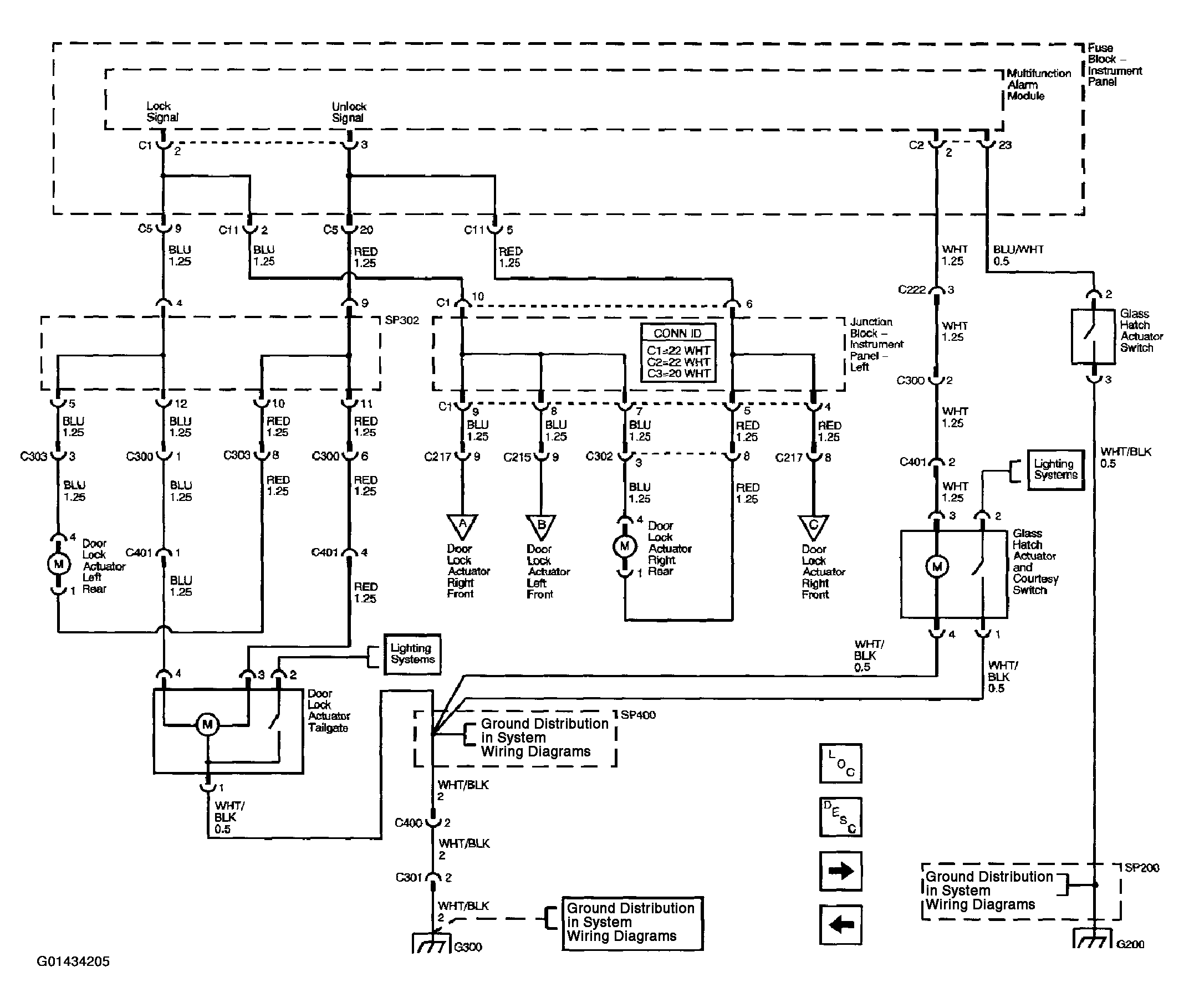

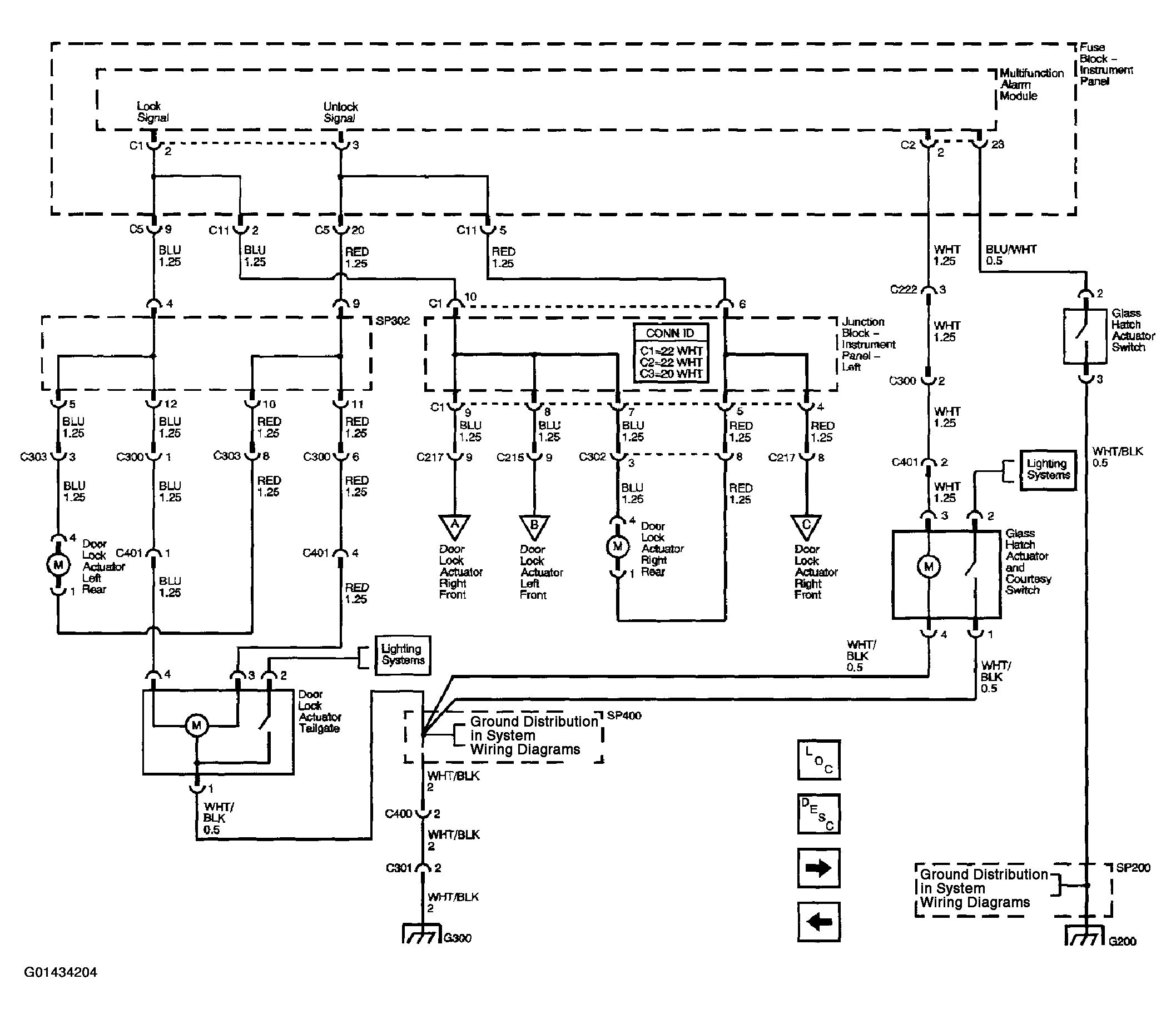

Fig 4: Theft Deterrent System Schematic Diagram (Rear Door Lock Actuators, Glass Hatch And Tailgate Actuators)

Courtesy of GENERAL MOTORS CORP.

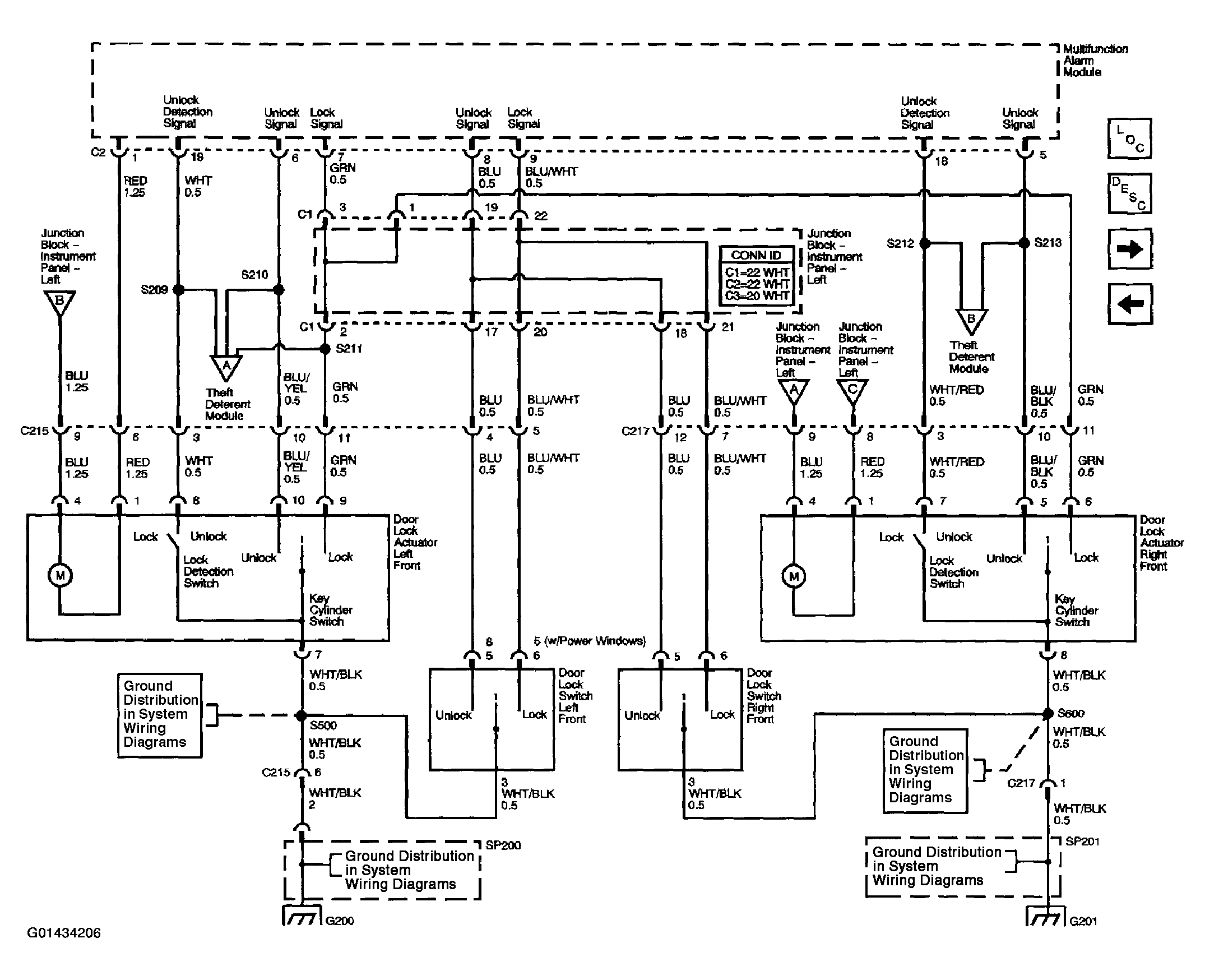

Fig 5: Theft Deterrent System Schematic Diagram (Door Lock Switches And Front Door Lock Actuators)

Courtesy of GENERAL MOTORS CORP.

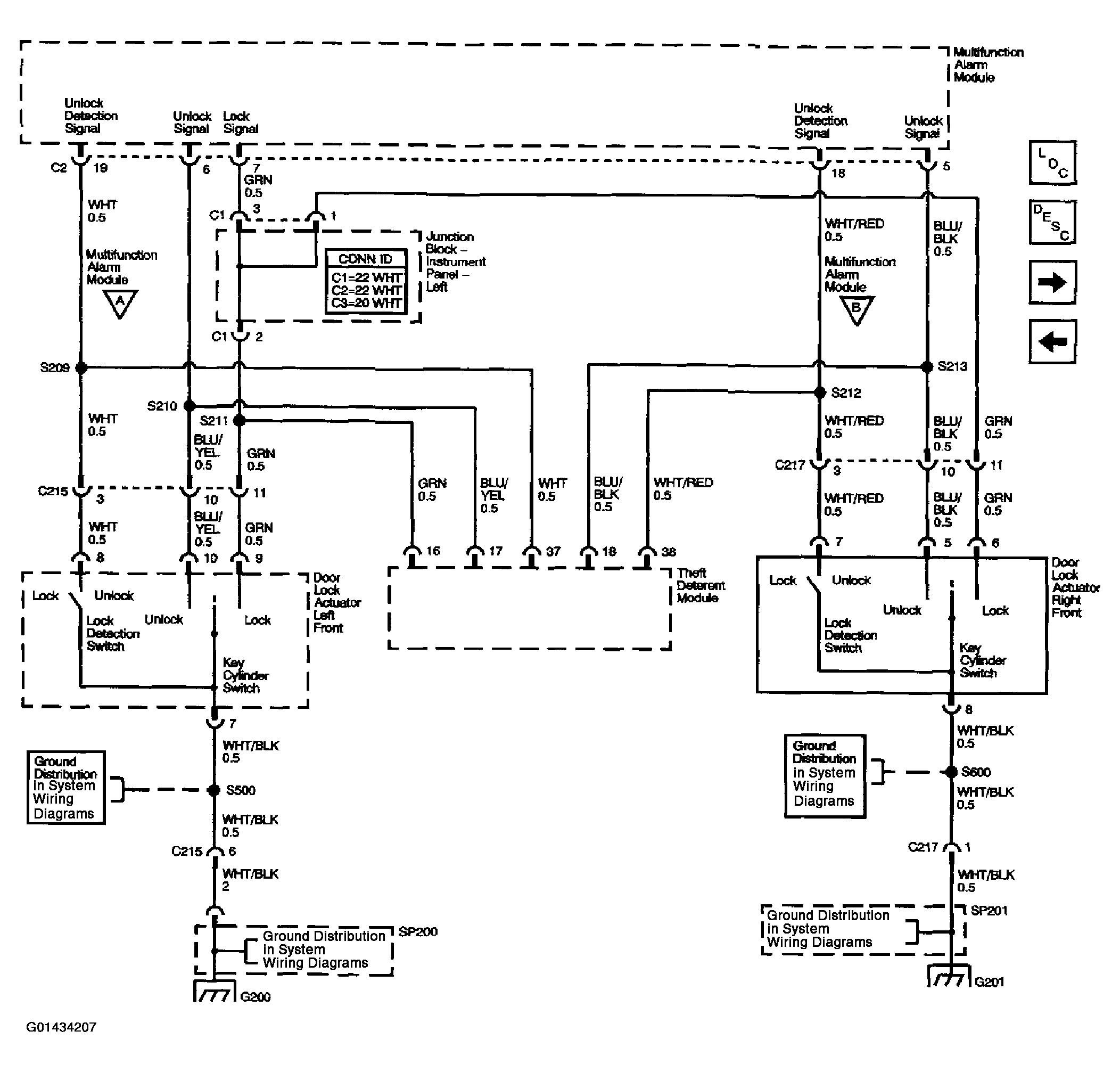

Fig 6: Theft Deterrent System Schematic Diagram (Theft Deterrent Module And Front Door Lock Actuators)

Courtesy of GENERAL MOTORS CORP.

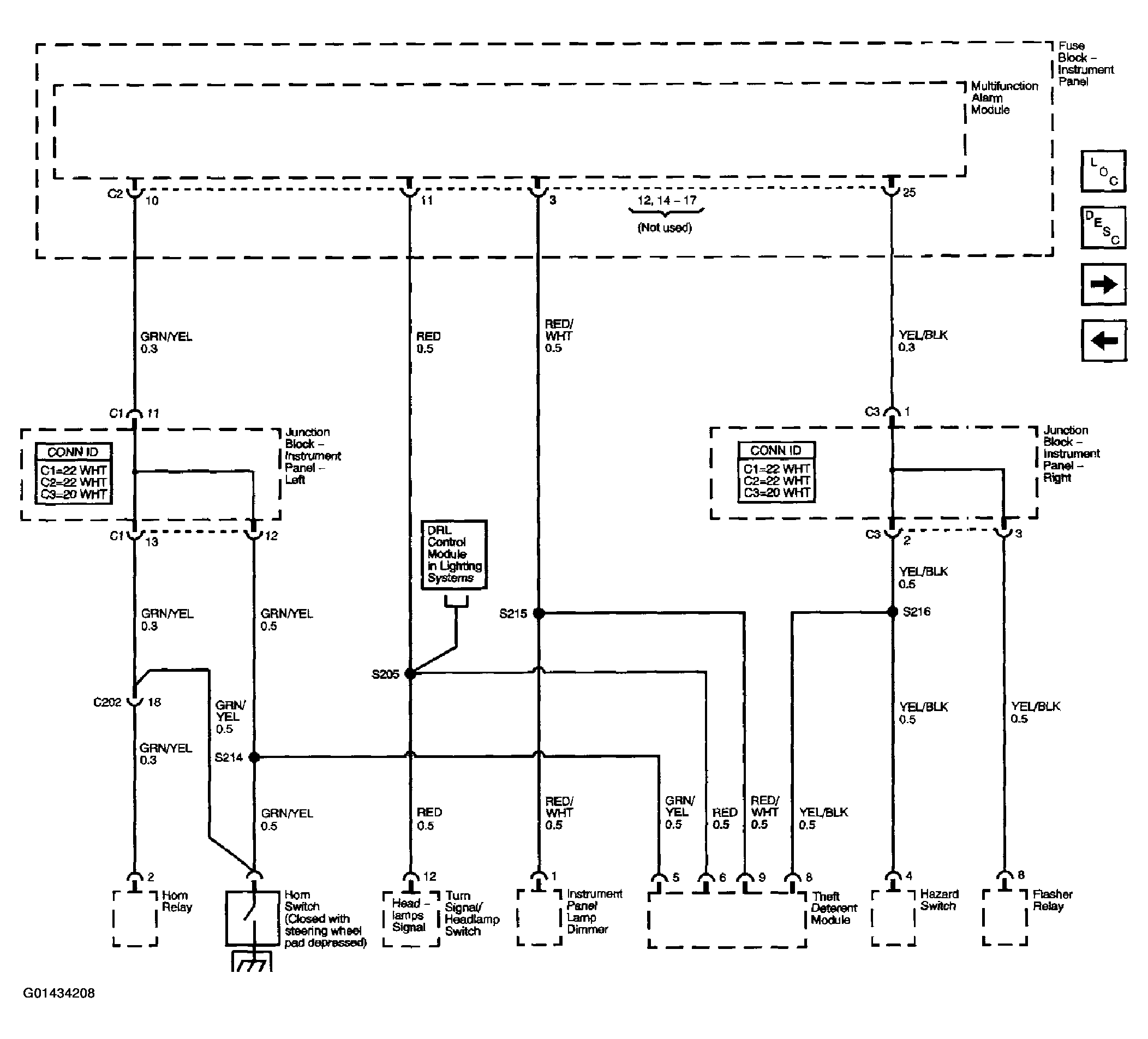

Fig 7: Theft Deterrent System Schematic Diagram (Multifunction Alarm Module, Theft Deterrent Module And Hazard Switch)

Courtesy of GENERAL MOTORS CORP.

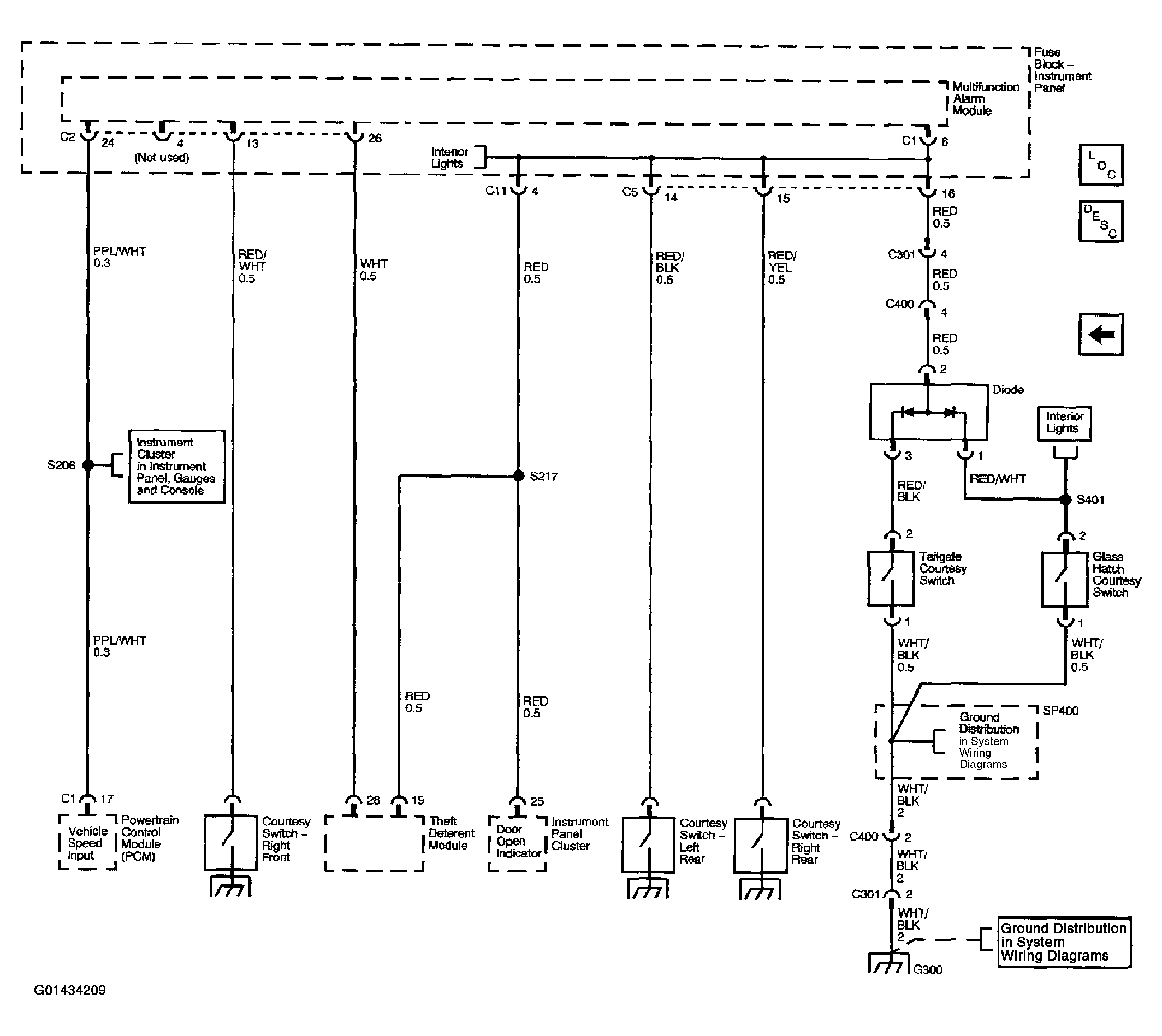

Fig 8: Theft Deterrent System Schematic Diagram (Multifunction Alarm Module And Theft Deterrent Module)

Courtesy of GENERAL MOTORS CORP.
